SQD 9007FTUB12

Limit Switch 600Vac 12Amp T+Ft +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 600Vac 12Amp T+Ft +Options

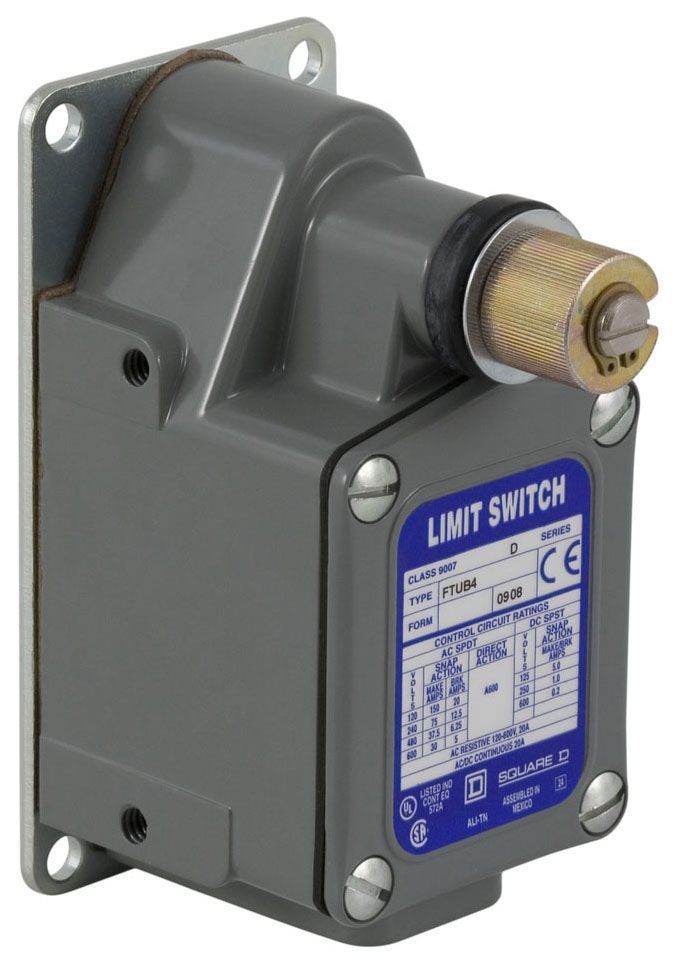

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 600Vac 12Amp T+Ft +Options

UPC:  78590190403

Part Number: 9007FTUB12

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007FTUB12
Actuator Head Type SIDE ROTARY
Additional Information ENCLOSURE TYPE FOUNDRY CASTING; CONTACT SWITCH TYPE 3 POINT UNIVERSAL; BASE PLATE TYPE RECTANGULAR END MOUNTING HOLE
Application standard foundry switch
Approval UL 508, CSA, CE
Base Plate Style style B
Base Price 0.0000
Body Material cast zinc;DIE CAST ZINC
Cable Entry NPT conduit entry 0.5-0.5 in UL 508
Catalog Number 9007FTUB12
Commerce Sector Construction Materials
Commodity Code 46140
Commodity Description Severe Duty Limit Switches
Connection Type 1/2 INCH NPT CONDUIT
Contact Configuration SPDT, 1NO-1NC
Contact Designation 600 V AC A600 NEMA rating designation
Contact Form Form Z
Contact Operation snap action
Contact Rating 600 VAC/VDC 20 AMPERE
Contacts Material silver flashed copper
Conventional Enclosed Thermal Current 20 A
CountryOfOrigin FR
DDCATEGORY 2184
Differential Travel 0 DEG
Directory CIS
Electrical Connection screw clamp terminal AWG 22...AWG 12
Enclosure NEMA 1/2/4/12/13, IP65, IP66, IP67
Families 2184
Family Description Severe Duty Limit Switches
Head Type turret head rotary lever
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 600Vac 12Amp T+Ft +Options;LIMIT SWITCH 600VAC
Item Number 90403
Long Description LIMIT FOUNDRY SWITCH, SEVERE DUTY, CONVERTIBLE SEQUENCE TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; 1/2 INCH NPT CONDUIT CONNECTION TYPE; CLOCKWISE/COUNTER CLOCKWISE, MAINTAINED OPERATION TYPE; 600 VAC/VDC 20 AMPERE CONTACT RATING
MSDS Form Number *
Maximum Actuation Speed 90 ft/min with 45 cam angle, levers only
Maximum Displacement Angle 90
Model 9007FT
Noun *
Operating Force 8 LB-INCH
Operating Temperature -10 TO 185 DEG F
Operation Type CLOCKWISE/COUNTER CLOCKWISE, MAINTAINED
Positive Opening without
Pretravel 45 DEG
Product Description Limit Switch 600Vac 12Amp T+Ft +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Rated Insulation Voltage 600 V
Repeat Accuracy 0.1 mm +/- 0.004 in
Switch Actuation CW and CCW
Switch Function SPDT-DB
Total Travel 90 DEG
Tripping Angle 0
Type SEVERE DUTY, CONVERTIBLE SEQUENCE
UNSPSC 39122213
UPC 78590190403
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007FTUB12
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
