SQD 9007FTUB4

Limit Switch 600Vac 12Amp T+Ft +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 600Vac 12Amp T+Ft +Options

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 600Vac 12Amp T+Ft +Options

UPC:  78590190401

Part Number: 9007FTUB4

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007FTUB4
Actuator Head Type Side Rotary
Additional Information Enclosure Type Foundry Casting; Contact Switch Type 3 Point Universal; Base Plate Type Rectangular End Mounting Hole
Application universal foundry switch
Approval UL 508, CSA, CE
Base Plate Style style B
Base Price 0.0000
Body Material cast zinc;Die-Cast Zinc
Body Type fixed
Cable Entry "1 entry for 1/2"" - 14 NPT ANSI B1.20.1"
Catalog Number 9007FTUB4
Commerce Sector Construction Materials
Commodity Code 46140
Commodity Description Severe Duty Limit Switches
Connection Type 1/2 Inch NPT Conduit
Contact Configuration SPDT, 2NO
Contact Designation 600 V AC A600 NEMA rating designation
Contact Form Form Z
Contact Operation snap action
Contact Rating 600 VAC/VDC 20 Ampere
Contacts Material silver flashed copper
Conventional Enclosed Thermal Current 20 A
CountryOfOrigin UKN
DDCATEGORY 2184
Differential Travel 5 Deg
Directory CIS
Electrical Connection screw clamp terminal AWG 22...AWG 12
Enclosure NEMA 1/2/4/12/13, IP65, IP66, IP67
Families 2184
Family Description Severe Duty Limit Switches
Fixing Mode by the body
Head Type rotary head
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 600Vac 12Amp T+Ft +Options;LIMIT SWITCH 600VAC
Item Number 90401
Long Description LIMIT FOUNDRY SWITCH, SEVERE DUTY, CONVERTIBLE SEQUENCE TYPE; SPDT, 2NO CONTACT CONFIGURATION; 1/2 INCH NPT CONDUIT CONNECTION TYPE; CLOCKWISE/COUNTER CLOCKWISE, SPRING RETURN OPERATION TYPE; 600 VAC/VDC 20 AMPERE CONTACT RATING; UL 508, CSA, CE APPROVAL
MSDS Form Number *
Maximum Actuation Speed 130 ft/min with 30 cam angle, levers only
Maximum Displacement Angle 89
Model 9007FT
Movement Of Operating Head rotary
Noun *
Operating Force 12 Lb-Inch
Operating Temperature -10 to 185 Deg F
Operation Type Clockwise/Counter Clockwise, Spring Return
Positive Opening without
Pretravel 6 Deg

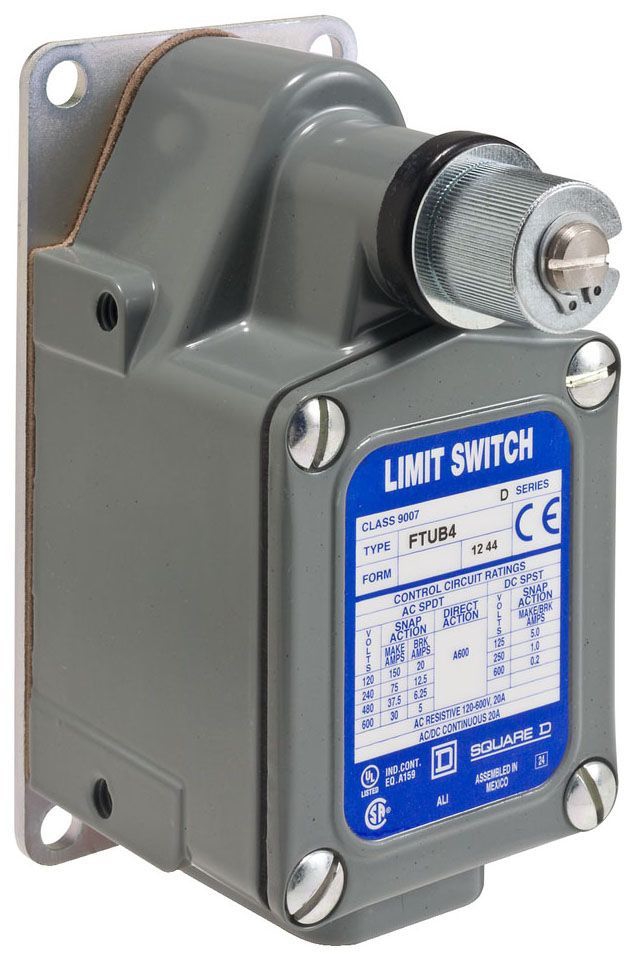

Product Description Limit Switch 600Vac 12Amp T+Ft +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Rated Insulation Voltage 600 V 3 5 A
Repeat Accuracy in linear travel of cam on 1.5 in lever arm +/- 0.004
Switch Actuation from left or right
Switch Function SPDT-DB
Total Travel 81 Deg
Tripping Angle 6
Type limit switch;Severe Duty, Convertible Sequence
Type Of Approach lateral approach
Type Of Operator spring return without operating lever
UNSPSC 39122213
UPC 78590190401
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
