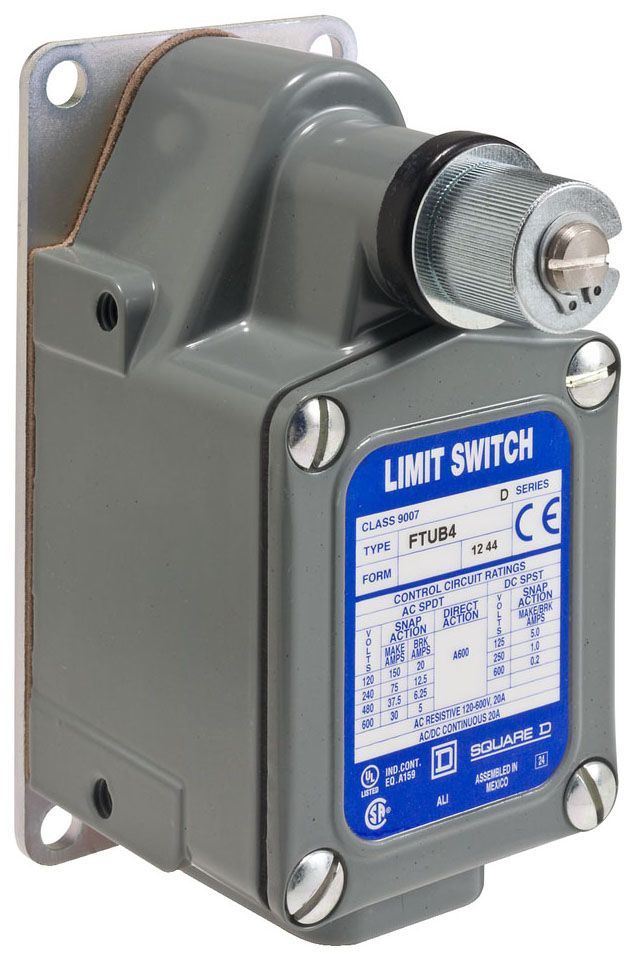

| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9007FTUB5 |
| Action | From right;CCW;Lateral approach;Snap action |
| Actuator | Spring return without operating lever |
| Actuator Head Type | SIDE ROTARY |
| Additional Information | ENCLOSURE TYPE FOUNDRY CASTING; CONTACT SWITCH TYPE 3 POINT UNIVERSAL; BASE PLATE TYPE RECTANGULAR END MOUNTING HOLE |
| Amperage Rating | 20 A |
| Application | Universal foundry switch |
| Approval | UL 508, CSA, CE |
| Base Plate Style | Style B |
| Base Price | 0.0000 |
| Body Material | Cast zinc NULL;DIE CAST ZINC |
| Body Type | Fixed |
| Brand Name | 9007 |
| Catalog Number | 9007FTUB5 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46140 |
| Commodity Description | Severe Duty Limit Switches |
| Connection | Screw-clamp terminals AWG 22...AWG 12 |
| Connection Type | 1/2 INCH NPT CONDUIT |
| Contact Configuration | Form Z;SPDT, 1NO-1NC |
| Contact Form | Form Z NULL |
| Contact Material | Silver Flashed Copper |
| Contact Rating | NEMA A600/P600;600 VAC/VDC 20 AMPERE |
| Contact Sequence Number | 5.0 |
| Contacts Material | Silver flashed copper |
| Contacts Usage | - |
| CountryOfOrigin | MX |
| DDCATEGORY | 2184 |
| Differential Travel | 12 DEG |
| Directory | CIS |
| Electrical Connection | Screw-clamp terminals AWG 22...AWG 12 NULL |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250;NEMA 1/2/4/12/13, IP65, IP66, IP67 |
| Families | 2184 |
| Family Description | Severe Duty Limit Switches |
| Function Available | - |
| Head Type | Rotary head |
| Image Location | * Image |
| Industry | ELX |
| Insulation | 600V |
| InvoiceDescription | NEMA limit switch, 9007FT, foundry switch, rotary lever arm, 20A at 120VAC, counter clockwise only, 1NO/1NC, NEMA 4, 13;LIMIT SWITCH 600VAC |
| Item Number | 80884 |
| Long Description | LIMIT FOUNDRY SWITCH, SEVERE DUTY, CONVERTIBLE SEQUENCE TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; 1/2 INCH NPT CONDUIT CONNECTION TYPE; COUNTER CLOCKWISE, SPRING RETURN OPERATION TYPE; 600 VAC/VDC 20 AMPERE CONTACT RATING; UL 508, CSA, CE APPROVAL |
| MSDS Form Number | * |
| Maximum Actuation Speed | 130 ft/min with 30 cam angle, levers only;90 ft/min with 45 cam angle, levers only |
| Minimum Torque For Tripping | 12.0 |
| Model | 9007FT |
| Mounting | By the body |
| Movement Of Operating Head | Rotary |
| Noun | * |
| Number Of Poles | 1.0 |
| Operating Force | 12 LB-INCH |
| Operating Temperature | -10-185 AF;-10 TO 185 DEG F |
| Operation Type | COUNTER CLOCKWISE, SPRING RETURN |
| Positive Opening | Without |
| Pretravel | 14 DEG |
| Product Description | Limit Switch 600Vac 30Amp T +Options |
| Product Keywords | WEBREADY |
| Product Name | Limit switch |
| ProductLine | SQD |
| Sale Per Indivisible Qty | 1 |
| Series Name | Severe duty foundry |
| Size | 3.41 in |
| Special Features | -,FIXED |
| Standard | 10 GN 10-55 HZ)IEC 60068-2-6,30 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140 |
| Sub Brand | 9007T/FT |
| Switch Function | SPDT-DB |
| Total Travel | 88 DEG |
| Tripping Angle | 14 | |
| Type | Limit switch;SEVERE DUTY, CONVERTIBLE SEQUENCE |
| UNSPSC | 39122213 |
| UPC | 78590180884 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
