| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9007G |
| Action | Lateral approach, 1 direction;On end |
| Actuator | Spring return side plunger stainless steel - |
| Additional Information | FOR ACTUATION ON END |
| Application | 9007C |
| Approval | UL, CSA, CE |
| Associated Body | 9007C |
| Associated Lever | 9007C |
| Base Price | 0.0000 |
| Brand Name | 9007 |
| Catalog Number | 9007G |
| Commerce Sector | Construction Materials |
| Commodity Code | 46170 |
| Commodity Description | Limit Switch Heads |
| Country Of Origin | Mexico |
| CountryOfOrigin | MX |
| DDCATEGORY | 2187 |
| Differential Travel | 0.03 INCH |
| Directory | CIS |
| Environmental Conditions | STANDARD ENVIRONMENT |
| Families | 2187 |
| Family Description | Limit Switch Heads |
| Head Type | Plunger head |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Limit switch head, 9007, c;LIMIT SWITCH HEAD C |
| Item Number | 50079 |

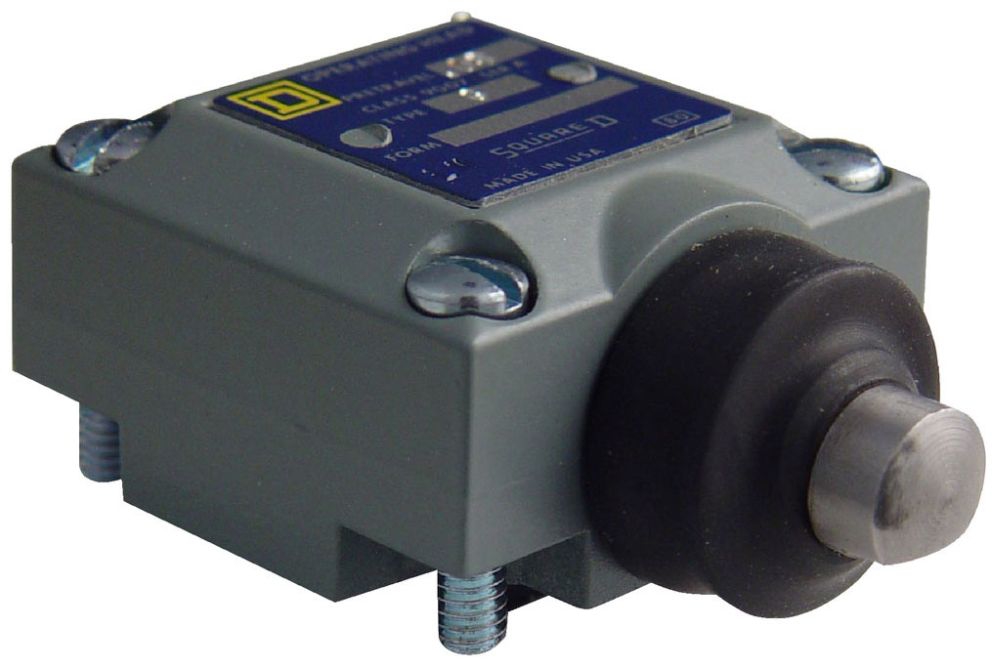

| Long Description | LIMIT SWITCH HEAD, SIDE PUSH ROD PLUNGER TYPE; 9007C SERIES LIMIT SWITCH USED ON; SPRING RETURN OPERATION TYPE; UL, CSA, CE APPROVAL; 0 TO 185 DEG F OPERATING TEMPERATURE; 4 LB OPERATING FORCE; 0.03 INCH DIFFERENTIAL TRAVEL; 0.08 INCH PRETRAVEL |
| MSDS Form Number | * |
| Model | 9007 |
| Movement Of Operating Head | Linear |
| Net Weight | 0.34 lb |
| Noun | * |
| Operating Force | 4 LB |
| Operating Temperature | 0-185 AF;0 TO 185 DEG F |
| Operation Type | SPRING RETURN |
| Positive Opening | Without |
| Pretravel | 0.08 INCH |
| Product Description | Limit Switch Head C |
| Product Keywords | WEBREADY |
| Product Name | Limit switch |
| Product Weight | 0.34 lb |
| ProductLine | SQD |
| Series Name | Heavy duty |
| Standard | UL LISTED FILE NUMBER E42259 CCN NKCR - CSA CERTIFIED FILE NUMBER LR25490 CLASS 3211-03 - CE MARKED |
| Sub Brand | 9007C |
| Total Travel | 0.25 INCH |
| Type | Limit switch head;SIDE PUSH ROD PLUNGER |
| Type Of Approach | Lateral approach, 1 direction |
| Type Of Operator | Spring return side plunger stainless steel - |
| UNSPSC | 39122213 |
| UPC | 78590150079 |
| Used On | 9007C SERIES LIMIT SWITCH |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
