SQD 9007HA1

Limit Switch Lever Arm Aw+C +Options

Page Loading...
SQUARE-D/SCHNEIDER

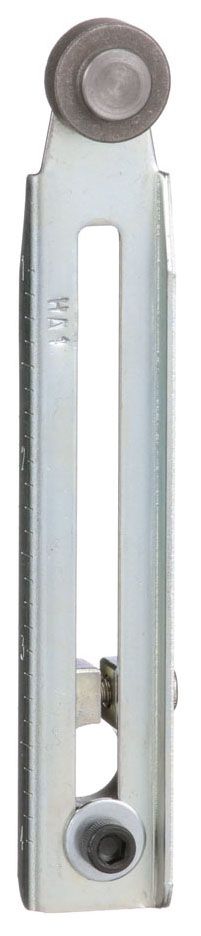

Limit Switch Lever Arm Aw+C +Options

Mouse over image to zoom, click to enlarge

Description:
Limit Switch Lever Arm Aw+C +Options

UPC:  78590174372

Part Number: 9007HA1

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007HA1
Action Lateral approach;By 30 cam
Actuator Cast zinc spring return adjustable roller lever 0.88-4 in - -
Additional Information Adjustable Length 7/8 to 4 Inch; Switch Actuation 30 Degree Cam; Operating Temperature -20 to 185 Deg F
Application 9007AW-9007C,9007C,HEAVY DUTY
Associated Complete Product 9007C;9007AW
Associated Head 9007A;9007C;9007T10;9007T5;9007B;9007N
Base Price 0.0000
Brand Name 9007
Catalog Number 9007HA1
Commerce Sector Construction Materials
Commodity Code 46160
Commodity Description Limit Switch Arms, Actuators & Operators
CountryOfOrigin MX
DDCATEGORY 2186
Directory CIS
Environmental Conditions STANDARD ENVIRONMENT
Families 2186
Family Description Limit Switch Arms, Actuators & Operators
Image Location * Image
Industry ELX
InvoiceDescription limit switch lever arm, 9007C, nonbendable adjustable lever arm, 0.625 inch diameter roller, 0.25 inch wide roller;LIMIT SWITCH LEVER ARM
Item Number 74372
Lever Material Cast Zinc
Lever Type Spring Return
Long Description LIMIT SWITCH LEVER ARM, 9007 C HEAVY DUTY LIMIT SWITCH USED ON; 1/4 INCH ROLLER WIDTH; STEEL ROLLER MATERIAL; 5/8 INCH ROLLER DIAMETER; ADJUSTABLE ROLLER TYPE; CAST ZINC LEVER MATERIAL; SPRING RETURN LEVER TYPE; FRONT ROLLER MOUNTING LOCATION
MSDS Form Number *
Movement Of Operating Head Rotary
Net Weight 0.1 lb
Noun *
Operating Temperature -20-185 AF
Positive Opening Without
Product Description Limit Switch Lever Arm Aw+C +Options
Product Keywords WEBREADY
Product Name Limit switch
Product Weight 0.1 lb
ProductLine SQD
Roller Diameter 5/8 Inch
Roller Material Steel
Roller Mounting Location Front
Roller Type Adjustable
Roller Width 1/4 Inch
Series Name Heavy duty
Size 0.88 TO 4.00 INCHES 0.63 X 0.25 INCHES
Special Features 1 steel outside roller 0.63 in 0.25 in
Sub Brand 9007C
Type Limit switch lever
Type Of Operator Cast zinc spring return adjustable roller lever 0.884in (22.35101.60mm) - -
Type Of Roller 1 steel outside roller 0.63in (16.00mm) 0.25in (6.35mm)
UNSPSC 39122213
UPC 78590174372
Used On 9007 C Heavy Duty Limit Switch
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
