SQD 9007HA26

Limit Switch Lever Arm Aw+C +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch Lever Arm Aw+C +Options

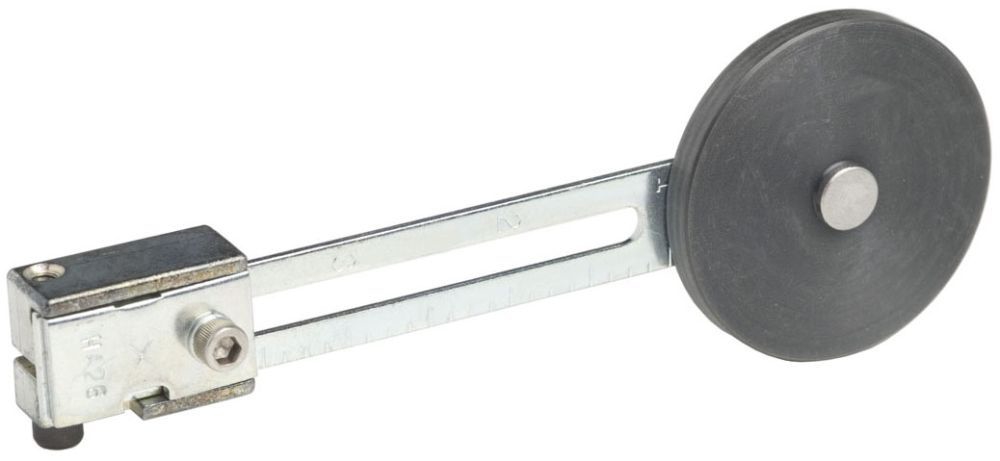

Mouse over image to zoom, click to enlarge

Description:
Limit Switch Lever Arm Aw+C +Options

UPC:  78590181873

Part Number: 9007HA26

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007HA26
Action Lateral approach;By 30 cam
Actuator Cast zinc spring return adjustable bendable roller lever 0.88-4 in - -
Additional Information Operating Temperature -20 to 185 Deg F
Application 9007AW-9007C,9007C,HEAVY DUTY
Associated Complete Product 9007C;9007AW
Associated Head 9007T10;9007C;9007N;9007A;9007T5;9007B
Base Price 0.0000
Brand Name 9007
Catalog Number 9007HA26
Commerce Sector Construction Materials
Commodity Code 46160
Commodity Description Limit Switch Arms, Actuators & Operators
Country Of Origin Mexico NULL
CountryOfOrigin MX
DDCATEGORY 2186
Directory CIS
Environmental Conditions STANDARD ENVIRONMENT
Families 2186
Family Description Limit Switch Arms, Actuators & Operators
Image Location * Image
Industry ELX
InvoiceDescription Limit switch lever, 9007, arm aw+c +options;LIMIT SWITCH LEVER ARM
Item Number 81873
Lever Length Radius 0.88 to 4 Inch
Lever Material Cast Zinc
Lever Type Adjustable, Bendable
Long Description LIMIT SWITCH LEVER ARM, 9007C HEAVY DUTY INDUSTRIAL LIMIT SWITCH USED ON; 0.88 TO 4 INCH LEVER LENGTH/RADIUS; 0.25 INCH ROLLER WIDTH; NYLON ROLLER MATERIAL; 2 INCH ROLLER DIAMETER; CAST ZINC LEVER MATERIAL; ADJUSTABLE, BENDABLE LEVER TYPE
MSDS Form Number *
Model 9007
Movement Of Operating Head Rotary
Net Weight 0.1 lb
Noun *
Operating Temperature -20-185 AF
Positive Opening Without
Product Description Limit Switch Lever Arm Aw+C +Options
Product Keywords WEBREADY
Product Name Limit switch
Product Weight 0.1 lb
ProductLine SQD
Roller Diameter 2 Inch
Roller Material Nylon
Roller Mounting Location Front
Roller Width 0.25 Inch
Series Name Heavy duty
Size 0.88 TO 4.00 INCHES 2.00 X 0.25 INCHES
Special Features 1 nylon outside roller 2 in 0.25 in
Sub Brand 9007C
Type Limit switch lever
Type Of Operator Cast zinc spring return adjustable bendable roller lever 0.884in (22.35101.60mm) - - NULL
Type Of Roller 1 nylon outside roller 2in (50.80mm) 0.25in (6.35mm) NULL
UNSPSC 39122213
UPC 78590181873
Used On 9007C Heavy Duty Industrial Limit Switch
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007HA26
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
