| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9007J |
| Action | Multi-directional approach, multi-directional approach;Any direction |
| Actuator | Spring return wobble stick acetal resin - |
| Additional Information | Contact Operation Snap Action |
| Application | 9007C |
| Approval | UL, CSA, CE |
| Associated Body | 9007C |
| Associated Lever | 9007C |
| Base Price | 0.0000 |
| Brand Name | 9007 |
| Catalog Number | 9007J |
| Commerce Sector | Construction Materials |
| Commodity Code | 46170 |
| Commodity Description | Limit Switch Heads |
| Country Of Origin | Mexico |
| CountryOfOrigin | MX |
| DDCATEGORY | 2187 |
| Differential Travel | 3 Deg |
| Directory | CIS |
| Environmental Conditions | STANDARD ENVIRONMENT |
| Families | 2187 |
| Family Description | Limit Switch Heads |
| Head Type | Multi-directional head |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Limit switch head, 9007, c;LIMIT SWITCH HEAD C |
| Item Number | 54352 |

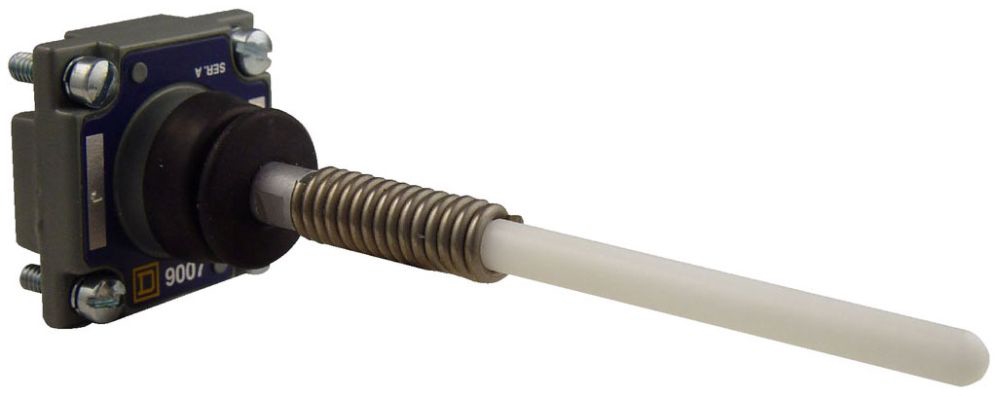

| Long Description | LIMIT SWITCH HEAD, DELRIN WOBBLE STICK TYPE; 9007C SERIES LIMIT SWITCH USED ON; SPRING RETURN OPERATION TYPE; UL, CSA, CE APPROVAL; 0 TO 185 DEG F OPERATING TEMPERATURE; 3 LB-INCH OPERATING FORCE; 3 DEG DIFFERENTIAL TRAVEL; 10 DEG PRETRAVEL |
| MSDS Form Number | * |
| Model | 9007 |
| Movement Of Operating Head | Multi-directional |
| Net Weight | 0.44 lb |
| Noun | * |
| Operating Force | 3 LB-Inch |
| Operating Temperature | 0-185 AF;0 to 185 Deg F |
| Operation Type | Spring Return |
| Positive Opening | Without |
| Pretravel | 10 Deg |
| Product Description | Limit Switch Head C |
| Product Keywords | WEBREADY |
| Product Name | Limit switch |
| Product Weight | 0.44 lb |
| ProductLine | SQD |
| Series Name | Heavy duty |
| Standard | UL LISTED FILE NUMBER E42259 CCN NKCR - CSA CERTIFIED FILE NUMBER LR25490 CLASS 3211-03 - CE MARKED |
| Sub Brand | 9007C |
| Total Travel | 90 Deg |
| Type | Limit switch head;Delrin Wobble Stick |
| Type Of Approach | Multi-directional approach, multi-directional approach |
| Type Of Operator | Spring return wobble stick acetal resin - |
| UNSPSC | 39122213 |
| UPC | 78590154352 |
| Used On | 9007C Series Limit Switch |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
