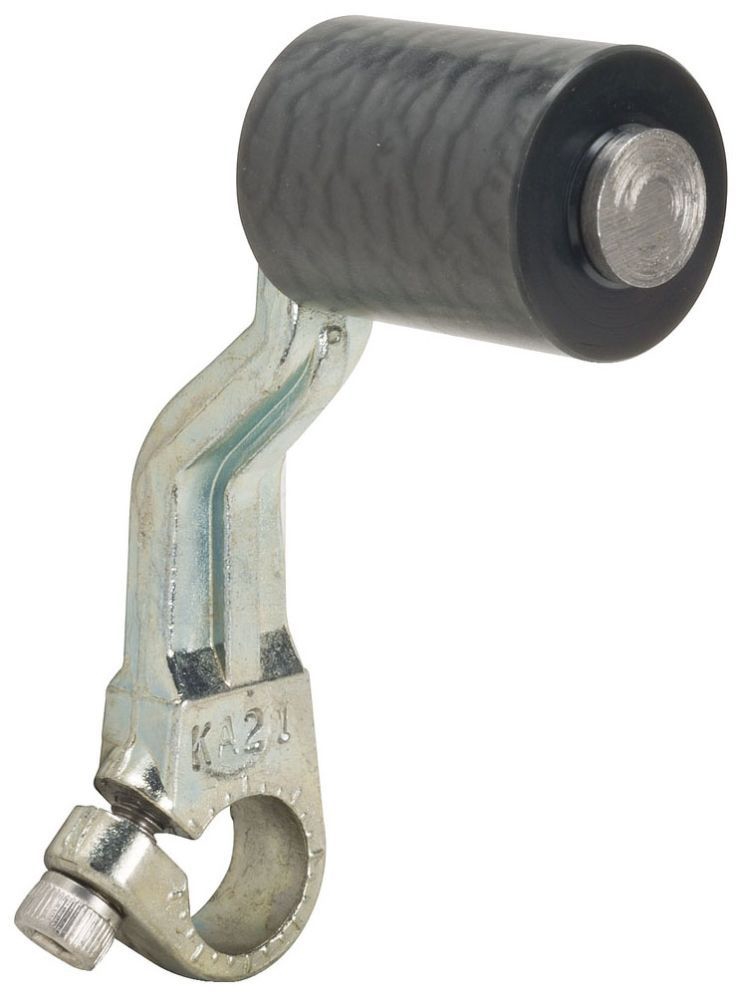

SQD 9007KA21

Limit Switch Lever Arm 2 In Type C

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch Lever Arm 2 In Type C

Mouse over image to zoom, click to enlarge

Description:
Limit Switch Lever Arm 2 In Type C

UPC:  78590181901

Part Number: 9007KA21

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007KA21
Action Lateral approach;By 30 cam
Actuator Cast zinc spring return roller lever 2-2 in 0.44 in -
Additional Information Operating Temperature -20 to 185 Deg F
Application 9007AW-9007C,9007C,HEAVY DUTY
Associated Complete Product 9007C;9007AW
Associated Head 9007B;9007N;9007A;9007C;9007T10;9007T5
Base Price 0.0000
Brand Name 9007
Catalog Number 9007KA21
Commerce Sector Construction Materials
Commodity Code 46160
Commodity Description Limit Switch Arms, Actuators & Operators
Country Of Origin Mexico NULL
CountryOfOrigin MX
DDCATEGORY 2186
Directory CIS
Environmental Conditions STANDARD ENVIRONMENT
Families 2186
Family Description Limit Switch Arms, Actuators & Operators
Image Location * Image
Industry ELX
InvoiceDescription Limit switch lever, 9007, arm aw+c +options;LIMIT SWITCH LEVER ARM
Item Number 81901
Lever Length Radius 2 Inch
Lever Material Cast Zinc
Lever Type Offset
Long Description LIMIT SWITCH LEVER ARM, 9007C HEAVY DUTY INDUSTRIAL LIMIT SWITCH USED ON; 2 INCH LEVER LENGTH/RADIUS; 1 INCH ROLLER WIDTH; NYLON ROLLER MATERIAL; 0.75 INCH ROLLER DIAMETER; CAST ZINC LEVER MATERIAL; OFFSET LEVER TYPE; FRONT ROLLER MOUNTING LOCATION
MSDS Form Number *
Model 9007
Movement Of Operating Head Rotary
Net Weight 0.1 lb
Noun *
Operating Temperature -20-185 AF
Positive Opening Without
Product Description Limit Switch Lever Arm 2 In Type C
Product Keywords WEBREADY
Product Name Limit switch
Product Weight 0.1 lb
ProductLine SQD
Roller Diameter 0.75 Inch
Roller Material Nylon
Roller Mounting Location Front
Roller Width 1 Inch
Series Name Heavy duty
Size 2.00 INCHES 0.75 X 1.00 INCHES
Special Features 1 nylon outside roller 0.75 in 1 in
Sub Brand 9007C
Type Limit switch lever
Type Of Operator Cast zinc spring return roller lever 2in (50.80mm) 0.44 in -
Type Of Roller 1 nylon outside roller 0.75in (19.05mm) 1in (25.40mm)
UNSPSC 39122213
UPC 78590181901
Used On 9007C Heavy Duty Industrial Limit Switch
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007KA21
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
