SQD 9007MA15

Limit Switch Lever Arm Aw+C +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch Lever Arm Aw+C +Options

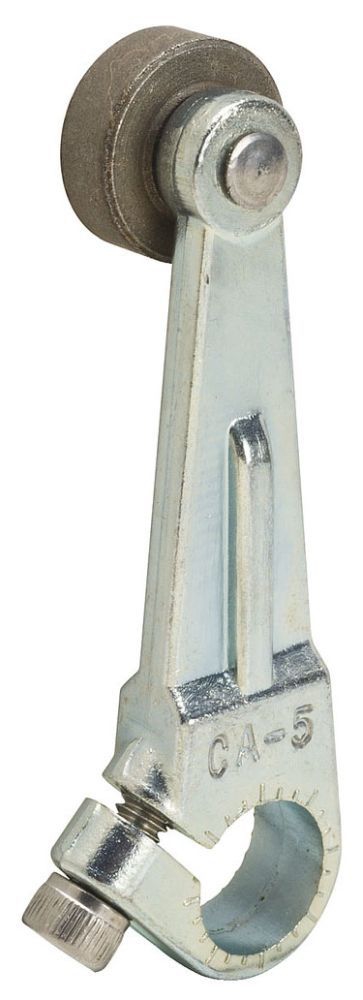

Mouse over image to zoom, click to enlarge

Description:
Limit Switch Lever Arm Aw+C +Options

UPC:  78590181973

Part Number: 9007MA15

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007MA15
Action Lateral approach;By 30 cam
Actuator Cast zinc spring return roller lever 1.5-1.5 in - -
Application 9007AW-9007C,9007C,HEAVY DUTY
Associated Complete Product 9007AW;9007C
Associated Head 9007T5;9007N;9007T10;9007B;9007A;9007C
Base Price 0.0000
Brand Name 9007
Catalog Number 9007MA15
Commerce Sector Construction Materials
Commodity Code 46160
Commodity Description Limit Switch Arms, Actuators & Operators
Country Of Origin Mexico NULL
CountryOfOrigin MX
DDCATEGORY 2186
Directory CIS
Environmental Conditions STANDARD ENVIRONMENT
Families 2186
Family Description Limit Switch Arms, Actuators & Operators
Image Location * Image
Industry ELX
InvoiceDescription Limit switch lever, 9007, arm aw+c +options;LIMIT SWITCH LEVER ARM
Item Number 81973
Lever Length Radius 1.5 INCH
Lever Material CAST ZINC
Long Description LIMIT SWITCH LEVER ARM, 9007C HEAVY DUTY INDUSTRIAL LIMIT SWITCH USED ON; 1.5 INCH LEVER LENGTH/RADIUS; 0.25 INCH ROLLER WIDTH; OIL IMPREGNATED SINTERED IRON ROLLER MATERIAL; 0.75 INCH ROLLER DIAMETER; STANDARD ROLLER TYPE; CAST ZINC LEVER MATERIAL
MSDS Form Number *
Model 9007
Movement Of Operating Head Rotary
Net Weight 0.1 lb
Noun *
Operating Temperature -20-185 AF
Positive Opening Without
Product Description Limit Switch Lever Arm Aw+C +Options
Product Keywords WEBREADY
Product Name Limit switch
Product Weight 0.1 lb
ProductLine SQD
Roller Diameter 0.75 INCH
Roller Material OIL IMPREGNATED SINTERED IRON
Roller Mounting Location BACK
Roller Type STANDARD
Roller Width 0.25 INCH
Series Name Heavy duty
Size 1.50 INCHES 0.75 X 0.25 INCHES
Special Features 1 steel inside roller 0.75 in 0.25 in
Sub Brand 9007C
Type Limit switch lever
Type Of Operator Cast zinc spring return roller lever 1.5in (38.10mm) - -
Type Of Roller 1 steel inside roller 0.75in (19.05mm) 0.25in (6.35mm)
UNSPSC 39122213
UPC 78590181973
Used On 9007C HEAVY DUTY INDUSTRIAL LIMIT SWITCH
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
