SQD 9007MA17

Limit Switch Lever Arm Aw+C +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch Lever Arm Aw+C +Options

Mouse over image to zoom, click to enlarge

Description:

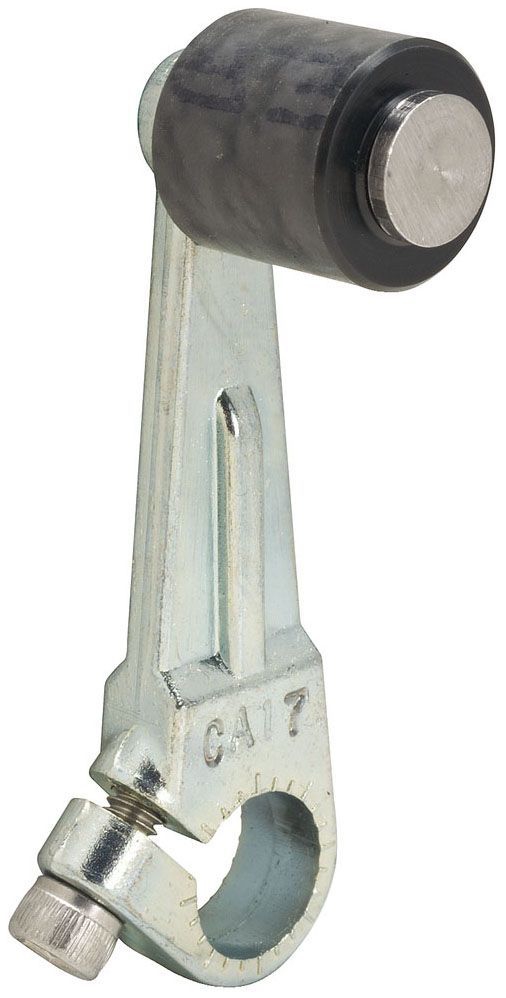

Limit Switch Lever Arm Aw+C +Options

UPC:  78590178341

Part Number: 9007MA17

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007MA17
Action Lateral approach;By 30 cam
Actuator Cast zinc spring return roller lever 1.5-1.5 in - -
Additional Information OPERATING TEMPERATURE -20 TO 185 DEG F
Application 9007AW-9007C,9007C,HEAVY DUTY
Associated Complete Product 9007C;9007AW
Associated Head 9007T10;9007C;9007A;9007T5;9007N;9007B
Base Price 0.0000
Brand Name 9007
Catalog Number 9007MA17
Commerce Sector Construction Materials
Commodity Code 46160
Commodity Description Limit Switch Arms, Actuators & Operators
Country Of Origin Mexico NULL
CountryOfOrigin MX
DDCATEGORY 2186
Directory CIS
Environmental Conditions STANDARD ENVIRONMENT
Families 2186
Family Description Limit Switch Arms, Actuators & Operators
Image Location * Image
Industry ELX
InvoiceDescription Limit switch lever, 9007, arm aw+c +options;LIMIT SWITCH LEVER ARM
Item Number 78341
Lever Length Radius 1.5 INCH
Lever Material CAST ZINC
Long Description LIMIT SWITCH LEVER ARM, 9007C HEAVY DUTY INDUSTRIAL LIMIT SWITCH USED ON; 1.5 INCH LEVER LENGTH/RADIUS; 0.63 INCH ROLLER WIDTH; NYLON ROLLER MATERIAL; 0.63 INCH ROLLER DIAMETER; STANDARD ROLLER TYPE; CAST ZINC LEVER MATERIAL
MSDS Form Number *
Model 9007
Movement Of Operating Head Rotary
Net Weight 0.1 lb
Noun *
Operating Temperature -20-185 AF
Positive Opening Without
Product Description Limit Switch Lever Arm Aw+C +Options
Product Keywords WEBREADY
Product Name Limit switch
Product Weight 0.1 lb
ProductLine SQD
Roller Diameter 0.63 INCH
Roller Material NYLON
Roller Mounting Location FRONT
Roller Type STANDARD
Roller Width 0.63 INCH
Series Name Heavy duty
Size 1.50 INCHES 0.63 X 0.63 INCHES
Special Features 1 nylon outside roller 0.63 in 0.63 in
Sub Brand 9007C
Type Limit switch lever
Type Of Operator Cast zinc spring return roller lever 1.5in (38.10mm) - -
Type Of Roller 1 nylon outside roller 0.63in (16.00mm) 0.63in (16.00mm)
UNSPSC 39122213
UPC 78590178341
Used On 9007C HEAVY DUTY INDUSTRIAL LIMIT SWITCH
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007MA17
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
