SQD 9007MA3

Limit Switch Lever Arm Aw+C +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch Lever Arm Aw+C +Options

Mouse over image to zoom, click to enlarge

Description:

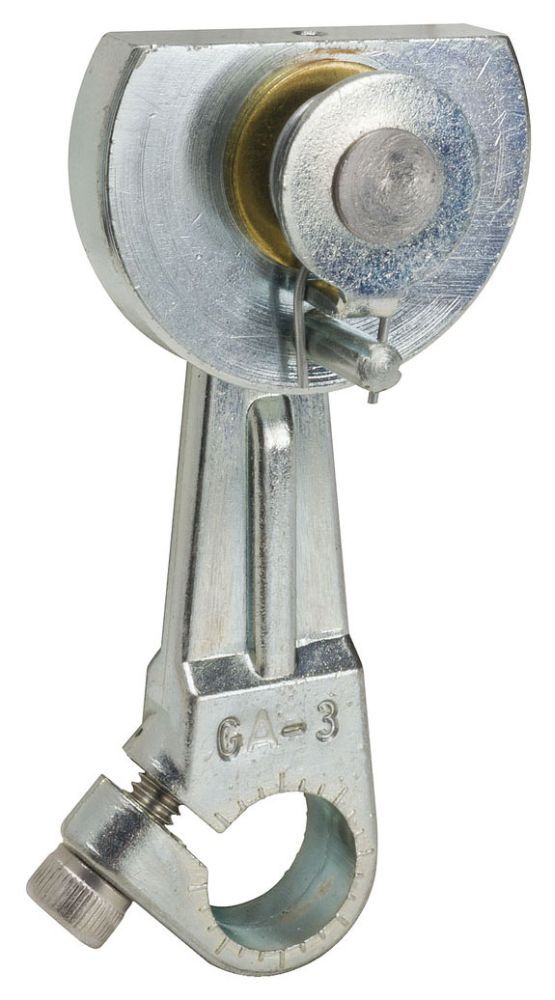

Limit Switch Lever Arm Aw+C +Options

UPC:  78590187043

Part Number: 9007MA3

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007MA3
Action Lateral approach;By 30 cam
Actuator Cast zinc spring return one way roller lever 1.5-1.5 in - -
Application 9007AW-9007C,9007C,HEAVY DUTY
Associated Complete Product 9007C;9007AW
Associated Head 9007C;9007T10;9007N;9007B;9007A;9007T5
Base Price 0.0000
Brand Name 9007
Catalog Number 9007MA3
Commerce Sector Construction Materials
Commodity Code 46160
Commodity Description Limit Switch Arms, Actuators & Operators
Country Of Origin Mexico NULL
CountryOfOrigin MX
DDCATEGORY 2186
Directory CIS
Environmental Conditions STANDARD ENVIRONMENT
Families 2186
Family Description Limit Switch Arms, Actuators & Operators
Image Location * Image
Industry ELX
InvoiceDescription Limit switch lever, 9007, arm aw+c +options;LIMIT SWITCH LEVER ARM
Item Number 87043
Lever Length Radius 1.5 INCH
Lever Material CAST ZINC
Lever Type ONE WAY
Long Description LIMIT SWITCH LEVER ARM, 9007C HEAVY DUTY INDUSTRIAL LIMIT SWITCH USED ON; 1.5 INCH LEVER LENGTH/RADIUS; 0.25 INCH ROLLER WIDTH; STEEL ROLLER MATERIAL; 1.25 INCH ROLLER DIAMETER; CAST ZINC LEVER MATERIAL; ONE WAY LEVER TYPE; 9007 MODEL
MSDS Form Number *
Model 9007
Movement Of Operating Head Rotary
Net Weight 0.1 lb
Noun *
Operating Temperature -20-185 AF
Positive Opening Without
Product Description Limit Switch Lever Arm Aw+C +Options
Product Keywords WEBREADY
Product Name Limit switch
Product Weight 0.1 lb
ProductLine SQD
Roller Diameter 1.25 INCH
Roller Material STEEL
Roller Width 0.25 INCH
Series Name Heavy duty
Size 1.50 INCHES 0.25 X 0.25 INCHES
Special Features 1 steel outside roller 1.25 in 0.25 in
Sub Brand 9007C
Type Limit switch lever
Type Of Operator Cast zinc spring return one way roller lever 1.5in (38.10mm) - -
Type Of Roller 1 steel outside roller 1.25in (31.75mm) 0.25in (6.35mm)
UNSPSC 39122213
UPC 78590187043
Used On 9007C HEAVY DUTY INDUSTRIAL LIMIT SWITCH
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007MA3
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1

Time Zone
