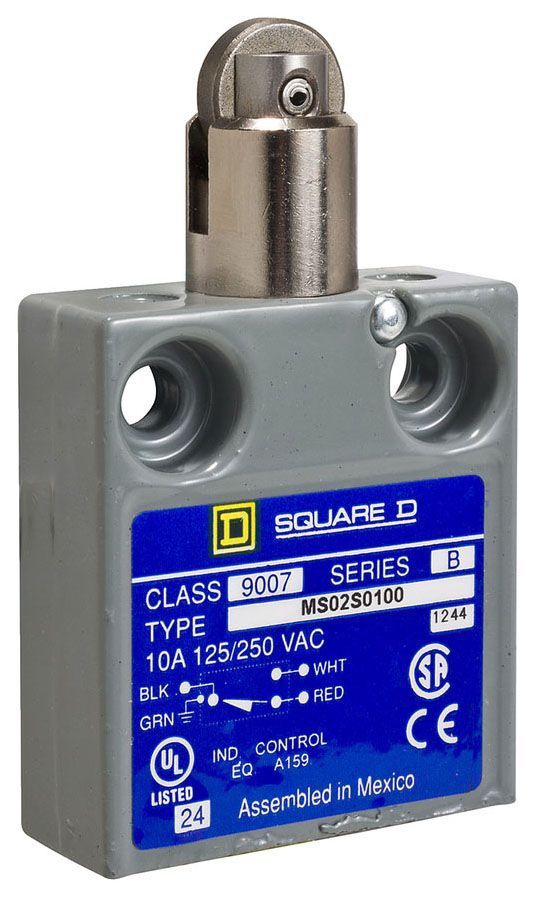

SQD 9007ML02S0100

Limit Switch 240Vac 10Amp Ml +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 240Vac 10Amp Ml +Options

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 240Vac 10Amp Ml +Options

UPC:  78590112642

Part Number: 9007ML02S0100

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007ML02S0100
Actuator Head Type Plunger Head
Additional Information Insulation Voltage 300 Volt
Approval UL, CSA, CE
Base Price 0.0000
Body Material Cast Zinc
Body Plate Style metal
Body Type fixed
Catalog Number 9007ML02S0100
Commerce Sector Construction Materials
Commodity Code 46150
Commodity Description Miniature & Snap Action Limit Switches
Connection SPDT-DB
Contact Configuration SPDT, 1NO-1NC Double Break
Contact Rating 240 Volt AC 10 Amp
CountryOfOrigin ID
DDCATEGORY 2185
Directory CIS
Enclosure NEMA 1/2/4/6/6P, IP67
Families 2185
Family Description Miniature & Snap Action Limit Switches
Head Type by the body
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 240Vac 10Amp Ml +Options;LIMIT SWITCH
Item Number 12642
Long Description HEAVY DUTY LIMIT SWITCH, MINIATURE POTTED TYPE; SPDT, 1NO-1NC DOUBLE BREAK CONTACT CONFIGURATION; SPRING RETURN, SNAP ACTION OPERATION TYPE; 240 VOLT AC 10 AMP CONTACT RATING; UL, CSA, CE APPROVAL; NEMA 1/2/4/6/6P, IP67 ENCLOSURE; CAST ZINC BODY MATERIAL
MSDS Form Number *
Noun *
Operation Type Spring Return, Snap Action
Operator Profile plunger head
Product Description Limit Switch 240Vac 10Amp Ml +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Standards UL
Type limit switch;Miniature Potted
UNSPSC 39122213
UPC 78590112642
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Warranty 18 mo

Resources

CatalogNumber 9007ML02S0100
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
