SQD 9007ML04S0100

Limit Switch 240Vac 10Amp Ml +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 240Vac 10Amp Ml +Options

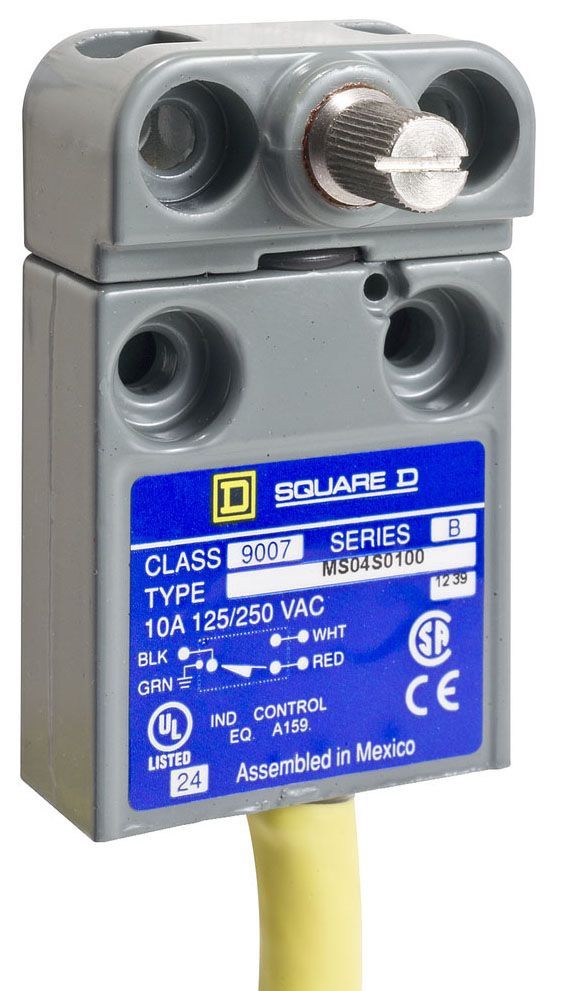

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 240Vac 10Amp Ml +Options

UPC:  78590111340

Part Number: 9007ML04S0100

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007ML04S0100
Actuator Head Type ROTARY LEVER
Additional Information APPLICATION MACHINE TOOL, EARTH MOVING EQUIPMENT, GENERAL TRANSPORTATION; CONTACT FORM TYPE Z; CONTACT MATERIAL SILVER
Approval UL, CSA, CE
Base Price 0.0000
Body Material RUGGED DIE CAST ZINC
Catalog Number 9007ML04S0100
Commerce Sector Construction Materials
Commodity Code 46150
Commodity Description Miniature & Snap Action Limit Switches
Connection Type 18 AWG 3 FT YELLOW SJTO PRE WIRED CABLE (STRANDED)
Contact Configuration SPDT, 1NO-1NC DOUBLE BREAK
Contact Rating 240 VAC 10 AMPERE, 28 VDC 5 AMPERE
CountryOfOrigin ID
DDCATEGORY 2185
Differential Travel 20 DEG
Directory CIS
Enclosure NEMA 1/2/4/6/6P/12/13, IP67
Families 2185
Family Description Miniature & Snap Action Limit Switches
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 240Vac 10Amp Ml +Options;LIMIT SWITCH
Item Number 11340
Long Description HEAVY DUTY LIMIT SWITCH, HEAVY DUTY, COMPACT, MINIATURE, EPOXY ENCAPSULATION SEALED TYPE; SPDT, 1NO-1NC DOUBLE BREAK CONTACT CONFIGURATION; 18 AWG 3 FT YELLOW SJTO PRE WIRED CABLE (STRANDED) CONNECTION TYPE
MSDS Form Number *
Model 9007ML
Noun *
Operating Force 48 OZ-INCH
Operating Temperature -4 TO 220 DEG F
Operation Type CLOCKWISE/COUNTER CLOCKWISE, SNAP ACTION
Pretravel 40 DEG
Product Description Limit Switch 240Vac 10Amp Ml +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Total Travel 70 DEG
Type HEAVY DUTY, COMPACT, MINIATURE, EPOXY ENCAPSULATION SEALED
UNSPSC 39122213
UPC 78590111340
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007ML04S0100
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
