SQD 9007MS01S0100

Limit Switch 240Vac 10Amp Ms +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 240Vac 10Amp Ms +Options

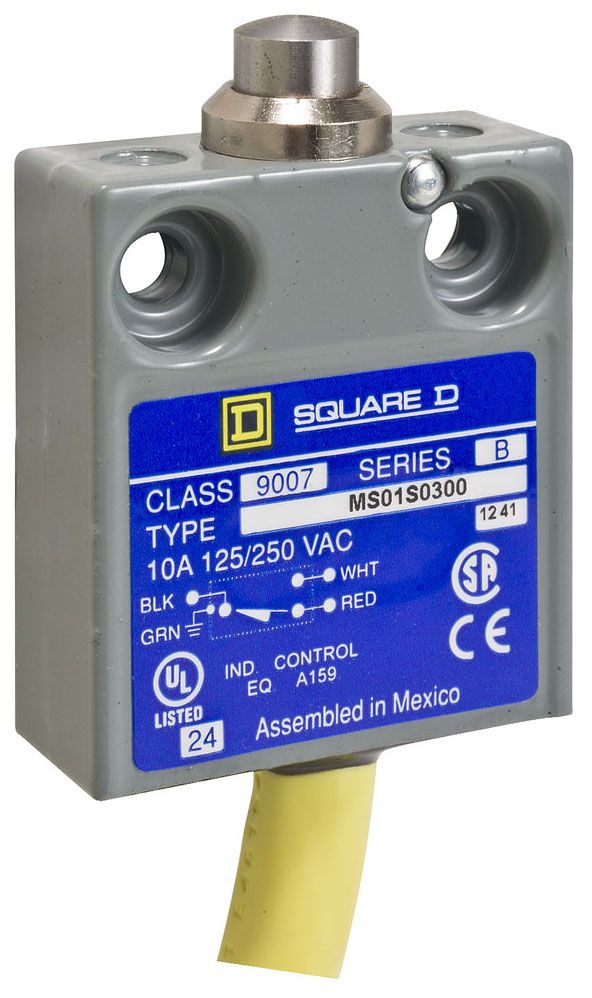

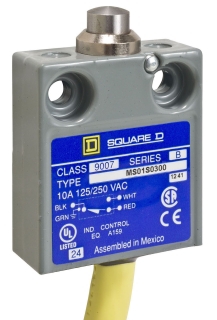

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 240Vac 10Amp Ms +Options

UPC:  78590155060

Part Number: 9007MS01S0100

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007MS01S0100
Actuator Head Type Top Push Plunger
Additional Information Application Machine Tool, Earth Moving Equipment, General Transportation; Contact Form Type C; Contact Material Silver
Approval UL, CSA, CE
Base Price 0.0000
Body Material Rugged Die-Cast Zinc
Body Plate Style metal
Body Type fixed
Catalog Number 9007MS01S0100
Commerce Sector Construction Materials
Commodity Code 46150
Commodity Description Miniature & Snap Action Limit Switches
Connection SPDT
Connection Type 18 AWG 3 Ft Yellow SJTO Pre-Wired Cable (Stranded)
Contact Configuration SPDT, 1NO-1NC
Contact Rating 240 VAC 10 Ampere, 28 VDC 5 Ampere
CountryOfOrigin MX
DDCATEGORY 2185
Differential Travel 0.004 Inch
Directory CIS
Enclosure NEMA 1/2/4/6/6P/12/13, IP67
Families 2185
Family Description Miniature & Snap Action Limit Switches
Head Type by the body
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 240Vac 10Amp Ms +Options;LIMIT SWITCH
Item Number 55060
Long Description HEAVY DUTY LIMIT SWITCH, HEAVY DUTY, COMPACT, MINIATURE, EPOXY ENCAPSULATION SEALED TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; 18 AWG 3 FT YELLOW SJTO PRE-WIRED CABLE (STRANDED) CONNECTION TYPE; SNAP ACTION OPERATION TYPE
MSDS Form Number *
Model 9007MS
Noun *
Operating Force 80 Oz
Operating Temperature -4 to 220 Deg F
Operation Type Snap Action
Operator Profile plunger head
Pretravel 0.07 Inch
Product Description Limit Switch 240Vac 10Amp Ms +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Standards CE
Total Travel 0.19 Inch
Type limit switch;Heavy Duty, Compact, Miniature, Epoxy Encapsulation Sealed
UNSPSC 39122213
UPC 78590155060
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Warranty 18 mo
