SQD 9007MS01S0306

Limit Switch 240Vac 10Amp Ms +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 240Vac 10Amp Ms +Options

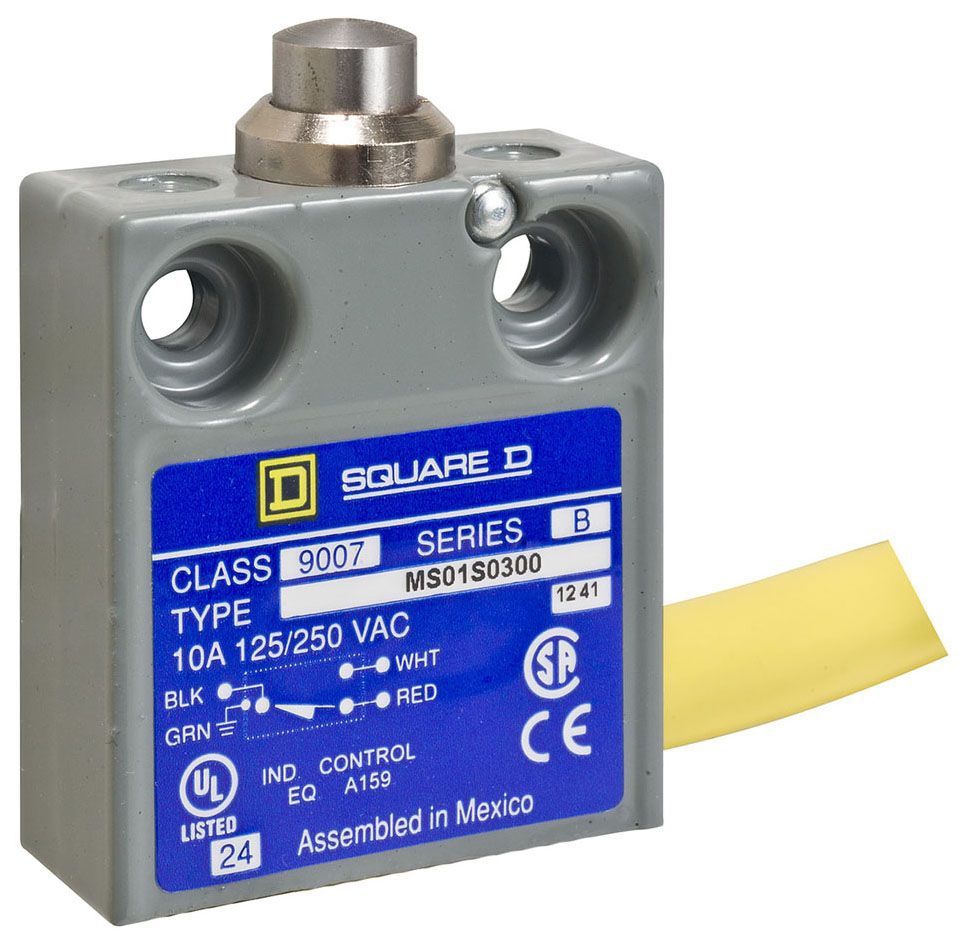

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 240Vac 10Amp Ms +Options

UPC:  78590131934

Part Number: 9007MS01S0306

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007MS01S0306
Actuator Head Type TOP PUSH PLUNGER
Additional Information APPLICATION MACHINE TOOL, EARTH MOVING EQUIPMENT, GENERAL TRANSPORTATION; CONTACT FORM TYPE C; CONTACT MATERIAL SILVER
Approval UL, CSA, CE
Base Price 0.0000
Body Material RUGGED DIE CAST ZINC
Catalog Number 9007MS01S0306
Commerce Sector Construction Materials
Commodity Code 46150
Commodity Description Miniature & Snap Action Limit Switches
Connection Type (4) 18 AWG 9 FT SIDE ENTRANCE SJTO PRE WIRED CABLE
Contact Configuration SPDT, 1NO-1NC
Contact Rating 240 VAC 10 AMPERE, 28 VDC 5 AMPERE
CountryOfOrigin FR
DDCATEGORY 2185
Differential Travel 0.004 INCH
Directory CIS
Enclosure NEMA 1/2/4/6/6P/12/13, IP67
Families 2185
Family Description Miniature & Snap Action Limit Switches
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 240Vac 10Amp Ms +Options;LIMIT SWITCH
Item Number 31934
Long Description HEAVY DUTY LIMIT SWITCH, HEAVY DUTY, COMPACT, MINIATURE, EPOXY ENCAPSULATION SEALED TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; (4) 18 AWG 9 FT SIDE ENTRANCE SJTO PRE WIRED CABLE CONNECTION TYPE; SNAP ACTION OPERATION TYPE
MSDS Form Number *
Model 9007MS
Noun *
Operating Force 80 OZ
Operating Temperature -4 TO 220 DEG F
Operation Type SNAP ACTION
Pretravel 0.07 INCH
Product Description Limit Switch 240Vac 10Amp Ms +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Total Travel 0.19 INCH
Type HEAVY DUTY, COMPACT, MINIATURE, EPOXY ENCAPSULATION SEALED
UNSPSC 39122213
UPC 78590131934
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007MS01S0306
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
