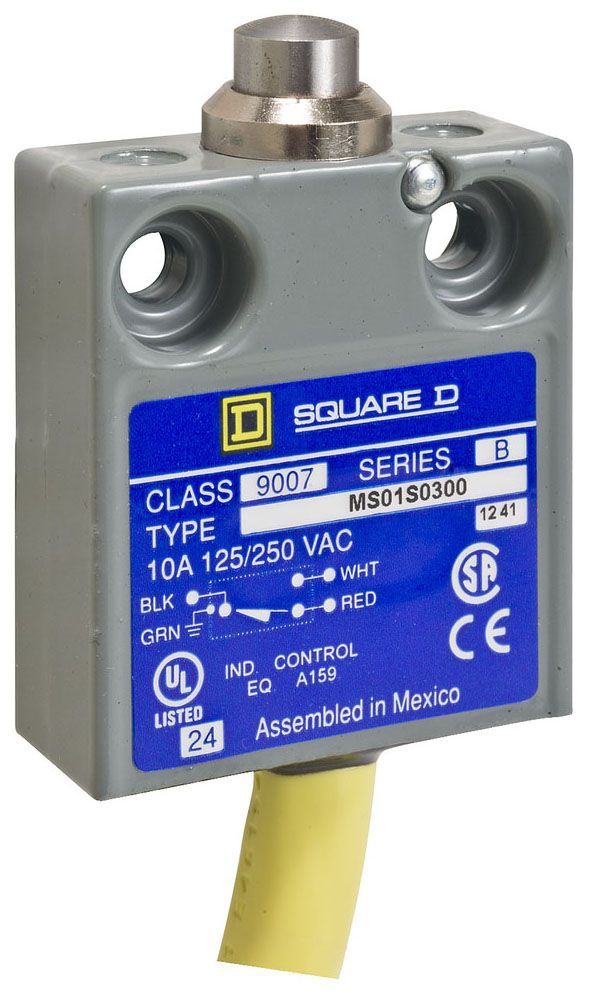

SQD 9007MS01S0502

Limit Switch 240Vac 10Amp Ms +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 240Vac 10Amp Ms +Options

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 240Vac 10Amp Ms +Options

UPC:  78590168296

Part Number: 9007MS01S0502

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007MS01S0502
Actuator Head Type Top Plunger
Additional Information Contact Material Silver
Approval UL
Base Price 0.0000
Catalog Number 9007MS01S0502
Commerce Sector Construction Materials
Commodity Code 46140
Commodity Description Severe Duty Limit Switches
Connection Type 18 Ft 16 AWG SJTO Cable
Contact Configuration SPDT, 1NO-1NC
Contact Rating 120/240 VAC 10 Ampere, 28 VDC 5 Ampere
CountryOfOrigin CN
DDCATEGORY 2184
Directory CIS
Enclosure NEMA 1/2/4/6/6P/12/13, IP67
Families 2184
Family Description Severe Duty Limit Switches
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 240Vac 10Amp Ms +Options;LIMIT SWITCH
Item Number 68296
Long Description HEAVY DUTY LIMIT SWITCH, HEAVY DUTY, ENCAPSULATED MINIATURE TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; 18 FT 16 AWG SJTO CABLE CONNECTION TYPE; 120/240 VAC 10 AMPERE, 28 VDC 5 AMPERE CONTACT RATING; UL APPROVAL; NEMA 1/2/4/6/6P/12/13, IP67 ENCLOSURE
MSDS Form Number *
Noun *
Operating Force 80 Oz
Operating Temperature -4 to 221 Deg F
Product Description Limit Switch 240Vac 10Amp Ms +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Type Heavy Duty, Encapsulated Miniature
UNSPSC 39122213
UPC 78590168296
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007MS01S0502
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
