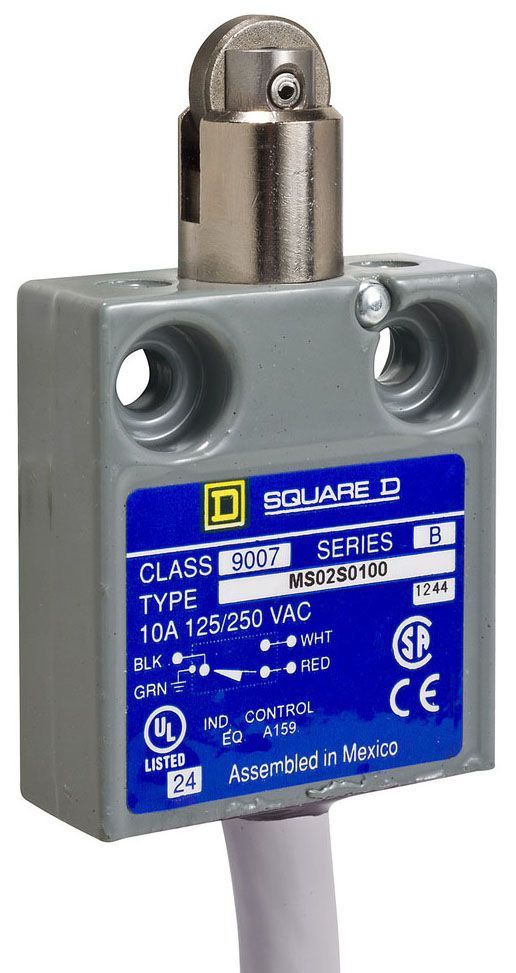

| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9007MS02S0510 |
| Action | By 30 cam;Lateral approach, 2 directions;Snap action |
| Actuator | Spring return parallel roller plunger steel - |
| Actuator Head Type | PARALLEL ROLLER PLUNGER |
| Additional Information | APPLICATION MACHINE TOOL, EARTH MOVING EQUIPMENT, GENERAL TRANSPORTATION; CONTACT FORM TYPE C; CONTACT MATERIAL SILVER |
| Amperage Rating | 10 A |
| Application | 9007MS/ML,MINIATURE POTTED,PLUNGER HEAD |
| Approval | UL, CSA, CE |
| Base Price | 0.0000 |
| Body Material | Cast zinc NULL;RUGGED DIE CAST ZINC |
| Body Type | Fixed |
| Brand Name | 9007 |
| Catalog Number | 9007MS02S0510 |
| Certifications | CSA |
| Commerce Sector | Construction Materials |
| Commodity Code | 46150 |
| Commodity Description | Miniature & Snap Action Limit Switches |
| Connection | Pre-wired cable bottom |
| Connection Type | (4) 18 AWG 18 FT GRAY SJTO PRE WIRED CABLE |
| Contact Configuration | NC-NO;Form C;SPDT, 1NO-1NC |
| Contact Form | Form C NULL |
| Contact Rating | 240 VAC 10 AMPERE, 28 VDC 5 AMPERE |
| Contacts Material | Silver contacts |
| CountryOfOrigin | MX |
| DDCATEGORY | 2185 |
| Differential Travel | 0.004 INCH |
| Directory | CIS |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250;NEMA 1/2/4/6/6P/12/13, IP67 |
| Families | 2185 |
| Family Description | Miniature & Snap Action Limit Switches |
| Head Type | Plunger head |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Limit switch, 9007, 240 VAC 10amp ms +options;LIMIT SWITCH |
| Item Number | 15257 |
| Ithe Cnvtl Enclosed Therm Crrt | 10 A |
| Long Description | HEAVY DUTY LIMIT SWITCH, HEAVY DUTY, COMPACT, MINIATURE, EPOXY ENCAPSULATION SEALED TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; (4) 18 AWG 18 FT GRAY SJTO PRE WIRED CABLE CONNECTION TYPE; SNAP ACTION OPERATION TYPE |
| MSDS Form Number | * |
| Marking | CE;UL;CSA |
| Material | Metal |
| Maximum Force For Tripping | 80.0 |
| Mechanical Durability | 10000000 |
| Model | 9007MS |
| Mounting | By the body |
| Movement Of Operating Head | Linear |
| Noun | * |
| Number Of Poles | 1.0 |
| Operating Cycles | 100k |
| Operating Force | 80 OZ |
| Operating Temperature | -40-220 AF;-4 TO 220 DEG F |
| Operation Type | SNAP ACTION |
| Positive Opening | Without |
| Pretravel | 0.07 INCH |
| Product Description | Limit Switch 240Vac 10Amp Ms +Options |
| Product Keywords | WEBREADY |
| Product Name | Limit switch |
| ProductLine | SQD |
| Sale Per Indivisible Qty | 1 | |
| Sensor Design | Miniature |
| Series Name | Miniature potted |
| Size | 0.62 in |
| Special Features | FIXED,METAL |
| Standard | 10 GN 75-1200 HZ)IEC 60068-2-6,35 GN 9 MS IEC 60068-2-27,CE-CSA-UL,E78403-LR 25490 CLASS 32 11 03,IP67 IEC 60529 |
| Sub Brand | 9007MS/ML |
| Switch Function | SPDT |
| Terminals Description Iso N 1 | (white)NO;(red)NC;(green-yellow)gnd;(black)com |
| Total Travel | 0.19 INCH |
| Type | Limit switch;HEAVY DUTY, COMPACT, MINIATURE, EPOXY ENCAPSULATION SEALED |
| UNSPSC | 39122213 |
| UPC | 78590115257 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 6 A 120 V AC, A300 NEMA RATING DESIGNATION-3 A 240 V AC, A300 NEMA RATING DESIGNATION-5 A 28 V DC |
| Wire Insulation Material | PVC |
