SQD 9007MS03S0200

Limit Switch 240Vac 10Amp Ms +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 240Vac 10Amp Ms +Options

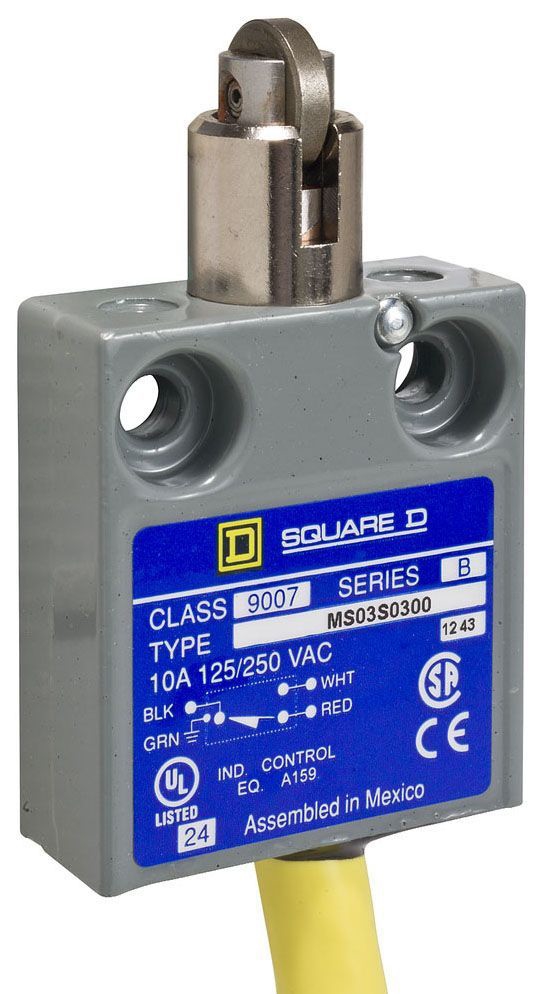

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 240Vac 10Amp Ms +Options

UPC:  78590110370

Part Number: 9007MS03S0200

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007MS03S0200
Actuator Head Type CROSS ROLLER PLUNGER
Additional Information APPLICATION MACHINE TOOL, EARTH MOVING EQUIPMENT, GENERAL TRANSPORTATION; CONTACT FORM TYPE C; CONTACT MATERIAL SILVER
Approval UL, CSA, CE
Base Price 0.0000
Body Material RUGGED DIE CAST ZINC
Body Plate Style metal
Body Type fixed
Catalog Number 9007MS03S0200
Commerce Sector Construction Materials
Commodity Code 46150
Commodity Description Miniature & Snap Action Limit Switches
Connection SPDT
Connection Type 18 AWG 6 FT YELLOW SJTO PRE WIRED CABLE
Contact Configuration SPDT, 1NO-1NC
Contact Rating 240 VAC 10 AMPERE, 28 VDC 5 AMPERE
CountryOfOrigin FR
DDCATEGORY 2185
Differential Travel 0.004 INCH
Directory CIS
Enclosure NEMA 1/2/4/6/6P/12/13, IP67
Families 2185
Family Description Miniature & Snap Action Limit Switches
Head Type by the body
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 240Vac 10Amp Ms +Options;LIMIT SWITCH
Item Number 10370
Long Description HEAVY DUTY LIMIT SWITCH, HEAVY DUTY, COMPACT, MINIATURE, EPOXY ENCAPSULATION SEALED TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; 18 AWG 6 FT YELLOW SJTO PRE WIRED CABLE CONNECTION TYPE; SNAP ACTION OPERATION TYPE
MSDS Form Number *
Model 9007MS
Noun *
Operating Force 80 OZ
Operating Temperature -4 TO 220 DEG F
Operation Type SNAP ACTION
Operator Profile plunger head
Pretravel 0.07 INCH
Product Description Limit Switch 240Vac 10Amp Ms +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Standards CE
Total Travel 0.19 INCH
Type limit switch;HEAVY DUTY, COMPACT, MINIATURE, EPOXY ENCAPSULATION SEALED
UNSPSC 39122213
UPC 78590110370
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Warranty 18 mo

Resources

CatalogNumber 9007MS03S0200
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
