SQD 9007MS09S1300

Limit Switch 240Vac 10Amp Ms +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 240Vac 10Amp Ms +Options

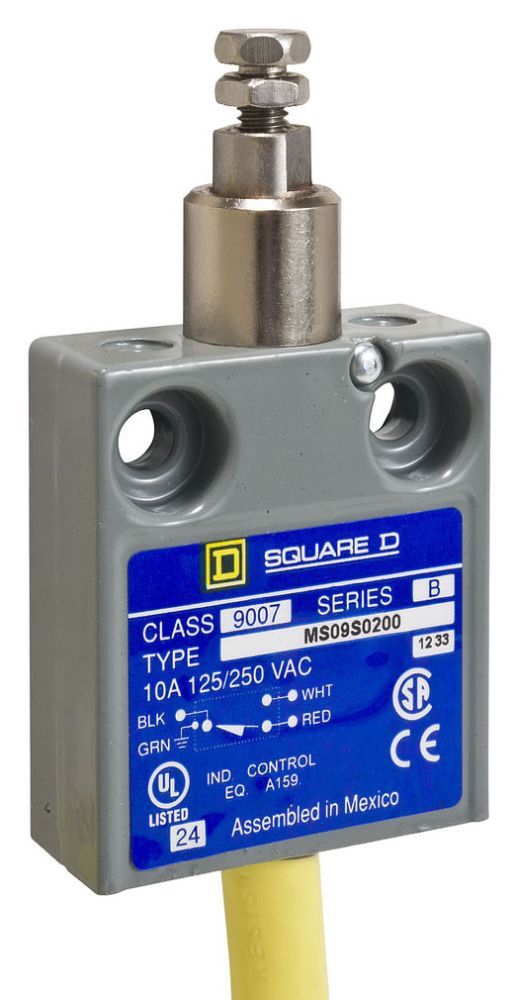

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 240Vac 10Amp Ms +Options

UPC:  78590116431

Part Number: 9007MS09S1300;XACA129KC

UNSPSC: 39121512

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007MS09S1300
Action On end;Vertical approach, 1 direction;Snap action
Actuator Spring return plunger stainless steel adjustable
Base Price 0.0000
Body Material Cast zinc
Body Type Fixed
Brand Name 9007
Certifications CSA
Connection Pre-wired cable bottom
Contact Configuration NC-NO;Form C
Contact Form Form C
Contacts Material Silver contacts
CountryOfOrigin MX
DDCATEGORY 2189
Electrical Connection Pre-wired cable bottom
Families 2189
Family Description Limit Switch Accessories
Head Type Plunger head
Ie Rated Operational Current 6A 120 V AC, A300 NEMA rating designation;3A 240 V AC, A300 NEMA rating designation;5A 28 V DC
InvoiceDescription Limit switch, 9007, ms top push plunger, adjustable, 33' bottom cable;LIMIT SWITCH;OBSOLETE SPECIAL
Ithe Cnvtl Enclosed Therm Crrt 10 A
Marking CE;UL;CSA
Material Metal
Maximum Force For Tripping 80.0
Mechanical Durability 10000000
Mounting By the body
Movement Of Operating Head Linear
Number Of Poles 1.0
Operating Cycles 100k
Positive Opening Without
Product Description Limit Switch 240Vac 10Amp Ms +Options
Product Keywords WEBREADY
Product Name Push button switches
Product Weight 1.2 lb
ProductLine SQD
Sale Per Indivisible Qty 1
Sensor Design Miniature
Series Name Miniature potted
Size 0.62 in
Sub Brand 9007MS/ML
Switch Function SPDT
Terminals Description Iso N 1 (black)com;(white)NO;(green-yellow)gnd;(red)NC
Type Limit switch
Type Of Approach Vertical approach, 1 direction
Type Of Cable SJTO AWG 18), 33 ft, Yellow
Type Of Operator Spring return plunger stainless steel adjustable
UNSPSC 39121512
UPC 78590116431
Ui Rated Insulation Voltage 300V 3)UL 508;300V 3)CSA C22.2 No 14 |
Wire Insulation Material PVC
