| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9007N |
| Action | Lateral approach, 2 programmable directions;CW and CCW;from left and right |
| Actuator | Spring return without operating lever zinc low torque |
| Additional Information | Contact Operation Snap Action |
| Application | 9007C |
| Approval | UL, CSA, CE |
| Associated Body | 9007C |
| Associated Lever | 9007C |
| Base Price | 0.0000 |
| Brand Name | 9007 |
| Catalog Number | 9007N |
| Commerce Sector | Construction Materials |
| Commodity Code | 46170 |
| Commodity Description | Limit Switch Heads |
| CountryOfOrigin | MX |
| DDCATEGORY | 2187 |
| Differential Travel | 4 Deg |
| Directory | CIS |
| Environmental Conditions | STANDARD ENVIRONMENT |
| Families | 2187 |
| Family Description | Limit Switch Heads |
| Head Type | Rotary head |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Limit switch head, 9007, c;LIMIT SWITCH HEAD C |
| Item Number | 54369 |
| Long Description | LIMIT SWITCH HEAD, EXTRA LIGHT OPERATING TORQUE TYPE; 9007C SERIES LIMIT SWITCH USED ON; CLOCKWISE/COUNTERCLOCKWISE CONVERTIBLE, SPRING RETURN OPERATION TYPE; UL, CSA, CE APPROVAL; -20 TO 185 DEG F OPERATING TEMPERATURE; 25 OZ-INCH OPERATING FORCE |
| MSDS Form Number | * |
| Model | 9007 |
| Movement Of Operating Head | Rotary |
| Net Weight | 0.41 lb |
| Noun | * |
| Operating Force | 25 Oz-Inch |
| Operating Temperature | -20-185 AF;-20 to 185 Deg F |
| Operation Type | Clockwise/Counterclockwise Convertible, Spring Return |
| Positive Opening | Without |
| Pretravel | 10 Deg |

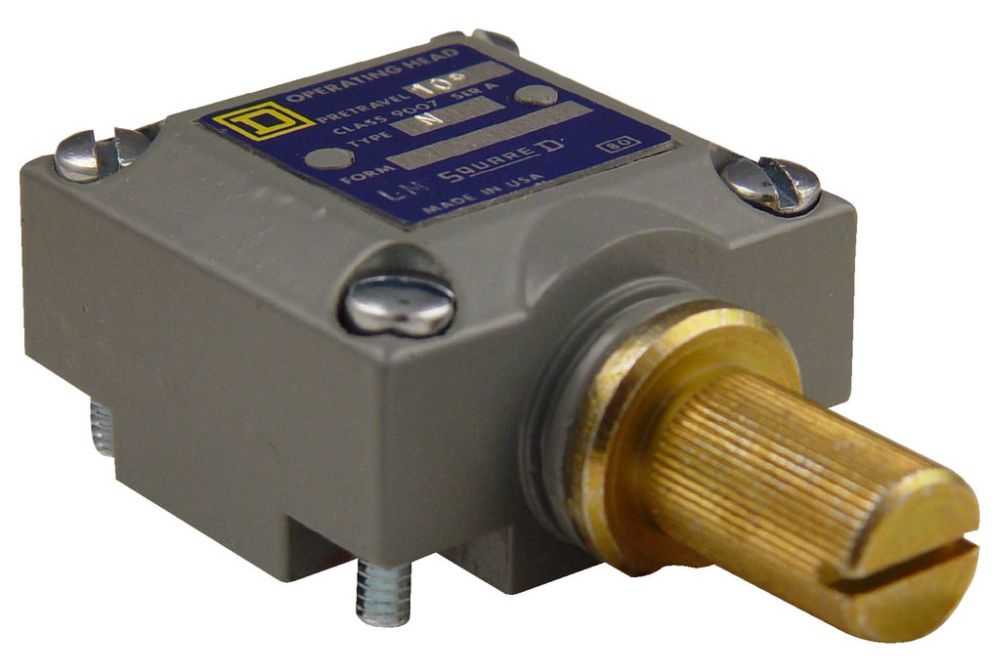

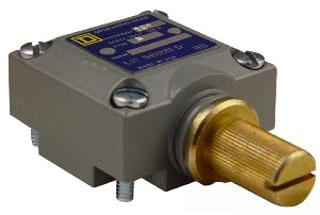

| Product Description | Limit Switch Head C |
| Product Keywords | WEBREADY |
| Product Name | Limit switch |
| Product Weight | 0.41 lb |
| ProductLine | SQD |
| Series Name | Heavy duty |
| Standard | UL LISTED FILE NUMBER E42259 CCN NKCR - CSA CERTIFIED FILE NUMBER LR25490 CLASS 3211-03 - CE MARKED |
| Sub Brand | 9007C |
| Total Travel | 90 Deg |
| Type | Limit switch head;Extra Light Operating Torque |
| Type Of Approach | Lateral approach, 2 programmable directions |
| Type Of Operator | Spring return without operating lever zinc low torque |
| UNSPSC | 39122213 |
| UPC | 78590154369 |
| Used On | 9007C Series Limit Switch |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
