SQD 9007R18

Limit Switch Lever Arm C +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch Lever Arm C +Options

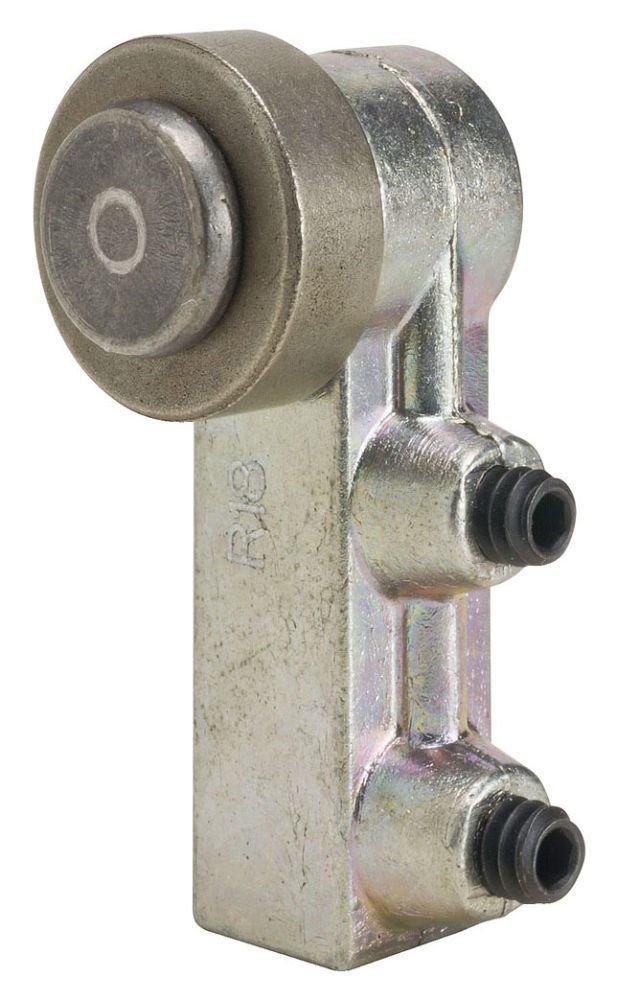

Mouse over image to zoom, click to enlarge

Description:
Limit Switch Lever Arm C +Options

UPC:  78590181413

Part Number: 9007R18

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007R18
Action Lateral approach;By 30 cam
Actuator Cast zinc spring return roller without lever - roller and clamp only (use 9007R16 or 17)
Application SEVERE DUTY 9007T/FT 9007T9007FT9007C..S9
Associated Complete Product 9007C..S9;9007T;9007FT
Associated Head 9007AS9;9007T5S9;9007BS9;9007T10S9;9007NS9;9007CS9
Base Price 0.0000
Brand Name 9007
Catalog Number 9007R18
Commerce Sector Construction Materials
Commodity Code 46160
Commodity Description Limit Switch Arms, Actuators & Operators
Country Of Origin Mexico NULL
CountryOfOrigin MX
DDCATEGORY 2186
Directory CIS
Environmental Conditions STANDARD ENVIRONMENT
Families 2186
Family Description Limit Switch Arms, Actuators & Operators
Image Location * Image
Industry ELX
InvoiceDescription Limit switch lever, 9007, Snap arm c +options;LIMIT SWITCH LEVER ARM
Item Number 81413
Lever Type Adjustable
Long Description LIMIT SWITCH LEVER ARM, 9007T/FT SEVERE DUTY MILL AND FOUNDRY LIMIT SWITCH USED ON; 0.25 INCH ROLLER WIDTH; STEEL ROLLER MATERIAL; 0.75 INCH ROLLER DIAMETER; ADJUSTABLE LEVER TYPE; FRONT/BACK ROLLER MOUNTING LOCATION; 9007 MODEL
MSDS Form Number *
Model 9007
Movement Of Operating Head Rotary
Net Weight 0.1 lb
Noun *
Operating Temperature -10...185 AF
Positive Opening Without
Product Description Limit Switch Lever Arm C +Options
Product Keywords WEBREADY
Product Name Limit switch
Product Weight 0.1 lb
ProductLine SQD
Roller Diameter 0.75 Inch
Roller Material Steel
Roller Mounting Location Front/Back
Roller Width 0.25 Inch
Series Name Severe duty
Special Features 1 steel optional position 0.75 in 0.25 in
Sub Brand 9007T/FT
Type Limit switch lever
Type Of Operator Cast zinc spring return roller without lever - roller and clamp only (use 9007R16 or 17)
Type Of Roller 1 steel optional position 0.75in (19.05mm) 0.25in (6.35mm)
UNSPSC 39122213
UPC 78590181413
Used On 9007T/FT Severe Duty Mill and Foundry Limit Switch
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
