SQD 9007R22

Limit Switch Lever Arm T+Ft+Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch Lever Arm T+Ft+Options

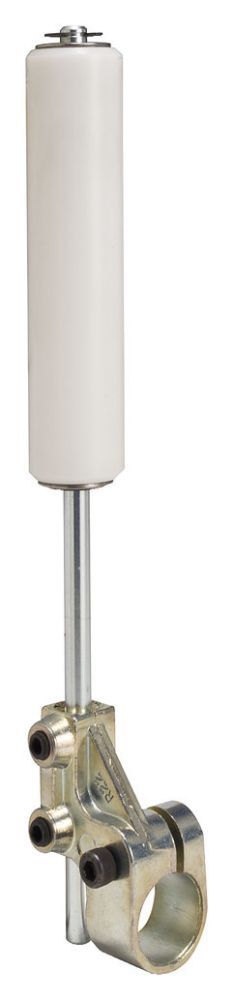

Mouse over image to zoom, click to enlarge

Description:
Limit Switch Lever Arm T+Ft+Options

UPC:  78590160229

Part Number: 9007R22

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007R22
Action Lateral approach;By conveyor belt
Actuator Cast zinc vertical roller lever 8.44-8.44 in - conveyor roller and shaft without clamp (use 9007R16 or 17)
Additional Information Operating Temperature -10 to 185 Deg F; Includes Shaft without Clamp
Application 9007T/FT,9007T-9007FT-9007C..S9,SEVERE DUTY
Associated Complete Product 9007T;9007C..S9;9007FT
Associated Head 9007NS9;9007CS9;9007T5S9;9007BS9;9007AS9;9007T10S9
Base Price 0.0000
Brand Name 9007
Catalog Number 9007R22
Commerce Sector Construction Materials
Commodity Code 46160
Commodity Description Limit Switch Arms, Actuators & Operators
Country Of Origin Mexico NULL
CountryOfOrigin MX
DDCATEGORY 2186
Directory CIS
Environmental Conditions STANDARD ENVIRONMENT
Families 2186
Family Description Limit Switch Arms, Actuators & Operators
Image Location * Image
Industry ELX
InvoiceDescription NEMA limit switch, 9007T, conveyor side guide, 8.438 long arm, Delrin roller, 0.875 inch diameter, 3.75 inch wide;LIMIT SWITCH LEVER ARM
Item Number 60229
Lever Length Radius 8.44 Inch
Lever Material Cast Zinc
Lever Type Offset, Vertical
Long Description LIMIT SWITCH LEVER ARM, 9007T/FT SEVERE DUTY MILL AND FOUNDRY LIMIT SWITCH USED ON; 8.44 INCH LEVER LENGTH/RADIUS; 3.75 INCH ROLLER WIDTH; ACETAL RESIN ROLLER MATERIAL; 0.88 INCH ROLLER DIAMETER; CAST ZINC LEVER MATERIAL; OFFSET, VERTICAL LEVER TYPE
MSDS Form Number *
Model 9007
Movement Of Operating Head Rotary
Net Weight 0.1 lb
Noun *
Operating Temperature -10-185 AF
Positive Opening Without
Product Description Limit Switch Lever Arm T+Ft+Options
Product Keywords WEBREADY
Product Name Limit switch
Product Weight 0.1 lb
ProductLine SQD
Roller Diameter 0.88 Inch
Roller Material Acetal Resin
Roller Width 3.75 Inch
Series Name Severe duty
Size 8.44 INCHES 0.88 X 3.75 INCHES
Special Features 1 acetal resin conveyor side guide roller 0.88 in 3.75 in
Sub Brand 9007T/FT
Type Limit switch lever
Type Of Operator Cast zinc vertical roller lever 8.44in (214.38mm) - conveyor roller and shaft without clamp (use 9007R16 or 17)
Type Of Roller 1 acetal resin conveyor side guide roller 0.88in (22.35mm) 3.75in (95.25mm)
UNSPSC 39122213
UPC 78590160229
Used On 9007T/FT Severe Duty Mill and Foundry Limit Switch
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
