| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9007TUB4 |
| Action | CW and CCW;from left or right;Lateral approach;Snap action |
| Actuator | Spring return without operating lever |
| Actuator Head Type | Side Rotary |
| Additional Information | Enclosure Type Mill Casting; Contact Switch Type 3 Point Universal; Base Plate Type Rectangular End Mounting Hole |
| Amperage Rating | 20 A |
| Application | Universal mill switch |
| Approval | UL 508, CSA, CE |
| Base Plate Style | Style B |
| Base Price | 0.0000 |
| Body Material | Cast zinc NULL;Die-Cast Zinc |
| Body Type | Fixed |
| Brand Name | 9007 |
| Catalog Number | 9007TUB4 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46140 |
| Commodity Description | Severe Duty Limit Switches |
| Connection | Screw-clamp terminals AWG 22...AWG 12 |
| Connection Type | 1/2 Inch NPT Conduit |
| Contact Configuration | Form Z;SPDT, 2NO |
| Contact Form | Form Z NULL |
| Contact Material | Silver Flashed Copper |
| Contact Rating | NEMA A600/P600;600 VAC/VDC 20 Ampere |
| Contact Sequence Number | 4.0 |
| Contacts Material | Silver flashed copper |
| Contacts Usage | - |
| CountryOfOrigin | MX |
| DDCATEGORY | 2184 |
| Differential Travel | 5 Deg |
| Directory | CIS |
| Electrical Connection | Screw-clamp terminals AWG 22...AWG 12 NULL |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250;NEMA 1/2/4/12/13, IP65, IP66, IP67 |
| Families | 2184 |
| Family Description | Severe Duty Limit Switches |
| Function Available | Neutral position |
| Head Type | Rotary head |
| Image Location | * Image |
| Industry | ELX |
| Insulation | 600V |
| InvoiceDescription | Limit switch, 9007, 600 VAC 12amp t +options;LIMIT SWITCH 600VAC |
| Item Number | 75192 |
| Long Description | LIMIT MILL SWITCH, SEVERE DUTY, EXTRA HEAVY DUTY, CONVERTIBLE SEQUENCE TYPE; SPDT, 2NO CONTACT CONFIGURATION; 1/2 INCH NPT CONDUIT CONNECTION TYPE; CLOCKWISE/COUNTER CLOCKWISE, SPRING RETURN OPERATION TYPE; 600 VAC/VDC 20 AMPERE CONTACT RATING |
| MSDS Form Number | * |
| Maximum Actuation Speed | 130 ft/min with 30 cam angle, levers only;90 ft/min with 45 cam angle, levers only |
| Minimum Torque For Tripping | 12.0 |
| Model | 9007T |
| Mounting | By the body |
| Movement Of Operating Head | Rotary |
| Noun | * |
| Number Of Poles | 1.0 |
| Operating Force | 12 Lb-Inch |
| Operating Temperature | -10-185 AF;-10 to 185 Deg F |
| Operation Type | Clockwise/Counter Clockwise, Spring Return |
| Positive Opening | Without |
| Pretravel | 6 Deg |
| Product Description | Limit Switch 600Vac 12Amp T +Options |
| Product Keywords | WEBREADY |

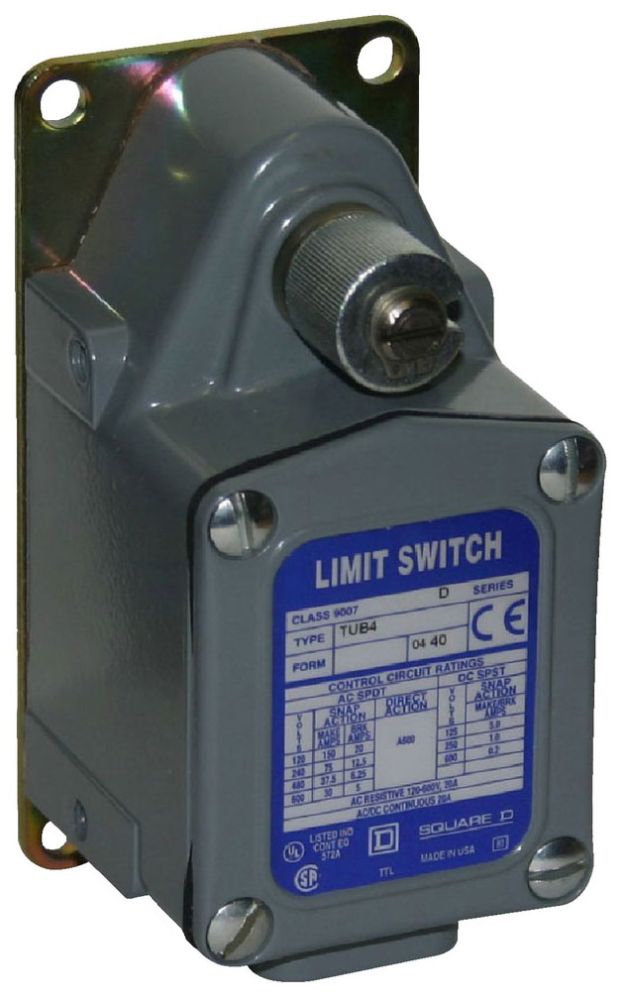

| Product Name | Limit switch |
| ProductLine | SQD |
| Sale Per Indivisible Qty | 1 |
| Series Name | Severe duty mill |
| Size | 2.44 in |
| Special Features | FIXED,NEUTRAL POSITION |
| Standard | 10 GN 10-55 HZ)IEC 60068-2-6,30 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140 |
| Sub Brand | 9007T/FT |
| Switch Function | SPDT-DB |
| Total Travel | 81 Deg |
| Tripping Angle | 6 | |
| Type | Limit switch;Severe Duty, Extra Heavy Duty, Convertible Sequence |
| UNSPSC | 39122213 |
| UPC | 78590175192 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
