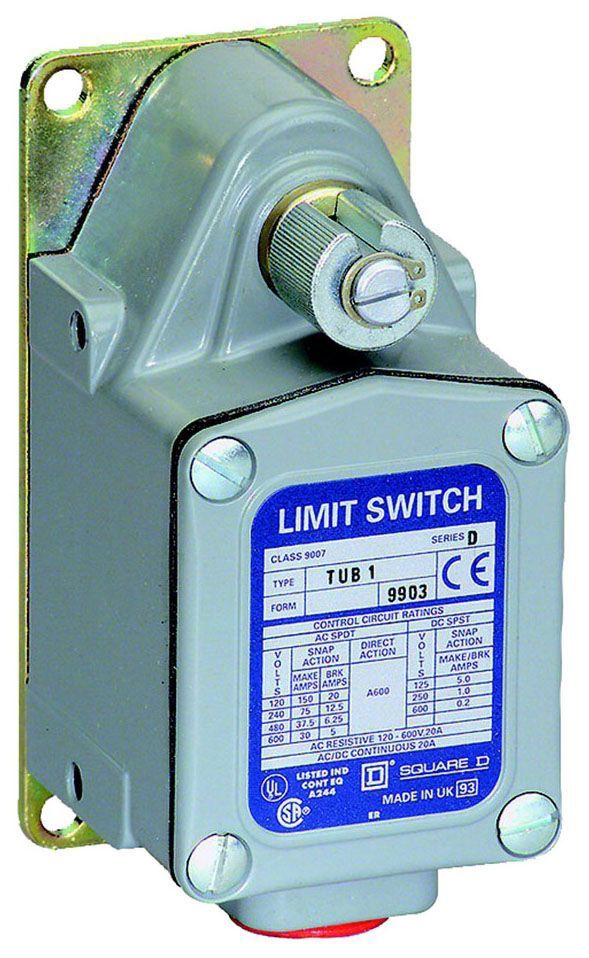

| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9007TUC4 |
| Action | CW and CCW;Snap action |
| Actuator | Spring return lever arm to be ordered separately;spring return |
| Actuator Head Type | SIDE ROTARY |
| Additional Information | ENCLOSURE TYPE MILL CASTING; CONTACT SWITCH TYPE 3 POINT UNIVERSAL; BASE PLATE TYPE WIDE PLATE SIDE MOUNTING HOLE |
| Amperage Rating | 20 A |
| Application | Standard mill switch;heavy duty;universal mill switch |
| Approval | UL 508, CSA, CE |
| Base Plate Style | Style C |
| Base Price | 0.0000 |
| Body Material | Cast zinc NULL;DIE CAST ZINC |
| Brand Name | Square D |
| Cable Entry | NPT conduit entry 0.5-0.5 in UL 508 |
| Catalog Number | 9007TUC4 |
| Certifications | CSA |
| Commerce Sector | Construction Materials |
| Commodity Code | 46140 |
| Commodity Description | Severe Duty Limit Switches |
| Connection | Screw clamp terminal AWG 22...AWG 12 |
| Connection Type | 1/2 INCH NPT CONDUIT |
| Contact Code Designation | A600;Q600 |
| Contact Configuration | Form Z;SPDT, 2NO |
| Contact Form | Form Z NULL |
| Contact Rating | NEMA A600/P600;600 VAC/VDC 20 AMPERE |
| Contacts Material | Silver flashed copper |
| CountryOfOrigin | MX |
| DDCATEGORY | 2184 |
| Differential Travel | 5 DEG |
| Directory | CIS |
| Electrical Connection | Screw clamp terminal AWG 22...AWG 12 NULL |
| Enclosure | NEMA 1/2/4/12/13;NEMA 1/2/4/12/13, IP65, IP66, IP67 |
| Families | 2184 |
| Family Description | Severe Duty Limit Switches |
| Head Type | Rotary head |
| Image Location | * Image |
| Industry | ELX |
| Insulation | 600V |
| InvoiceDescription | Limit switch, 9007, 600 VAC 12amp t +options;LIMIT SWITCH 600VAC |
| Item Number | 75213 |
| Ithe Cnvtl Enclosed Therm Crrt | 20 A |
| Long Description | LIMIT MILL SWITCH, SEVERE DUTY, EXTRA HEAVY DUTY, CONVERTIBLE SEQUENCE TYPE; SPDT, 2NO CONTACT CONFIGURATION; 1/2 INCH NPT CONDUIT CONNECTION TYPE; CLOCKWISE/COUNTER CLOCKWISE, SPRING RETURN OPERATION TYPE; 600 VAC/VDC 20 AMPERE CONTACT RATING |
| MSDS Form Number | * |
| Maximum Actuation Speed | 90 ft/min with 45 cam angle, levers only;50 ft/min with 45 cam angle, levers only |
| Maximum Displacement Angle | 81 |
| Minimum Torque For Tripping | 12.0 |
| Model | 9007T |
| Noun | * |
| Operating Force | 12 LB-INCH |
| Operating Temperature | -10-185 AF;-10 TO 185 DEG F |
| Operation Type | CLOCKWISE/COUNTER CLOCKWISE, SPRING RETURN |
| Positive Opening | Without |
| Pretravel | 6 DEG |
| Product Description | Limit Switch 600Vac 12Amp T +Options |
| Product Keywords | WEBREADY |
| Product Name | Limit switch |
| ProductLine | SQD |
| Repeat Accuracy | +/- 0.004 in 0.1 mm |
| Series Name | Severe duty |
| Short Circuit Protection | 20 A Bussmann class CC KTK-R-20 non-time delay | |
| Size | NPT CONDUIT ENTRY 0.5 IN UL 508 |
| Special Features | IP65-IP66-IP67,SCREW CLAMP TERMINAL AWG 22...AWG 12 |
| Standard | 10 GN 10-55 HZ),30 GN,IP65-IP66-IP67,UL LISTED-CSA-CE,CLASS 0 |
| Sub Brand | T |
| Switch Function | SPDT-DB |
| Total Travel | 81 DEG |
| Tripping Angle | 5 |
| Type | ROTARY HEAD;SEVERE DUTY, EXTRA HEAVY DUTY, CONVERTIBLE SEQUENCE |
| UNSPSC | 39122213 |
| UPC | 78590175213 |
| Ui Rated Insulation Voltage | 600 V |
| Uimp Rated Imp Wstd Voltage | 2200V AC UL;2500V AC CE;2640V AC CSA |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
