SQD 9007TUD4

Limit Switch 600Vac 12Amp T +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 600Vac 12Amp T +Options

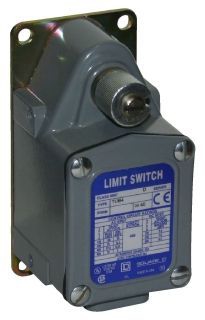

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 600Vac 12Amp T +Options

UPC:  78590175223

Part Number: 9007TUD4

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007TUD4
Actuator Head Type SIDE ROTARY
Additional Information ENCLOSURE TYPE MILL CASTING; CONTACT SWITCH TYPE 3 POINT UNIVERSAL; BASE PLATE TYPE TAPERED END MOUNTING HOLE
Approval UL 508, CSA, CE
Base Price 0.0000
Body Material DIE CAST ZINC
Catalog Number 9007TUD4
Commerce Sector Construction Materials
Commodity Code 46140
Commodity Description Severe Duty Limit Switches
Connection Type 1/2 INCH NPT CONDUIT
Contact Configuration SPDT, 2NO
Contact Rating 600 VAC/VDC 20 AMPERE
CountryOfOrigin FR
DDCATEGORY 2184
Differential Travel 5 DEG
Directory CIS
Enclosure NEMA 1/2/4/12/13, IP65, IP66, IP67
Families 2184
Family Description Severe Duty Limit Switches
Image Location * Image
Industry ELX
InvoiceDescription Limit Switch 600Vac 12Amp T +Options;LIMIT SWITCH 600VAC
Item Number 75223
Long Description LIMIT MILL SWITCH, SEVERE DUTY, EXTRA HEAVY DUTY, CONVERTIBLE SEQUENCE TYPE; SPDT, 2NO CONTACT CONFIGURATION; 1/2 INCH NPT CONDUIT CONNECTION TYPE; CLOCKWISE/COUNTER CLOCKWISE, SPRING RETURN OPERATION TYPE; 600 VAC/VDC 20 AMPERE CONTACT RATING
MSDS Form Number *
Model 9007T
Noun *
Operating Force 12 LB-INCH
Operating Temperature -10 TO 185 DEG F
Operation Type CLOCKWISE/COUNTER CLOCKWISE, SPRING RETURN
Pretravel 6 DEG
Product Description Limit Switch 600Vac 12Amp T +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Total Travel 81 DEG
Type SEVERE DUTY, EXTRA HEAVY DUTY, CONVERTIBLE SEQUENCE
UNSPSC 39122213
UPC 78590175223
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007TUD4
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
