SQD 9007TUD5

Limit Switch 600Vac 12Amp T +Options

Page Loading...
SQUARE-D/SCHNEIDER
Limit Switch 600Vac 12Amp T +Options

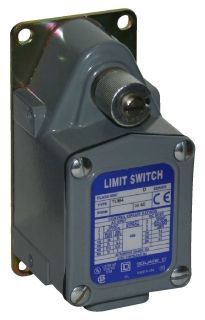

Mouse over image to zoom, click to enlarge

Description:
Limit Switch 600Vac 12Amp T +Options

UPC:  78590175230

Part Number: 9007TUD5

UNSPSC: 39122213

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9007TUD5
Action CCW,SNAP ACTION
Actuator LEVER ARM (PURCHASE SEPARATELY) CCW ONLY
Actuator Head Type Side Rotary
Additional Information Enclosure Type Mill Casting; Contact Switch Type 3 Point Universal; Base Plate Type Tapered End Mounting Hole
Amperage Rating 20 A
Application STANDARD MILL SWITCH-UNIVERSAL MILL SWITCH-HEAVY DUTY
Approval UL 508, CSA, CE
Base Price 0.0000
Body Material Die-Cast Zinc
Brand Name T
Catalog Number 9007TUD5
Commerce Sector Construction Materials
Commodity Code 46140
Commodity Description Severe Duty Limit Switches
Connection 0.5 INCH NPT CONDUIT ENTRANCE SCREW CLAMP
Connection Type 1/2 Inch NPT Conduit
Contact Configuration FORM Z SINGLE POLE DT-DB;SPDT, 1NO-1NC
Contact Rating NEMA A600/P600;600 VAC/VDC 20 Ampere
CountryOfOrigin MX
DDCATEGORY 2184
Differential Travel 12 Deg
Directory CIS
Enclosure NEMA 1/2/4/12/13;NEMA 1/2/4/12/13, IP65, IP66, IP67
Families 2184
Family Description Severe Duty Limit Switches
Image Location * Image
Industry ELX
Insulation 600V
InvoiceDescription LIMIT SWITCH 600VAC 12AMP T +OPTIONS;LIMIT SWITCH 600VAC
Item Number 75230
Long Description LIMIT MILL SWITCH, SEVERE DUTY, EXTRA HEAVY DUTY, CONVERTIBLE SEQUENCE TYPE; SPDT, 1NO-1NC CONTACT CONFIGURATION; 1/2 INCH NPT CONDUIT CONNECTION TYPE; COUNTER CLOCKWISE, SPRING RETURN OPERATION TYPE; 600 VAC/VDC 20 AMPERE CONTACT RATING
MSDS Form Number *
Model 9007T
Noun *
Operating Force 12 Lb-Inch
Operating Temperature -10F TO 185F (-23C TO 85C);-10 to 185 Deg F
Operation Type Counter Clockwise, Spring Return
Pretravel 14 Deg
Product Description Limit Switch 600Vac 12Amp T +Options
Product Keywords WEBREADY
Product Name Limit switch
ProductLine SQD
Size NPT CONDUIT ENTRY 0.5 IN
Special Features SCREW CLAMP TERMINAL
Standard CSA-UL-UL LISTED-CE,IP67-IP66-IP65,UL 508
Total Travel 88 Deg
Type T;Severe Duty, Extra Heavy Duty, Convertible Sequence
UNSPSC 39122213
UPC 78590175230
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9007TUD5
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
