SQD 9012GCW2

Pressure Switch 480Vac 10Amp G +Options

Page Loading...
SQUARE-D/SCHNEIDER
Pressure Switch 480Vac 10Amp G +Options

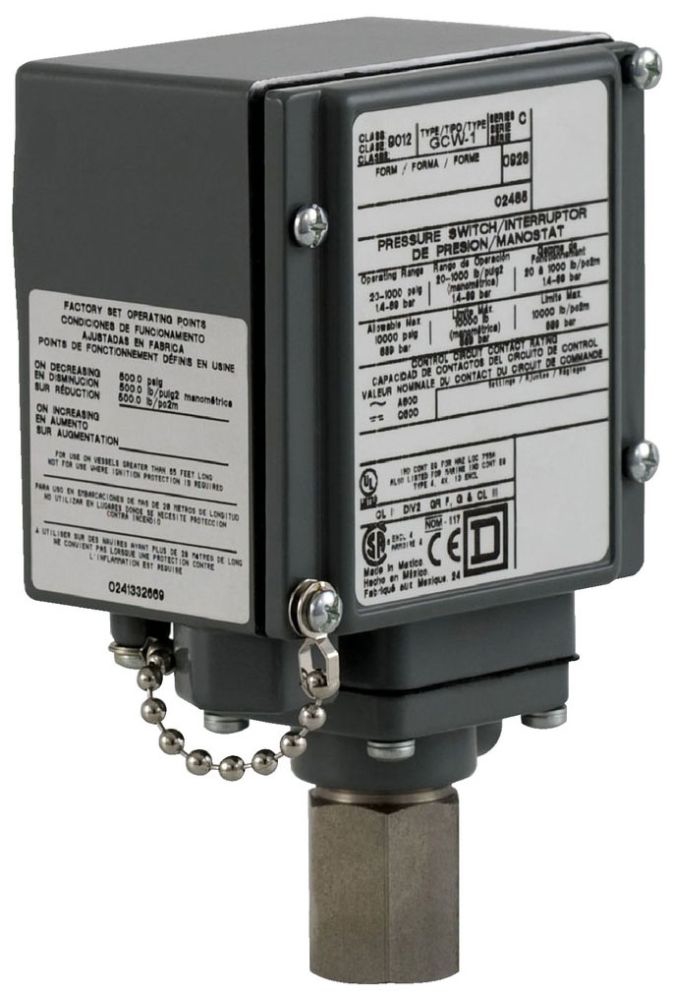

Mouse over image to zoom, click to enlarge

Description:
Pressure Switch 480Vac 10Amp G +Options

UPC:  78590102487

Part Number: 9012GCW2

UNSPSC: 39122210

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9012GCW2
Additional Information Housing Material 303 Stainless Steel; Size 3.5 Inch W x 2.63 Inch D x 6.37 Inch H; Applicable Standard IEC 60957.5.1
Ambient Air Temp Operation -10-185 F
Application Industrial Machine Tool
Approval UL 508, CSA C22.2, CE
Approx Adjustable Differential At Mid Range +/- 2.5 % full scale
Base Price 0.0000
Cable Entry 0.5 inch NPT conduit entrance
Catalog Number 9012GCW2
Circuit control circuit
Commerce Sector Construction Materials
Commodity Code 45100
Commodity Description Pressure Switches
Connection screw-clamp terminals
Connection Type 1/4 Inch-18 TPI FNPT
Contact Composition Form Z
Contact Configuration SPDT 2 Circuit
Contact Material silver nickel contacts
Contact Rating 120 to 600 VAC 10 Ampere, 125 to 600 VDC 10 Ampere
Contacts NC-NO
Controlled Fluid hydraulic oil
CountryOfOrigin UKN
DDCATEGORY 2178
Differential Pressure Rating 170 to 560 PSIG
Directory CIS
Enclosure NEMA 4/4X/13
Enclosure Material die cast aluminium alloy 380;380 Die-Cast Aluminum Alloy
Families 2178
Family Description Pressure Switches
Fluid Connection Type 0.25 inch 18 NPTF
Image Location * Image
Industry ELX
InvoiceDescription Pressure Switch 480Vac 10Amp G +Options;PRESSURE SWITCH 480VAC
Item Number 02487
Local Signaling without
Long Description PRESSURE SWITCH, ADJUSTABLE DIFFERENTIAL TYPE; 15000 PSIG MAX. LINE PRESSURE RATING; SPDT 2 CIRCUIT CONTACT CONFIGURATION; 1/4 INCH-18 TPI FNPT CONNECTION TYPE; 380 DIE-CAST ALUMINUM ALLOY ENCLOSURE MATERIAL
MSDS Form Number *
Materials In Contact With Fluid Viton fluorocarbon
Max Operating Rate 120 cyc/mn
Maximum Line Pressure Rating 15000 PSIG
Maximum Pressure 15000 psi
Mechanical Durability 3000000 cycles
Minimum Pressure 2900 psi
Model 9012, G
NEMA Rating NEMA 4/4X/13
Noun *
Operating Position any position
Operating Pressure Rating 90 to 2900 PSIG
Operator Type 440 Stainless Steel Piston with Viton Fluorocarbon Diaphragm
Pressure Media Air, Gas, Hydraulic Oil, Steam, Water
Pressure Switch Type Of Operation regulation between 2 thresholds
Product Description Pressure Switch 480Vac 10Amp G +Options
Product Keywords WEBREADY
Product Name Pressure switch
ProductLine SQD
Repeat Accuracy 4 %
Scale Type adjustable differential
Setting internal
Standards UL 508
Terminal Block 4 screw terminals
Type electromechanical pressure switch;Adjustable Differential
UNSPSC 39122210
UPC 78590102487
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Warranty 18 mo
