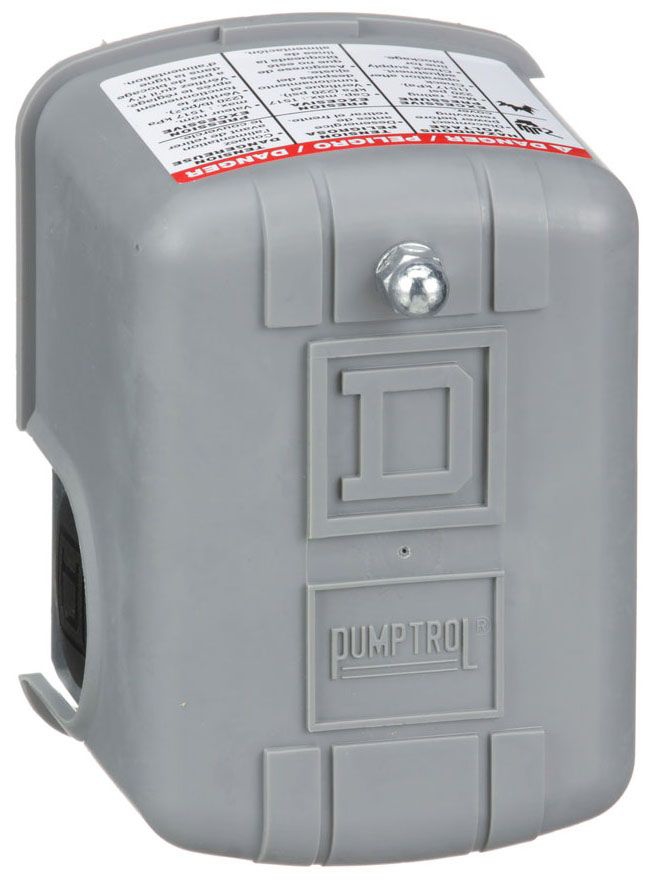

| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9013FSG2J21 |
| Additional Information | RoHS Compliant; Overall Dimension 2.78 Inch Width x 3.76 Inch Depth x 2.8 Inch Height; Number of Poles 2; Pressure Setting Range 30 PSI (ON) to 50 PSI (OFF); Ambient Air Temperature Rating -33 to 257 Deg F; Excludes Local Display |
| Application | Control electrically driven water pumps;Power circuit;Regulation between 2 thresholds;Water Pump |
| Approval | UL 508, CSA, CE |
| Approximate Adj Differential | 1530psi (103.42206.84kPa) |
| Base Price | 0.0000 |
| Brand Name | Square D Pumptrol;Pumptrol[TM] |
| Cable Entry Number | 2 0.88 in cable entries with 0.84 in across flats UL 508 |
| Catalog Number | 9013FSG2J21 |
| Certifications | UL Listed File E12158 |
| Commerce Sector | Construction Materials |
| Commodity Code | 45100 |
| Commodity Description | Pressure Switches |
| Conduit Connection | SCREW CLAMP |
| Connection Type | 1/4 Inch NPSF Internal |
| Contact Configuration | 2 NC, snap action, DPST-DB, Form YY;2NC, Snap-Action, DPST-DB |
| Contacts Type And Composition | 2 NC, snap action, DPST-DB, Form YY NULL |
| Controlled Fluid | Fresh water -22-257 F) |
| CountryOfOrigin | MX |
| DDCATEGORY | 2178 |
| Decreasing Range | 10 TO 45 PSIG |
| Destruction Pressure | 220.0 lb/in |
| Differential Pressure Rating | 15 to 30 PSIG |
| Directory | CIS |
| Electrical Circuit Type | Power circuit NULL |
| Electrical Durability | 100000 cycles 10 cyc/mn |
| Enclosure | NEMA 1 UL 50;NEMA 1, IP20 |
| Enclosure Material | Polypropylene Cover |
| Environmental Conditions | GENERAL PURPOSE (INDOOR) |
| Families | 2178 |
| Family Description | Pressure Switches |
| Image Location | * Image |
| Increasing Range | 2065psi (137.90448.16kPa) |
| Industry | ELX |
| InvoiceDescription | water pump switch, 9013FSG, adjustable differential, 30 to 50 psi, 1 HP;PRESSURE SWITCH |
| Item Number | 07721 |
| Local Display | Without |
| Long Description | PRESSURE SWITCH, ADJUSTABLE DIFFERENTIAL, LOW PRESSURE CUT-OFF, STANDARD ACTION TYPE; 2NC, SNAP-ACTION, DPST-DB CONTACT CONFIGURATION; 1/4 INCH NPSF INTERNAL CONNECTION TYPE; POLYPROPYLENE COVER ENCLOSURE MATERIAL; UL 508, CSA, CE APPROVAL |
| MSDS Form Number | * |
| Materials In Contact Wth Fluid | Zinc plated steel or equivalent flange;Nitrile (Buna-N) or equivalent rubber diaphragm |
| Mechanical Durability | 300000.0 | |
| Model | 9013FSG2 |
| Motor Power Kw | 1.5 kW 2 hp)230 V AC, 1 phase;1.1 kW 1.5 hp)115 V AC, 1 phase;1.5 kW 2 hp)115 V AC, 3 phase;2.2 kW 3 hp)230 V AC, 3 phase;0.75 kW 1 hp)460 V AC, 3 phase;0.75 kW 1 hp)575 V AC, 3 phase |
| Noun | * |
| Operating Cycles | 10 CYC/MN |
| Operating Position | Any position |
| Operating Pressure Rating | 5 to 45 PSIG (Cut-In), 20 to 65 PSIG (Cut-Out) |
| Operating Temperature | -33-257 AF |
| Operator Type | Diaphragm |
| Pressure Actuator | Diaphragm |
| Pressure Media | Water |
| Pressure Sensor Size | 65 psi 5-45 psi) |
| Process Connection | 0.25 INCH NPSF INTERNAL UL 508 |
| Process Fluid | FRESH WATER -22-257 AF) |
| Product Description | Pressure Switch 575Vac 1Hp F +Options |
| Product Keywords | WEBREADY |
| Product Name | Pressure switch |
| ProductLine | SQD |
| Quantity Per Set | 1 |
| Setting | Internal |
| Short Circuit Protection | 20 A cartridge fuse gG |
| Special Features | - |
| Standard | IP20 IEC 60529,NSF ANSI 61 ANNEX G-CE-UL 508,UL LISTED FILE E12158-CSA FILE LR25490 |
| Sub Brand | 9013FS |
| System Pressure | 65 PSI 5-45 PSI) |
| Type | Electromechanical pressure switch;Adjustable differential;Adjustable Differential, Low Pressure Cut-Off, Standard Action |
| Type Of Packing | Individual |
| UNSPSC | 39122210 |
| UPC | 78590107721 |
| Value Of Setting | 30...50 psi |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
