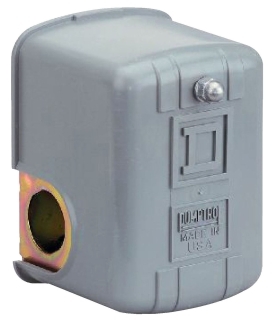

| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9013FSG2J24 |
| Additional Information | RoHS Compliant; Overall Dimension 2.78 Inch Width x 3.76 Inch Depth x 2.8 Inch Height; Number of Poles 2; Pressure Setting Range 40 PSI (ON) to 60 PSI (OFF); Ambient Air Temperature Rating -33 to 257 Deg F; Excludes Local Display |
| Ambient Air Temp Operation | -22-158 F |
| Ambient Air Temp Storage | -22-158 F |
| Application | control electrically driven water pumps;Water Pump |
| Approval | UL 508, CSA, CE |
| Brand Name | Pumptrol[TM] |
| Cable Entry | 2 0.88 in cable entries with 0.84 in across flats UL 508 |
| Catalog Number | 9013FSG2J24 |
| Commerce Sector | Construction Materials |
| Commodity Code | 45100 |
| Commodity Description | Pressure Switches |
| Connection | screw-clamp terminals 10 AWG |
| Connection Type | 1/4 Inch NPSF Internal |
| Contact Configuration | 2NC, Snap-Action, DPST-DB |
| Contacts Type And Composition | 2 NC snap action DPST-DB Form YY |
| CountryOfOrigin | MX |
| DDCATEGORY | 2178 |
| Differential Pressure Rating | 15 to 30 PSIG |
| Directory | CIS |
| Electrical Durability | 100000 cycles 10 cyc/mn |
| Enclosure | NEMA 1, IP20 |
| Enclosure Material | Polypropylene Cover |
| Families | 2178 |
| Family Description | Pressure Switches |
| Fluid Connection Type | 0.25 inch NPSF internal UL 508 |
| IP Rating | IP20 IEC 60529 |
| Image Location | * Image |
| Industry | ELX |
| Insulation Voltage | 575 V UL 508 |
| InvoiceDescription | Pressure Switch 575Vac 1Hp F +Options;PRESSURE SWITCH |
| Item Number | 55930 |
| Long Description | PRESSURE SWITCH, ADJUSTABLE DIFFERENTIAL, LOW PRESSURE CUT-OFF, STANDARD ACTION TYPE; 2NC, SNAP-ACTION, DPST-DB CONTACT CONFIGURATION; 1/4 INCH NPSF INTERNAL CONNECTION TYPE; POLYPROPYLENE COVER ENCLOSURE MATERIAL; UL 508, CSA, CE APPROVAL |
| MSDS Form Number | * |
| Material | polypropylene cover |
| Materials In Contact With Fluid | zinc plated steel or equivalent flange |
| Max Operating Rate | 10 cyc/mn |
| Mechanical Durability | 300000 cycles |
| Model | 9013FSG2 |
| Motor Power Kw | 1.1 kW 1.5 hp AC 115 V 1 phase |
| NEMA Rating | NEMA 1 UL 50 |
| Noun | * |
| Operating Position | any position |
| Operating Pressure Rating | 5 to 45 PSIG (Cut-In), 20 to 65 PSIG (Cut-Out) |
| Operation | regulation between 2 thresholds |
| Operator Type | Diaphragm |
| Pressure Media | Water |
| Product Description | Pressure Switch 575Vac 1Hp F +Options |
| Product Keywords | WEBREADY |
| Product Name | Pressure switch |
| ProductLine | SQD |
| Repeat Accuracy | +/- 3 % |
| Scale Type | adjustable differential |
| Standards | CE |
| Terminal Block | 4 terminals |
| Terminals Description Iso | L2-T2 |
| Type | power circuit;Adjustable Differential, Low Pressure Cut-Off, Standard Action |
| UNSPSC | 39122210 |
| UPC | 78590155930 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
