| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 9036DR31 |
| Action | Contacts close on liquid rise |
| Application | Liquid level control;Power circuit;Open tank general purpose;For open tank or sump |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Square D Pumptrol;Pumptrol[TM] |
| Cable Entry Number | "2 conduit entries for 3/4""-14 NPT UL 508" |
| Catalog Number | 9036DR31 |
| Certifications | UL Listed File E12443 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46320 |
| Commodity Description | Float Switches & Accessories |
| Connection | 4 terminals;Screw-clamp terminals 10 AWG |
| Contact | DPST |
| Contact Configuration | 2-Pole, 2NO |
| Contact Operation | Contacts close on liquid rise NULL |
| Contacts Type And Composition | 2 NC, snap action, DPST-DB, Form YY |
| Controlled Fluid | Fresh water specific gravity of 0.85 in or higher;sea water specific gravity of 0.85 in or higher;hydraulic oil specific gravity of 0.85 in or higher;corrosive fluid specific gravity of 0.85 in or higher |
| CountryOfOrigin | MX |
| DDCATEGORY | 2198 |
| Directory | CIS |
| Electrical Durability | 100 cycles 60 cyc/mn |
| Enclosure | NEMA 7/9 |
| Enclosure Material | Cast Aluminium |
| Families | 2198 |
| Family Description | Float Switches & Accessories |
| Float | VARIABLE ADJUSTABLE |
| Float Movement | Variable adjustable |
| Float Position | Any |
| Float Rod Angle | Vertical |
| Force Down To Trip | 8 ozf |
| Force Up To Trip | 8 ozf |
| Image Location | * Image |
| Industry | ELX |

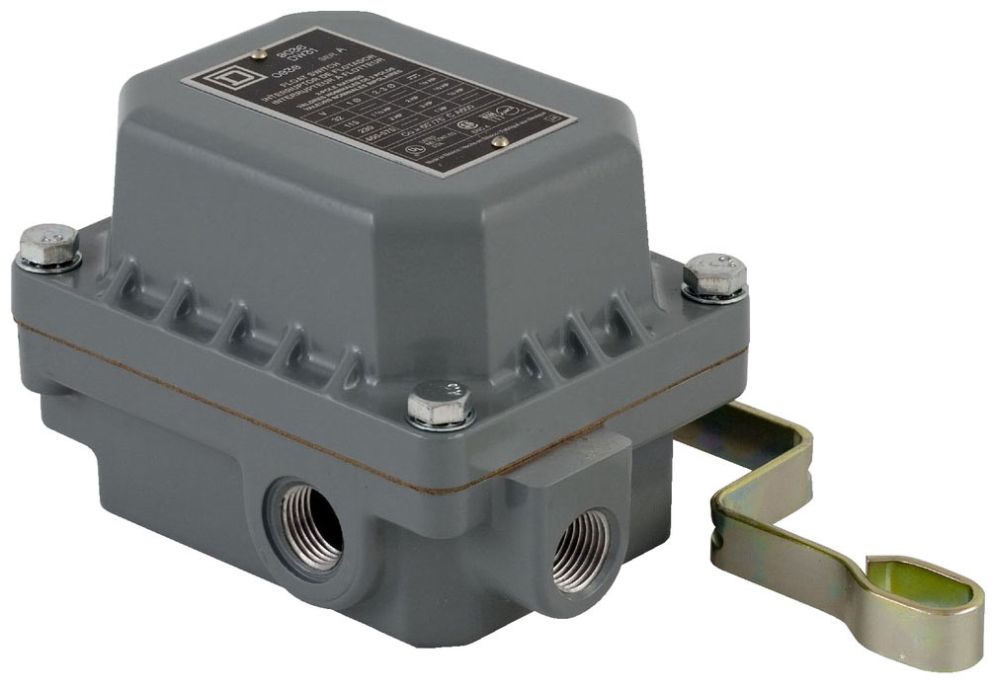

| InvoiceDescription | Float switch, Square D Pumptrol, open tank, NEMA 7/9, pedestal mounted, 2 NC DPST DB contacts;FLOAT SWITCH 575VAC |
| Item Number | 06438 |
| Local Signalling | Without |
| Long Description | FLOAT SWITCH, OPEN TANK/SUMP TYPE; CAST ALUMINUM MATERIAL; 5.5 INCH W X 4.25 INCH D X 5.06 INCH H SIZE; 2-POLE, 2NO CONTACT CONFIGURATION; UL, CSA APPROVAL; 230 VAC 1-PHASE, 575 VAC 3-PHASE, 230 VDC VOLTAGE RATING; FLOOR MOUNTING; NEMA 7/9 ENCLOSURE |
| MSDS Form Number | * |
| Material | Cast Aluminum |
| Mechanical Durability | 300.0 |
| Model | 9036D |
| Motor Power Kw | 1.5 kW 2 hp)115 V AC, 1 phase;2.2 kW 3 hp)115 V AC, 3 phase;2.2 kW 3 hp)230 V AC, 1 phase;3.7 kW 5 hp)230 V AC, 3 phase;0.75 kW 1 hp)460 V AC, 3 phase;0.75 kW 1 hp)475 V AC, 3 phase;0.18 kW 0.25 hp)32 V DC;0.37 kW 0.5 hp)115 V DC;0.37 kW 0.5 hp)230 V DC |
| Mounting | Pedestal;Floor |
| Noun | * |
| Operating Position | Vertical position only |
| Operating Rate | 60 cyc/mn |
| Operating Temperature | -22 to 220 Deg F |
| Operator Type | Single Arm Lever |
| Power Rating | 3 HP at 230 VAC 1-Phase, 5 HP at 230 VAC 3-Phase, 1/2 HP at 230 VDC |
| Process Fluid | FRESH WATER SPECIFIC GRAVITY OF 0.85 IN OR HIGHER-SEA WATER SPECIFIC GRAVITY OF 0.85 IN OR HIGHER-HYDRAULIC OIL SPECIFIC GRAVITY OF 0.85 IN OR HIGHER-CORROSIVE FLUID SPECIFIC GRAVITY OF 0.85 IN OR HIGHER |
| Product Description | Float Switch 575Vac 1Hp D +Options |
| Product Keywords | WEBREADY |
| Product Name | Level or float switch |
| Product Weight | 4.1 lb |
| ProductLine | SQD |
| Short Circuit Protection | 20 A cartridge fuse gG |
| Size | 5.5 Inch W x 4.25 Inch D x 5.06 Inch H |
| Special Features | Set of 1;Without |
| Standard | CE-UL 508,CSA FILE LR26817-UL LISTED FILE E12443,NEMA 7/9 UL 698 |
| Sub Brand | 9036D |
| Temperature Rating | -22-220 AF |
| Terminals Description Iso N 1 | Line-load-load-line | |
| Type | Float switch;Open Tank/Sump |
| Type Of Packing | Individual |
| UNSPSC | 39122219 |
| UPC | 78590106438 |
| Ui Rated Insulation Voltage | 575V UL 508 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Voltage Rating | 575 VAC;230 VAC 1-Phase, 575 VAC 3-Phase, 230 VDC |
