SQD 9070EL3D9

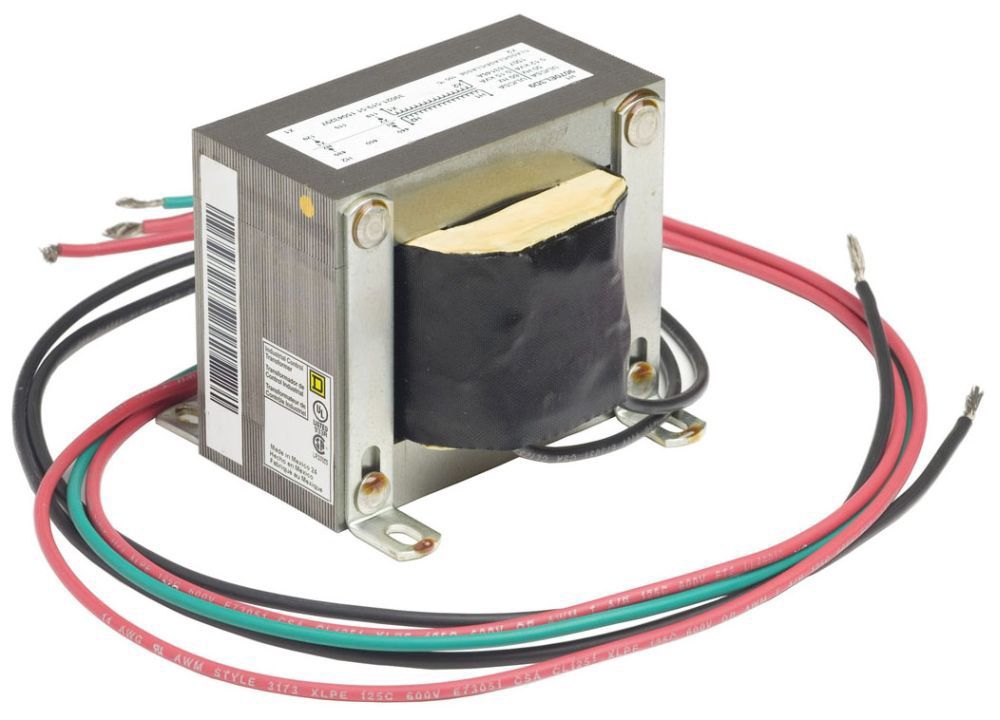

Industrial control transformer, Type EL, 150VA, 480VAC primary, 120VAC secondary, 610mm/24in leads

Page Loading...
SQUARE-D/SCHNEIDER
Industrial control transformer, Type EL, 150VA, 480VAC primary, 120VAC secondary, 610mm/24in leads

Mouse over image to zoom, click to enlarge

Description:
Industrial control transformer, Type EL, 150VA, 480VAC primary, 120VAC secondary, 610mm/24in leads

UPC:  78590102023

Part Number: 9070EL3D9

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $424.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070EL3D9
Additional Information RoHS/REACH Compliant; Type EL; Number of Phase 1; Lead Wire Length 24 Inch
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Brand Name EL
Catalog Number 9070EL3D9
Certifications CE
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
Connection LEADS (25 INCHES)
Connector Type Lead 610 m
CountryOfOrigin MX
DDCATEGORY 2081
Directory CIS
Electrical Connection Screw clamp terminals
Enclosure NOT RATED (OPEN DEVICE)
Families 2081
Family Description Core & Coil Industrial Control Transformers
Image Location * Image
Industry ELX
Insulation 105 C
Insulation Class 105
InvoiceDescription INDUSTRIAL CONTROL TRANSFORMER 150VA MULTI-VOLTAGE WITH 610mm/24INCH LEADS;TRANSFORMER CONTROL
Item Number 02023
KVA Rating 150 VA
Long Description INDUSTRIAL CONTROL TRANSFORMER, UL, CUL, CSA, CE, NOM APPROVAL; 0.38 INCH LENGTH X 0.2 INCH WIDTH SLOT MOUNTING; 150 VOLT AMP POWER RATING; SCREW CLAMP TERMINAL TYPE; 440/460/480 VOLT AC PRIMARY VOLTAGE; 110/115/120 VOLT AC SECONDARY VOLTAGE
MSDS Form Number *
Model 9070
Mounting PANEL;0.38 Inch Length x 0.2 Inch Width Slot
Noun *
Phase 1-PHASE
Power Rating 150 Volt Amp
Primary Voltage 460 V;440 V;480 V;440/460/480 Volt AC
Product Description Industrial control transformer, Type EL, 150VA, 480VAC primary, 120VAC secondary, 610mm/24in leads
Product Keywords WEBREADY
Product Name Power supply transformers
ProductLine SQD
Rated Power In Va 150 VA
Rated Power In Va Metric 150.0 V.A
Secondary Voltage 110/115/120 Volt AC
Sub Brand SQUARE D
Temperature Rating 55 DEGREES C
Temperature Rise 55 Deg C
Terminal Type Screw Clamp
UNSPSC 39121002
UPC 78590102023
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Winding COPPER
