SQD 9070EO2D1

Industrial control transformer, Type EO, 100VA, 240x480VAC primary, 120VAC secondary, 1 phase

Page Loading...
SQUARE-D/SCHNEIDER
Industrial control transformer, Type EO, 100VA, 240x480VAC primary, 120VAC secondary, 1 phase

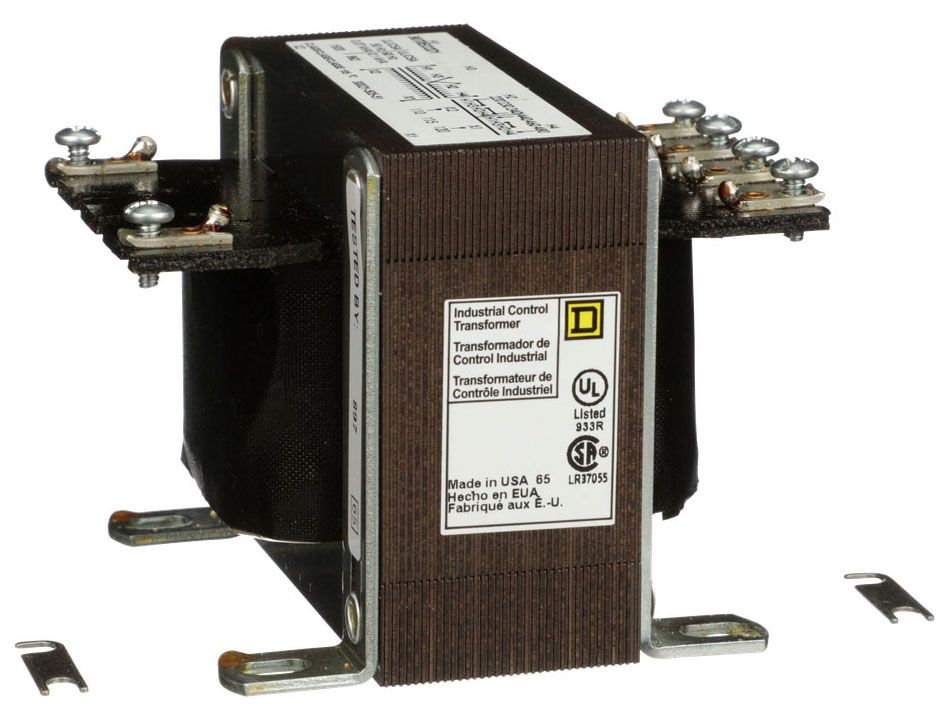

Mouse over image to zoom, click to enlarge

Description:
Industrial control transformer, Type EO, 100VA, 240x480VAC primary, 120VAC secondary, 1 phase

UPC:  78590183713

Part Number: 9070EO2D1

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $246.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070EO2D1
Additional Information RoHS/REACH Compliant; Type EO; Number of Phase 1
Approval UL, CSA
Base Price 0.0000
Brand Name EO
Catalog Number 9070EO2D1
Certifications UL Listed
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
Connection SCREW CLAMP
CountryOfOrigin US
DDCATEGORY 2081
Depth 2.80 in
Depth Metric 71.0 mm
Directory CIS
Electrical Connection Screw clamp terminals
Enclosure NOT RATED (OPEN DEVICE)
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 60 Hertz
Height 3.78 in
Height Metric 96.0 mm
Image Location * Image
Industry ELX
Insulation 130 C
Insulation Class 130
InvoiceDescription Transformer, Type EO, industrial control, 100VA, 240/480VAC primary / 120VAC secondary, 1 phase, 50/60 Hz, 115C;TRANSFORMER CONTROL
Item Number 83713
KVA Rating 0.1
Long Description INDUSTRIAL CONTROL TRANSFORMER, 3.38 INCH WIDTH X 2.81 INCH DEPTH X 3.78 INCH HEIGHT SIZE; 60 HERTZ FREQUENCY RATING; UL, CSA APPROVAL; 100 VOLT AMP POWER RATING; SCREW CLAMP TERMINAL TYPE
MSDS Form Number *
Model 9070
Net Weight Metric 1.7 kg
Noun *
Phase 1-PHASE NULL
Power Rating 100 Volt Amp
Primary Voltage 240 x 480 V;230 x 460 V;220 x 440 V;220/440 Volt AC, 230/460 Volt AC, 240/480 Volt AC
Product Description Industrial control transformer, Type EO, 100VA, 240x480VAC primary, 120VAC secondary, 1 phase
Product Keywords WEBREADY
Product Name Power supply transformers
Product Weight 3.75 lb
ProductLine SQD
Rated Power In Va 100 VA
Rated Power In Va Metric 100.0 V.A
Secondary Voltage 110/115/120 Volt AC
Size 3.38 Inch Width x 2.81 Inch Depth x 3.78 Inch Height
Temperature Rise 80 Deg C
Terminal Type Screw Clamp
UNSPSC 39121002
UPC 78590183713
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 3.39 in
Width Metric 86.0 mm
Winding COPPER

Resources

CatalogNumber 9070EO2D1
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
