SQD 9070EO4D1

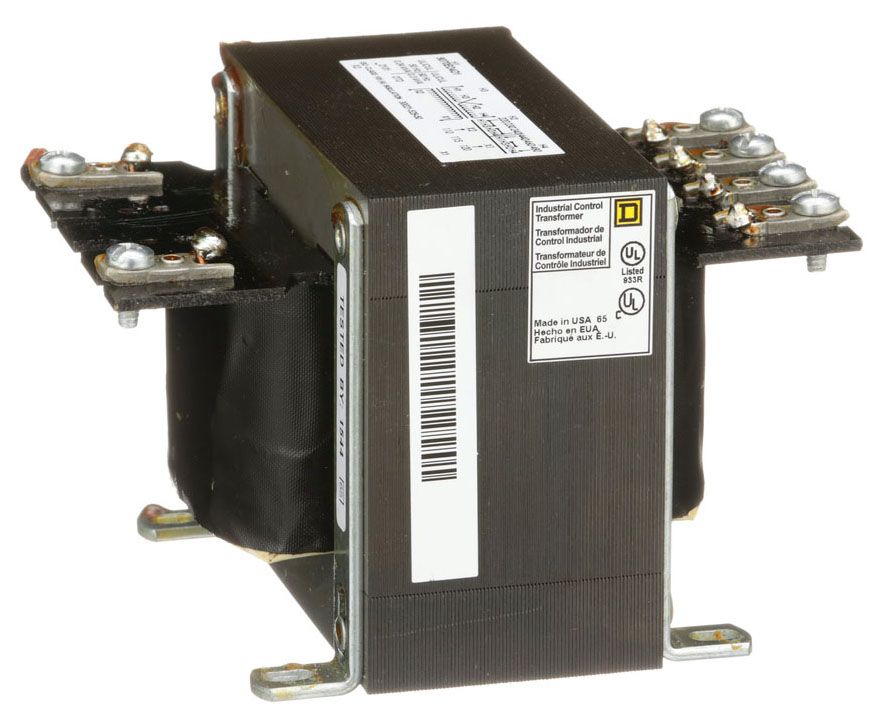

Industrial control transformer, Type EO, 300VA, 240x480VAC primary, 120VAC secondary, 1 phase

Page Loading...
SQUARE-D/SCHNEIDER
Industrial control transformer, Type EO, 300VA, 240x480VAC primary, 120VAC secondary, 1 phase

Mouse over image to zoom, click to enlarge

Description:
Industrial control transformer, Type EO, 300VA, 240x480VAC primary, 120VAC secondary, 1 phase

UPC:  78590183783

Part Number: 9070EO4D1

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $601.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070EO4D1
Additional Information RoHS/REACH Compliant; Type EO; Number of Phase 1
Approval UL, CSA
Base Price 0.0000
Brand Name EO
Catalog Number 9070EO4D1
Certifications CSA
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
Connection SCREW CLAMP
CountryOfOrigin US
DDCATEGORY 2081
Depth 3.74 in
Depth Metric 95.0 mm
Directory CIS
Electrical Connection Screw clamp terminals
Enclosure OPEN
Families 2081
Family Description Core & Coil Industrial Control Transformers
Height 5.55 in
Height Metric 141.0 mm
Image Location * Image
Industry ELX
Insulation 105 DEGREES C
Insulation Class 130
InvoiceDescription Transformer, Type EO, industrial control, 300VA, 240x480VAC primary,120VAC secondary, 1 phase, 80C;TRANSFORMER CONTROL
Item Number 83783
KVA Rating 300VA@60HZ, 240VA@50HZ
Long Description INDUSTRIAL CONTROL TRANSFORMER, 4.49 INCH WIDTH X 3.74 INCH DEPTH X 5.55 INCH HEIGHT SIZE; UL, CSA APPROVAL; 300 VOLT AMP POWER RATING; SCREW CLAMP TERMINAL TYPE; 220/440 VOLT AC, 230/460 VOLT AC, 240/480 VOLT AC PRIMARY VOLTAGE
MSDS Form Number *
Model 9070
Net Weight Metric 7.8 kg
Noun *
Phase 1-PHASE NULL
Power Rating 300 Volt Amp
Primary Voltage 240 x 480 V;220 x 440 V;230 x 460 V;220/440 Volt AC, 230/460 Volt AC, 240/480 Volt AC
Product Description Industrial control transformer, Type EO, 300VA, 240x480VAC primary, 120VAC secondary, 1 phase
Product Keywords WEBREADY
Product Name Power supply transformers
Product Weight 17.20 lb
ProductLine SQD
Rated Power In Va 300 VA
Rated Power In Va Metric 300.0 V.A
Secondary Voltage 110/115/120 Volt AC
Size 4.49 Inch Width x 3.74 Inch Depth x 5.55 Inch Height
Temperature Rise 80 Deg C
Terminal Type Screw Clamp
UNSPSC 39121002
UPC 78590183783
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 4.49 in
Width Metric 114.0 mm
Winding COPPER

Resources

CatalogNumber 9070EO4D1
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
