SQD 9070T1000D23

Transformer, Type T, industrial control, 1000VA, 1 phase, 120x240V primary, 24V secondary, 115C rise

Page Loading...
SQUARE-D/SCHNEIDER
Transformer, Type T, industrial control, 1000VA, 1 phase, 120x240V primary, 24V secondary, 115C rise

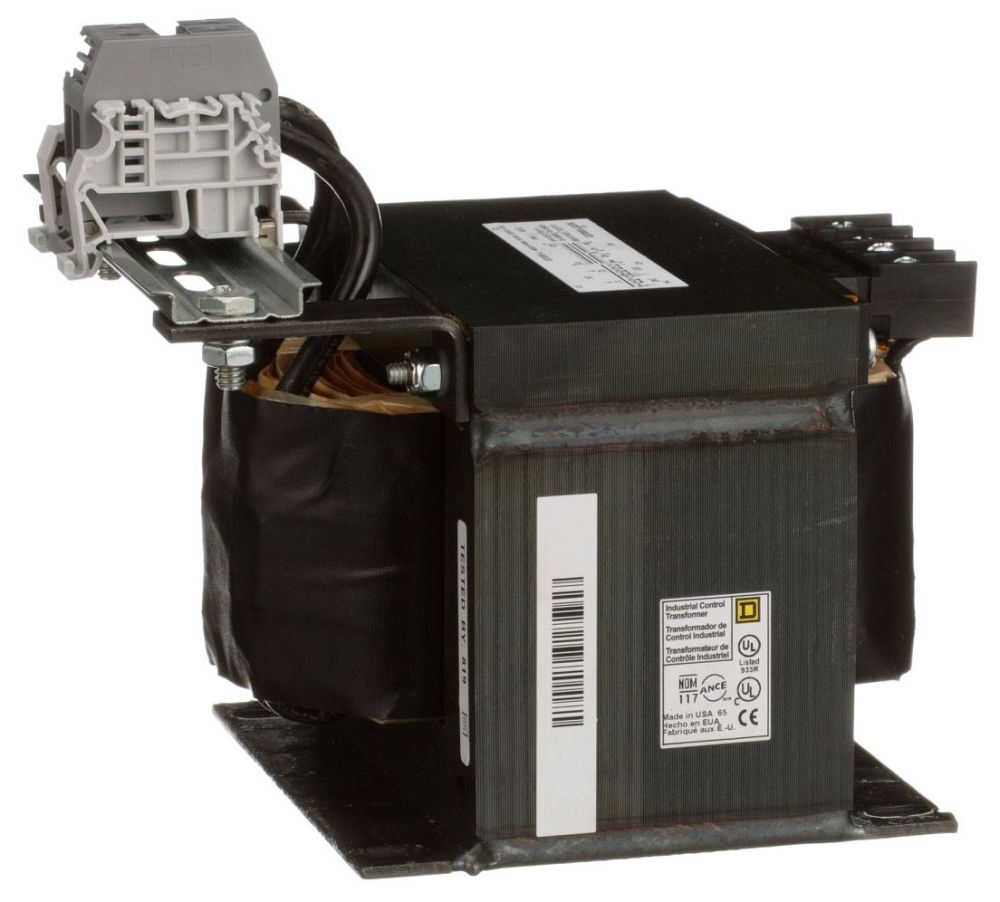

Mouse over image to zoom, click to enlarge

Description:
Transformer, Type T, industrial control, 1000VA, 1 phase, 120x240V primary, 24V secondary, 115C rise

UPC:  78590190586

Part Number: 9070T1000D23

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $1,214.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070T1000D23
Additional Information RoHS/REACH Compliant; Type T; Number of Phase 1; Winding Material Copper
Applicable Standard EN 61558
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Catalog Number 9070T1000D23
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
CountryOfOrigin US
DDCATEGORY 2081
Directory CIS
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 50/60 Hertz
Image Location * Image
Industry ELX
Insulation Class 180
InvoiceDescription Transformer, Type T, industrial control, 1000VA, 1 phase, 120x240V primary, 24V secondary, 115C rise;TRANSFORMER
Item Number 90586
Long Description INDUSTRIAL CONTROL TRANSFORMER, 7.06 INCH WIDTH X 5.92 INCH DEPTH X 6.17 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558 APPLICABLE STANDARD; 0.56 INCH LENGTH X 0.28 INCH WIDTH SLOT MOUNTING
MSDS Form Number *
Model 9070
Mounting 0.56 Inch Length x 0.28 Inch Width Slot
Noun *
Power Rating 1000 Volt Amp
Primary Voltage 120/240 Volt AC
Product Description Transformer, Type T, industrial control, 1000VA, 1 phase, 120x240V primary, 24V secondary, 115C rise
Product Keywords WEBREADY
Product Name Power supply transformers
ProductLine SQD
Secondary Voltage 24 Volt AC
Size 7.06 Inch Width x 5.92 Inch Depth x 6.17 Inch Height
Temperature Rise 115 Deg C
Terminal Type Screw Clamp
UNSPSC 39121002
UPC 78590190586
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9070T1000D23
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
