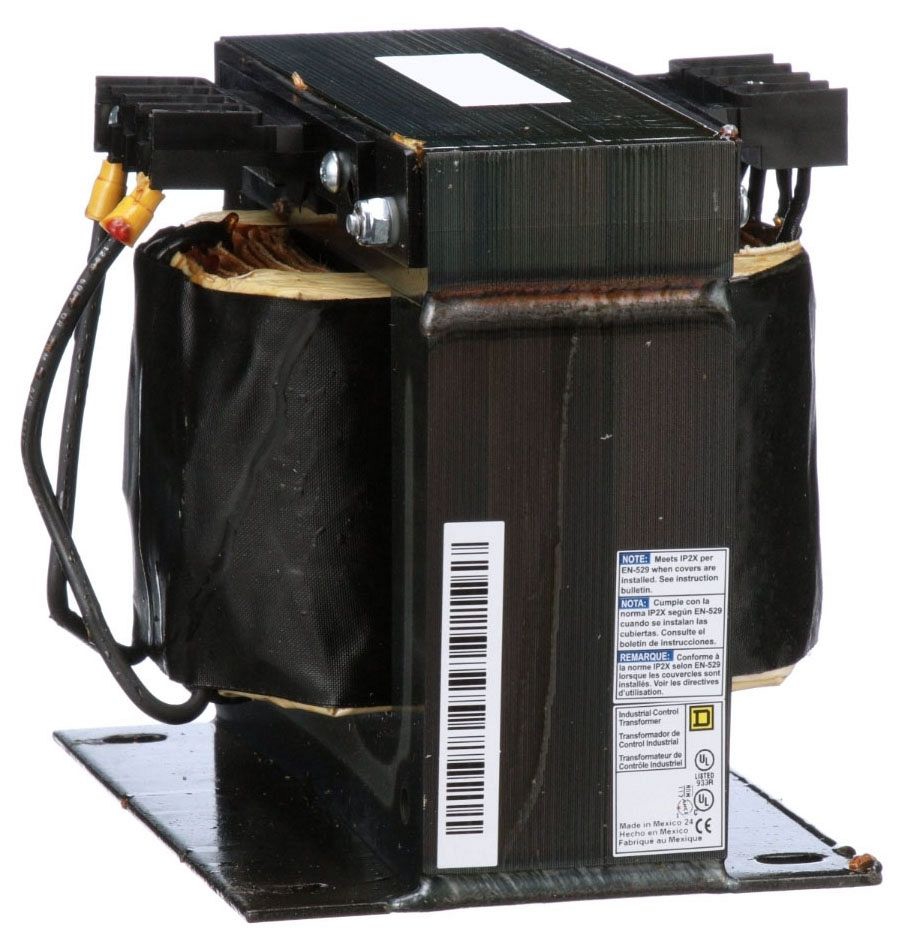

SQD 9070T1000D32

Industrial control transformer, Type T, 1 phase, 1000VA, 240/480/600V primary, 120V secondary, 50/60Hz

Page Loading...
SQUARE-D/SCHNEIDER
Industrial control transformer, Type T, 1 phase, 1000VA, 240/480/600V primary, 120V secondary, 50/60Hz

Mouse over image to zoom, click to enlarge

Description:
Industrial control transformer, Type T, 1 phase, 1000VA, 240/480/600V primary, 120V secondary, 50/60Hz

UPC:  78590131370

Part Number: 9070T1000D32

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $1,214.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070T1000D32
Additional Information RoHS/REACH Compliant; Type T; Number of Phase 1; Winding Material Copper
Applicable Standard EN 61558
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Brand Name T
Catalog Number 9070T1000D32
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
Connection SCREW CLAMP
CountryOfOrigin US
DDCATEGORY 2081
Depth 5.92 in
Directory CIS
Electrical Connection Screw clamp terminals
Enclosure OPEN
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 50/60 Hertz
Height 6.17 in
Image Location * Image
Industry ELX
Insulation 180 DEGREES C
Insulation Class 180
InvoiceDescription Industrial control transformer, Type T, 1 phase, 1000VA, 240/480/600V primary, 120V secondary, 50/60Hz;TRFMR CONTROL
Item Number 31370
KVA Rating 1
Long Description INDUSTRIAL CONTROL TRANSFORMER, 5.25 INCH WIDTH X 6.3 INCH DEPTH X 4.51 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558 APPLICABLE STANDARD; 0.56 INCH LENGTH X 0.28 INCH WIDTH SLOT MOUNTING
MSDS Form Number *
Material Copper winding
Model 9070
Mounting PANEL;0.56 Inch Length x 0.28 Inch Width Slot
Noun *
Phase 1-PHASE
Power Rating 1000 Volt Amp
Primary Voltage 230/460/575V;240/480/600 Volt AC, 230/460/575 Volt AC, 220/440/550 Volt AC
Product Description Industrial control transformer, Type T, 1 phase, 1000VA, 240/480/600V primary, 120V secondary, 50/60Hz
Product Keywords WEBREADY
Product Name Power supply transformers
ProductLine SQD
Rated Power In Va Metric 1000.0;1000 VA UL;1000 VA CSA;1000 VA NOM;630 VA V.A
Secondary Voltage 110/115/120 Volt AC
Size 5.25 Inch Width x 6.3 Inch Depth x 4.51 Inch Height
Temperature Rating 115 DEGREES C
Temperature Rise 115 Deg C
Terminal Type Screw Clamp
UNSPSC 39121002
UPC 78590131370
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 7.06 in
Winding COPPER
