SQD 9070T100D1SF41

Transformer, Type T, industrial control, 100 VA, 240/480 VAC primary / 120 VAC secondary, 1 phase, 50/60 Hz, 55 C rise

Page Loading...
SQUARE-D/SCHNEIDER
Transformer, Type T, industrial control, 100 VA, 240/480 VAC primary / 120 VAC secondary, 1 phase, 50/60 Hz, 55 C rise

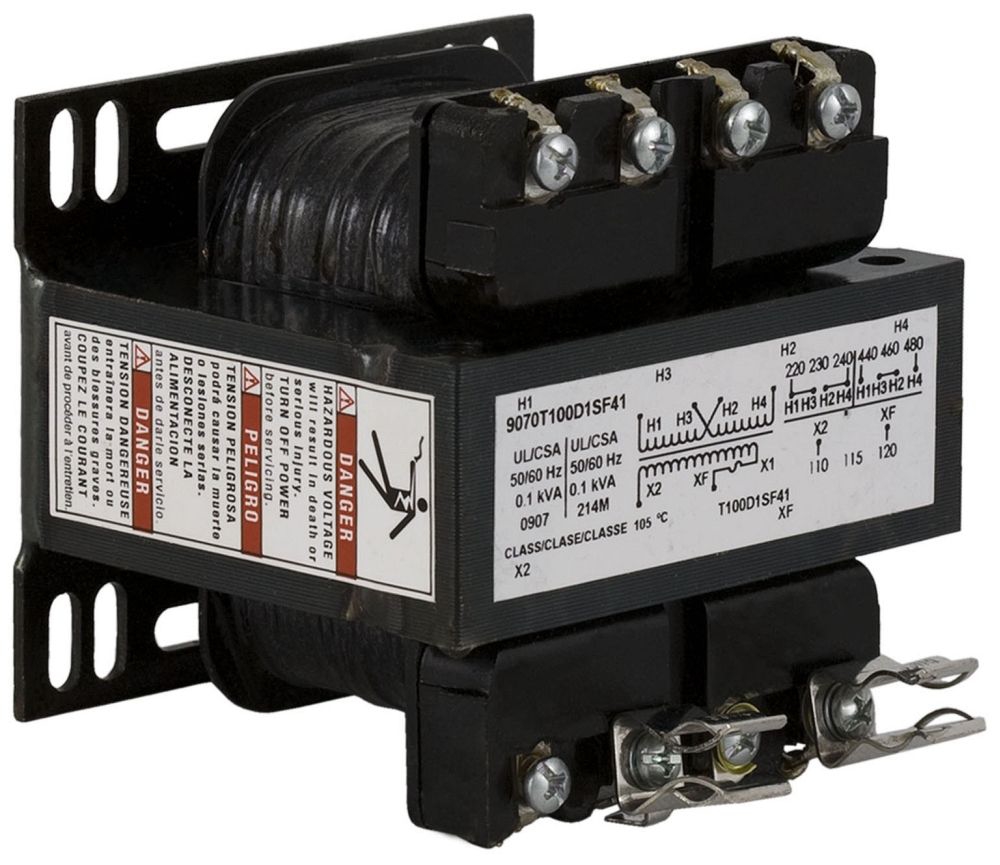

Mouse over image to zoom, click to enlarge

Description:
Transformer, Type T, industrial control, 100 VA, 240/480 VAC primary / 120 VAC secondary, 1 phase, 50/60 Hz, 55 C rise

UPC:  78590190571

Part Number: 9070T100D1SF41

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $206.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070T100D1SF41
Additional Information RoHS/REACH Compliant; Type T; Number of Phase 1
Applicable Standard EN 61558
Application SPECIFICALLY DESIGNED TO HANDLE HIGH INRUSH ASSOCIATED WITH CONTACTORS AND RELAYS FOR APPLICATIONS SUCH AS CONVEYOR SYSTEMS, PAINT LINES, PUNCH PRESSES OR OVERHEAD CRANES
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Brand Name Square D
Catalog Number 9070T100D1SF41
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
Connection SCREW CLAMP
Country Of Origin USA NULL
CountryOfOrigin US
DDCATEGORY 2081
Directory CIS
Enclosure OPEN
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 50/60 Hertz
Image Location * Image
Industry ELX
Insulation 105 DEGREES C
Insulation Class 105
InvoiceDescription Transformer, Type T, industrial control, 100 VA, 240/480 VAC primary / 120 VAC secondary, 1 phase, 50/60 Hz, 55 C rise;TRANSFORMER
Item Number 90571
KVA Rating 0.1
Long Description INDUSTRIAL CONTROL TRANSFORMER, 3.75 INCH WIDTH X 3.59 INCH DEPTH X 3.2 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558 APPLICABLE STANDARD; 0.48 INCH LENGTH X 0.2 INCH WIDTH SLOT MOUNTING
MSDS Form Number *
Model 9070
Mounting PANEL;0.48 Inch Length x 0.2 Inch Width Slot
Noun *
Number Of Phases 1 phase
Phase 1-PHASE
Power Rating 100VA;100VA;100 Volt Amp
Primary Voltage 240X480V OR 230X460V OR 220X440V;240/480 Volt AC
Product Description Transformer, Type T, industrial control, 100 VA, 240/480 VAC primary / 120 VAC secondary, 1 phase, 50/60 Hz, 55 C rise
Product Keywords WEBREADY
Product Name Power supply transformers
Product Type Industrial Control Transformer
ProductLine SQD
Rated Power In Va Metric 100.0;100 V.A
Secondary Voltage 120V OR 115V OR 110V;120 Volt AC
Size 3.75 Inch Width x 3.59 Inch Depth x 3.2 Inch Height
Special Features SECONDARY FUSE CLIPS MOUNTED ON TERMINAL BLOCK
Standard UL LISTED, CSA, CE MARKED
Temperature Rating 55 DEGREES C
Temperature Rise 55 Deg C
Type Industrial Control Transformer
UNSPSC 39121002
UPC 78590190571
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Winding COPPER

Resources

CatalogNumber 9070T100D1SF41
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
