SQD 9070T100D20

Transformer, Type T, industrial control, 100VA, 1 phase, 208/230/460V primary, 115V secondary, 55C rise

Page Loading...
SQUARE-D/SCHNEIDER
Transformer, Type T, industrial control, 100VA, 1 phase, 208/230/460V primary, 115V secondary, 55C rise

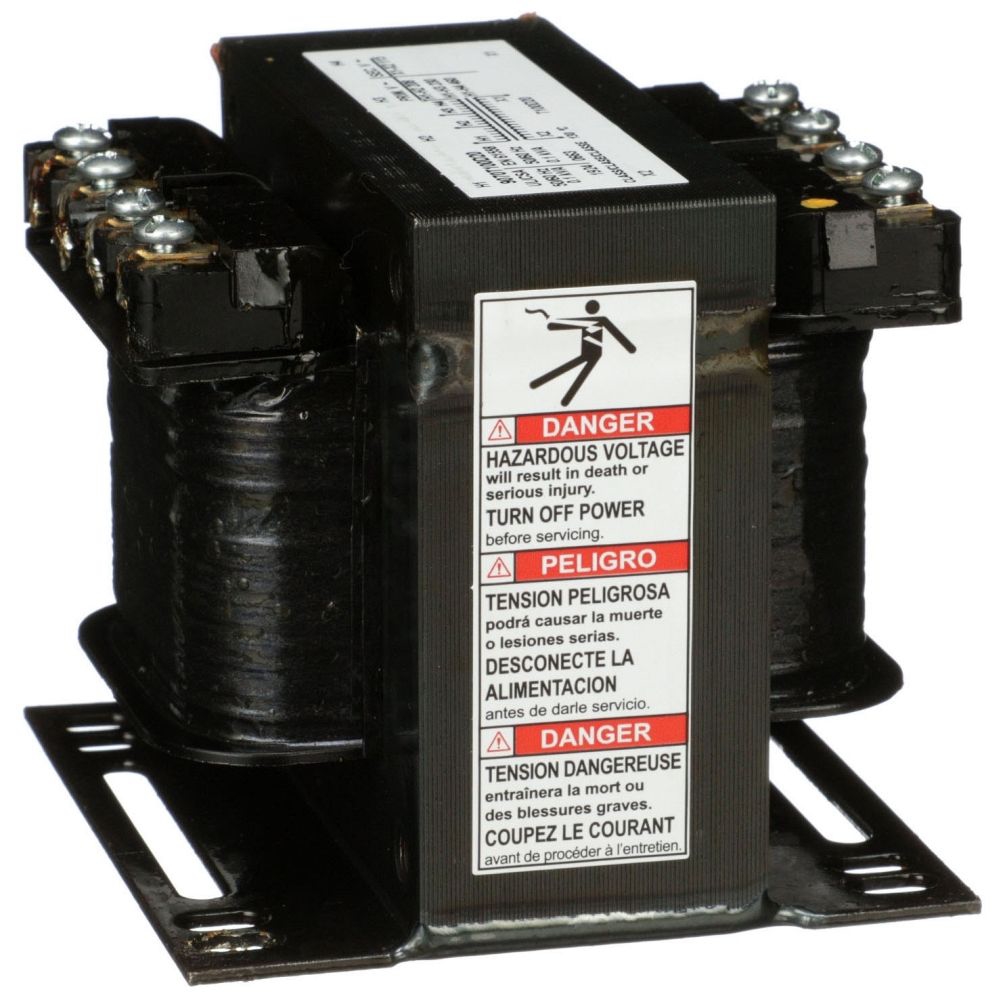

Mouse over image to zoom, click to enlarge

Description:
Transformer, Type T, industrial control, 100VA, 1 phase, 208/230/460V primary, 115V secondary, 55C rise

UPC:  78590190505

Part Number: 9070T100D20

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $249.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070T100D20
Additional Information RoHS/REACH Compliant; Type T; Number of Phase 1; Winding Material Copper
Applicable Standard EN 61558
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Catalog Number 9070T100D20
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
CountryOfOrigin MX
DDCATEGORY 2081
Directory CIS
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 50/60 Hertz
Image Location * Image
Industry ELX
Insulation Class 105
InvoiceDescription Transformer, Type T, industrial control, 100VA, 1 phase, 208/230/460V primary, 115V secondary, 55C rise;XFMR CONTROL 100VA
Item Number 90505
Long Description INDUSTRIAL CONTROL TRANSFORMER, 3.75 INCH WIDTH X 3.59 INCH DEPTH X 3.2 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558 APPLICABLE STANDARD; 0.48 INCH LENGTH X 0.2 INCH WIDTH SLOT MOUNTING
MSDS Form Number *
Model 9070
Mounting 0.48 Inch Length x 0.2 Inch Width Slot
Noun *
Power Rating 100 Volt Amp
Primary Voltage 208/230/460 Volt AC
Product Description Transformer, Type T, industrial control, 100VA, 1 phase, 208/230/460V primary, 115V secondary, 55C rise
Product Keywords WEBREADY
Product Name Power supply transformers
ProductLine SQD
Secondary Voltage 115 Volt AC
Size 3.75 Inch Width x 3.59 Inch Depth x 3.2 Inch Height
Temperature Rise 55 Deg C
Terminal Type Screw Clamp
UNSPSC 39121002
UPC 78590190505
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9070T100D20
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
