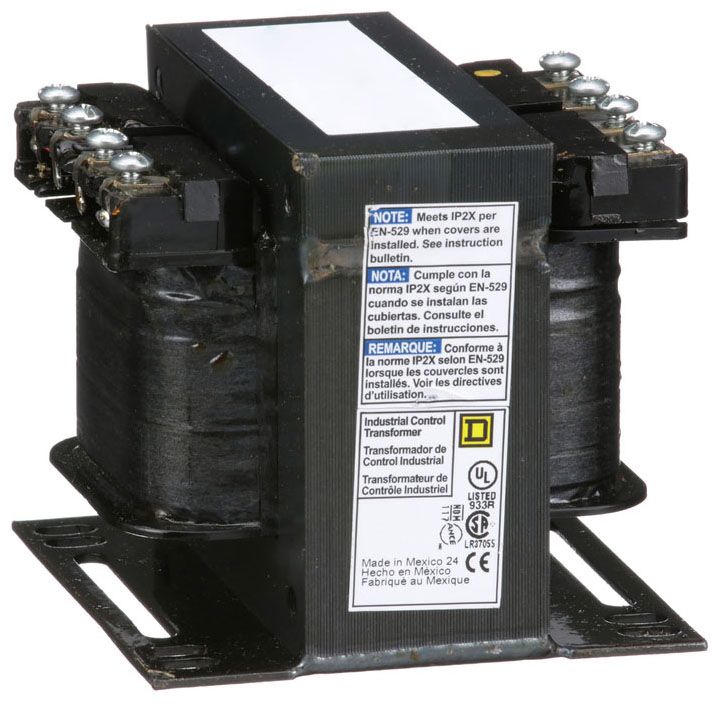

SQD 9070T150D37

Industrial control transformer, Type T, 1 phase, 150VA, 600V primary, 120/240V secondary, 50/60Hz

Page Loading...
SQUARE-D/SCHNEIDER
Industrial control transformer, Type T, 1 phase, 150VA, 600V primary, 120/240V secondary, 50/60Hz

Mouse over image to zoom, click to enlarge

Description:
Industrial control transformer, Type T, 1 phase, 150VA, 600V primary, 120/240V secondary, 50/60Hz

UPC:  78590168904

Part Number: 9070T150D37

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $627.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070T150D37
Additional Information RoHS/REACH Compliant; Type T; Number of Phase 1
Applicable Standard EN 61558
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Brand Name T
Catalog Number 9070T150D37
Certifications CSA
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
Connection SCREW CLAMP
CountryOfOrigin US
DDCATEGORY 2081
Depth 3.59 in
Directory CIS
Electrical Connection Screw clamp terminals
Enclosure OPEN
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 50/60 Hertz
Height 3.2 in
Image Location * Image
Industry ELX
Insulation 105 DEGREES C
Insulation Class 105
InvoiceDescription Industrial control transformer, Type T, 1 phase, 150VA, 600V primary, 120/240V secondary, 50/60Hz;TRANSFORMER CONTROL
Item Number 68904
KVA Rating 0.15
Long Description INDUSTRIAL CONTROL TRANSFORMER, 3.38 INCH WIDTH X 3.34 INCH DEPTH X 2.89 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558 APPLICABLE STANDARD; 0.38 INCH LENGTH X 0.2 INCH WIDTH SLOT MOUNTING
MSDS Form Number *
Model 9070
Mounting PANEL;0.38 Inch Length x 0.2 Inch Width Slot
Noun *
Phase 1-PHASE
Power Rating 150VA;150VA NULL;150 Volt Amp
Primary Voltage 550/575/600V;600 Volt AC
Product Description Industrial control transformer, Type T, 1 phase, 150VA, 600V primary, 120/240V secondary, 50/60Hz
Product Keywords WEBREADY
Product Name Power supply transformers
ProductLine SQD
Rated Power In Va Metric 150.0;150 V.A
Secondary Voltage 120/240 Volt AC
Size 3.38 Inch Width x 3.34 Inch Depth x 2.89 Inch Height
Temperature Rating 55 DEGREES C
Temperature Rise 55 Deg C
Terminal Type Screw Clamp
UNSPSC 39121002
UPC 78590168904
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 3.75 in
Winding COPPER

Resources

CatalogNumber 9070T150D37
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
