SQD 9070T2000D4

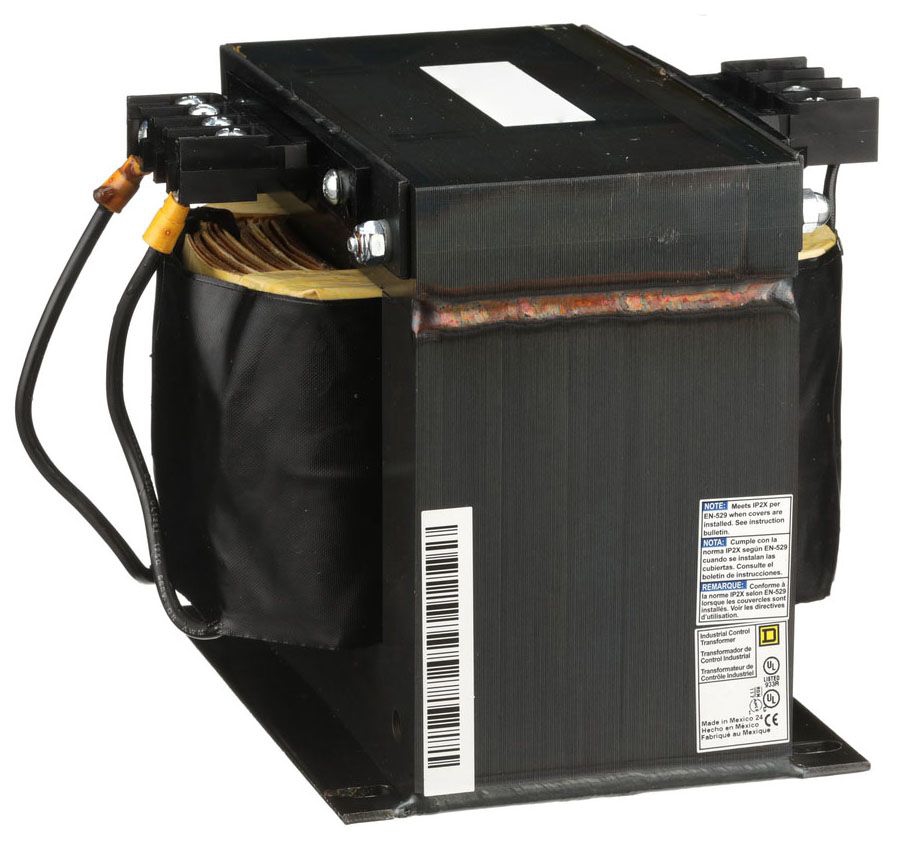

Industrial control transformer, Type T, 1 phase, 2000VA, 277V primary, 120V secondary, 50/60Hz

Page Loading...
SQUARE-D/SCHNEIDER
Industrial control transformer, Type T, 1 phase, 2000VA, 277V primary, 120V secondary, 50/60Hz

Mouse over image to zoom, click to enlarge

Description:
Industrial control transformer, Type T, 1 phase, 2000VA, 277V primary, 120V secondary, 50/60Hz

UPC:  78590131383

Part Number: 9070T2000D4

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $1,834.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070T2000D4
Additional Information RoHS/REACH Compliant; Type T; Number of Phase 1; Winding Material Copper
Applicable Standard EN 61558
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Brand Name T
Catalog Number 9070T2000D4
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
Connection SCREW CLAMP
CountryOfOrigin US
DDCATEGORY 2081
Depth 7.17 in
Directory CIS
Electrical Connection Screw clamp terminals
Enclosure OPEN
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 50/60 Hertz
Height 6.17 in
Image Location * Image
Industry ELX
Insulation 180 DEGREES C
Insulation Class 180
InvoiceDescription Industrial control transformer, Type T, 1 phase, 2000VA, 277V primary, 120V secondary, 50/60Hz;TRANSFORMER CONTROL
Item Number 31383
KVA Rating 2
Long Description INDUSTRIAL CONTROL TRANSFORMER, 7.06 INCH WIDTH X 7.17 INCH DEPTH X 6.17 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558 APPLICABLE STANDARD; 0.56 INCH LENGTH X 0.28 INCH WIDTH SLOT MOUNTING
MSDS Form Number *
Material Copper winding
Model 9070
Mounting PANEL;0.56 Inch Length x 0.28 Inch Width Slot
Noun *
Phase 1-PHASE
Power Rating 2000VA;2000VA UL;2000VA CSA;2000VA NOM;1500VA NULL;2000 Volt Amp
Primary Voltage 277V;277 Volt AC
Product Description Industrial control transformer, Type T, 1 phase, 2000VA, 277V primary, 120V secondary, 50/60Hz
Product Keywords WEBREADY
Product Name Power supply transformers
ProductLine SQD
Rated Power In Va Metric 2000.0;2000 VA UL;2000 VA CSA;2000 VA NOM;1500 VA V.A
Secondary Voltage 120 Volt AC
Size 7.06 Inch Width x 7.17 Inch Depth x 6.17 Inch Height
Temperature Rating 115 DEGREES C
Temperature Rise 115 Deg C
Terminal Type Screw Clamp
UNSPSC 39121002
UPC 78590131383
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 7.06 in
Winding COPPER

Resources

CatalogNumber 9070T2000D4
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
