SQD 9070T250D31

Transformer, Type T, industrial control, 250VA, 1 phase, 240x480V primary, 120/240V secondary, 80C rise

Page Loading...
SQUARE-D/SCHNEIDER
Transformer, Type T, industrial control, 250VA, 1 phase, 240x480V primary, 120/240V secondary, 80C rise

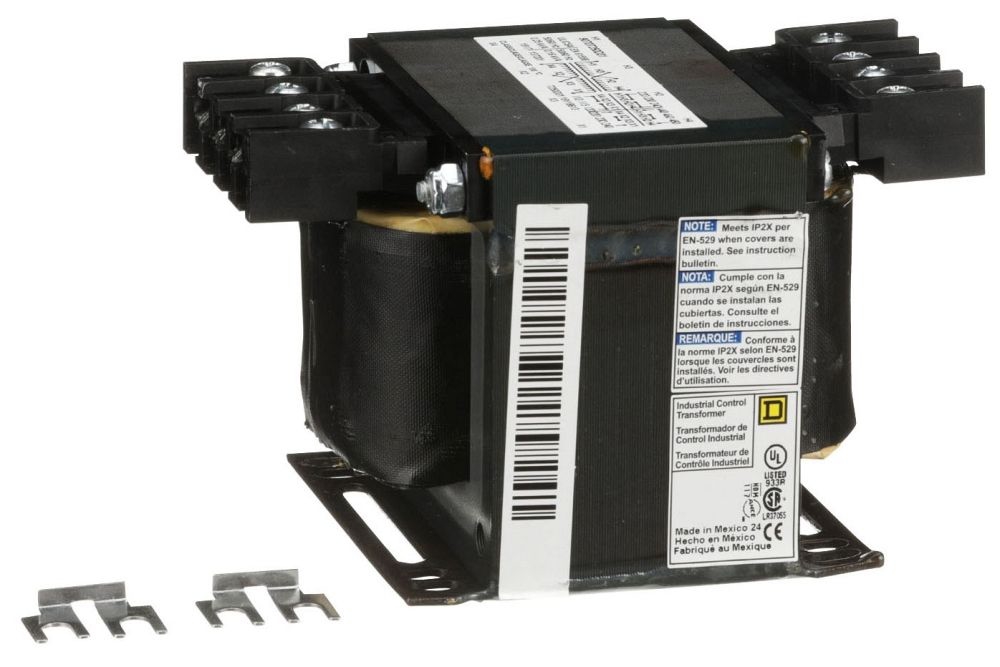

Mouse over image to zoom, click to enlarge

Description:
Transformer, Type T, industrial control, 250VA, 1 phase, 240x480V primary, 120/240V secondary, 80C rise

UPC:  78590184558

Part Number: 9070T250D31

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $447.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070T250D31
Additional Information RoHS/REACH Compliant; Type T; Number of Phase 1; Winding Material Copper
Applicable Standard EN 61558
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Brand Name T
Catalog Number 9070T250D31
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
Connection SCREW CLAMP
CountryOfOrigin MX
DDCATEGORY 2081
Depth 5.3 in
Directory CIS
Electrical Connection Screw clamp terminals
Enclosure NOT RATED (OPEN DEVICE)
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 50/60 Hertz
Height 3.2 in
Image Location * Image
Industry ELX
Insulation 130 C
Insulation Class 130
InvoiceDescription Industrial control transformer, Type T, 1 phase, 250VA, 240x480V primary, 120/240V secondary, 50/60Hz;XFMR CONTROL 250VA
Item Number 84558
KVA Rating 250 VA,250 VA UL-250 VA CSA-250 VA NOM-160 VA CE
Long Description INDUSTRIAL CONTROL TRANSFORMER, 3.75 INCH WIDTH X 5.3 INCH DEPTH X 3.2 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558 APPLICABLE STANDARD; 0.38 INCH LENGTH X 0.2 INCH WIDTH SLOT MOUNTING
MSDS Form Number *
Material Copper winding
Model 9070
Mounting PANEL;0.38 Inch Length x 0.2 Inch Width Slot
Noun *
Phase 1-PHASE
Power Rating 250VA;250VA UL;250VA CSA;250VA NOM;160VA NULL;250 Volt Amp
Primary Voltage 220 X 440 V 110/220 V-230 X 460 V 115/230 V-240 X 480 V 120/240 V,240 X 480 V-220 X 440 V-230 X 460 V;240/480 Volt AC, 230/460 Volt AC, 220/440 Volt AC
Product Description Transformer, Type T, industrial control, 250VA, 1 phase, 240x480V primary, 120/240V secondary, 80C rise
Product Keywords WEBREADY
Product Name Power supply transformers
ProductLine SQD
Rated Power In Va Metric 250.0;250 VA UL;250 VA CSA;250 VA NOM;160 VA V.A
Secondary Voltage 120/240 Volt AC, 115/230 Volt AC, 110/220 Volt AC
Size 3.75 Inch Width x 5.3 Inch Depth x 3.2 Inch Height
Temperature Rating 80 DEGREES C
Temperature Rise 80 Deg C
Terminal Type Screw Clamp
UNSPSC 39121002
UPC 78590184558
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 3.75 in
Winding COPPER

Resources

CatalogNumber 9070T250D31
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
