SQD 9070T250D36

Transformer, Type T, industrial control, 250VA, 1 phase, 600V primary, 12/24V secondary, 80C rise

Page Loading...
SQUARE-D/SCHNEIDER
Transformer, Type T, industrial control, 250VA, 1 phase, 600V primary, 12/24V secondary, 80C rise

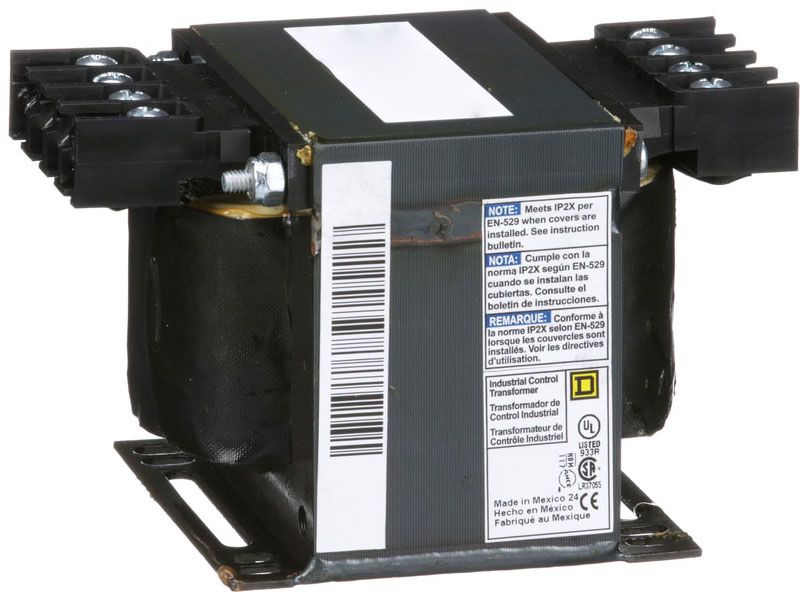

Mouse over image to zoom, click to enlarge

Description:
Transformer, Type T, industrial control, 250VA, 1 phase, 600V primary, 12/24V secondary, 80C rise

UPC:  78590168912

Part Number: 9070T250D36

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $861.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070T250D36
Additional Information RoHS/REACH Compliant; Type T; Number of Phase 1; Winding Material Copper
Applicable Standard EN 61558
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Brand Name T
Catalog Number 9070T250D36
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
Connection SCREW CLAMP
CountryOfOrigin US
DDCATEGORY 2081
Depth 5.25 in
Directory CIS
Electrical Connection Screw clamp terminals
Enclosure OPEN
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 50/60 Hertz
Height 3.25 in
Image Location * Image
Industry ELX
Insulation 130 DEGREES C
Insulation Class 130
InvoiceDescription Transformer, Type T, industrial control, 250 VA, 600 VAC primary / 12/24 VAC secondary, 1 phase, 50/60 Hz, 80 C rise;TRANSFORMER CONTROL
Item Number 68912
KVA Rating 0.25
Long Description INDUSTRIAL CONTROL TRANSFORMER, 3.75 INCH WIDTH X 5.25 INCH DEPTH X 3.25 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558 APPLICABLE STANDARD; 0.38 INCH LENGTH X 0.2 INCH WIDTH SLOT MOUNTING
MSDS Form Number *
Material Copper winding
Model 9070
Mounting PANEL;0.38 Inch Length x 0.2 Inch Width Slot
Noun *
Phase 1-PHASE
Power Rating 250VA;250VA UL;250VA CSA;250VA NOM;160VA NULL;250 Volt Amp
Primary Voltage 600 V;600 Volt AC
Product Description Transformer, Type T, industrial control, 250VA, 1 phase, 600V primary, 12/24V secondary, 80C rise
Product Keywords WEBREADY
Product Name Power supply transformers
ProductLine SQD
Rated Power In Va Metric 250.0;250 VA UL;250 VA CSA;250 VA NOM;160 VA V.A
Secondary Voltage 12/24 Volt AC
Size 3.75 Inch Width x 5.25 Inch Depth x 3.25 Inch Height
Temperature Rating 80 DEGREES C
Temperature Rise 80 Deg C
Terminal Type Screw Clamp
UNSPSC 39121002
UPC 78590168912
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 3.75 in
Winding COPPER

Resources

CatalogNumber 9070T250D36
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
