SQD 9070T300D5

Industrial control transformer, Type T, 1 phase, 300VA, 600V primary, 120V secondary, 50/60Hz

Page Loading...
SQUARE-D/SCHNEIDER
Industrial control transformer, Type T, 1 phase, 300VA, 600V primary, 120V secondary, 50/60Hz

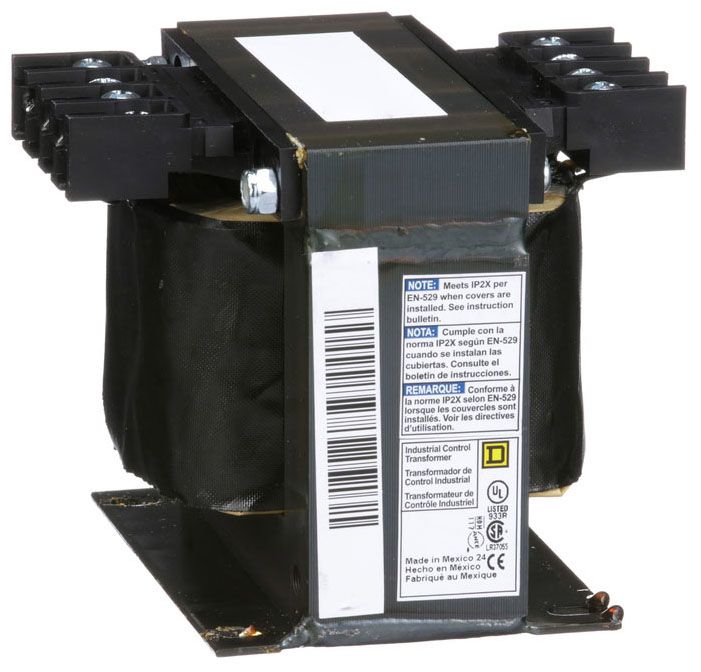

Mouse over image to zoom, click to enlarge

Description:
Industrial control transformer, Type T, 1 phase, 300VA, 600V primary, 120V secondary, 50/60Hz

UPC:  78590190566

Part Number: 9070T300D5

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $541.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070T300D5
Additional Information RoHS/REACH Compliant; Type T; Number of Phase 1; Winding Material Copper
Applicable Standard EN 61558
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Brand Name T
Catalog Number 9070T300D5
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
Connection SCREW CLAMP
CountryOfOrigin MX
DDCATEGORY 2081
Depth 4.74 in
Directory CIS
Electrical Connection Screw clamp terminals
Enclosure OPEN
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 50/60 Hertz
Height 3.84 in
Image Location * Image
Industry ELX
Insulation 130 DEGREES C
Insulation Class 130
InvoiceDescription Industrial control transformer, Type T, 1 phase, 300VA, 600V primary, 120V secondary, 50/60Hz;TRANSFORMER CONTROL
Item Number 90566
KVA Rating 0.3
Long Description INDUSTRIAL CONTROL TRANSFORMER, 4.5 INCH WIDTH X 4.74 INCH DEPTH X 3.84 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558 APPLICABLE STANDARD; 0.38 INCH LENGTH X 0.2 INCH WIDTH SLOT MOUNTING
MSDS Form Number *
Material Copper winding
Model 9070
Mounting PANEL;0.38 Inch Length x 0.2 Inch Width Slot
Noun *
Phase 1-PHASE
Power Rating 300VA;200VA;300VA UL;300VA CSA;300VA NOM;200VA NULL;300 Volt Amp
Primary Voltage 600V OR 575V OR 550V;600 Volt AC
Product Description Industrial control transformer, Type T, 1 phase, 300VA, 600V primary, 120V secondary, 50/60Hz
Product Keywords WEBREADY
Product Name Power supply transformers
ProductLine SQD
Rated Power In Va Metric 300.0;300 VA UL;300 VA CSA;300 VA NOM;200 VA V.A
Secondary Voltage 120 Volt AC
Size 4.5 Inch Width x 4.74 Inch Depth x 3.84 Inch Height
Temperature Rating 80 DEGREES C
Temperature Rise 80 Deg C
Terminal Type Screw Clamp
UNSPSC 39121002
UPC 78590190566
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 4.5 in
Winding COPPER

Resources

CatalogNumber 9070T300D5
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
