SQD 9070T5000D31

Industrial control transformer, Type T, 1 phase, 5000VA, 240x480V primary, 120/240V secondary, 50/60Hz

Page Loading...
SQUARE-D/SCHNEIDER
Industrial control transformer, Type T, 1 phase, 5000VA, 240x480V primary, 120/240V secondary, 50/60Hz

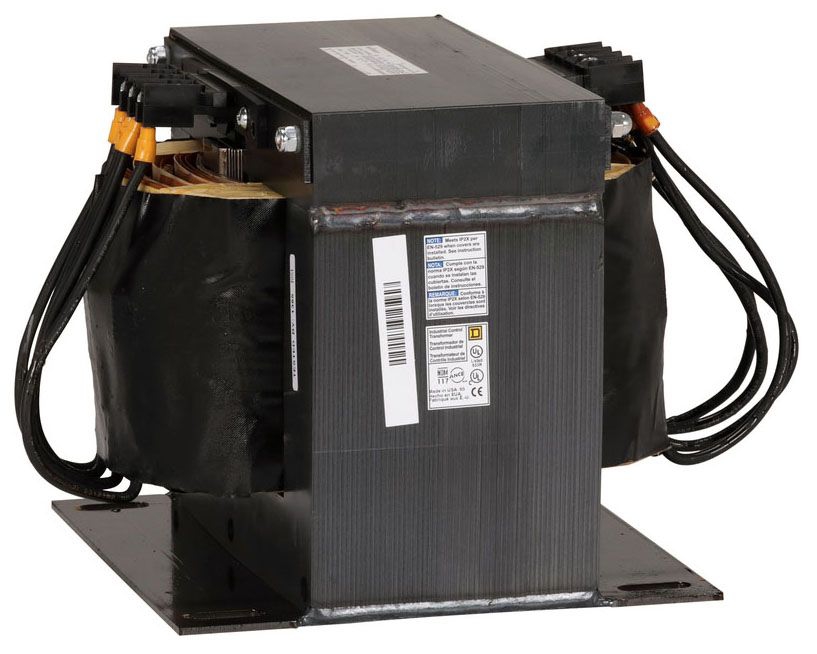

Mouse over image to zoom, click to enlarge

Description:
Industrial control transformer, Type T, 1 phase, 5000VA, 240x480V primary, 120/240V secondary, 50/60Hz

UPC:  78590177665

Part Number: 9070T5000D31

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $3,618.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070T5000D31
Additional Information RoHS/REACH Compliant; Type T; Number of Phase 1; Winding Material Copper
Applicable Standard EN 61558
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Brand Name T
Catalog Number 9070T5000D31
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
Connection SCREW CLAMP
CountryOfOrigin US
DDCATEGORY 2081
Depth 9.15 in
Directory CIS
Electrical Connection Screw clamp terminals
Enclosure OPEN
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 50/60 Hertz
Height 8.75 in
Image Location * Image
Industry ELX
Insulation 180 DEGREES C
Insulation Class 180
InvoiceDescription Industrial control transformer, Type T, 1 phase, 5000VA, 240x480V primary, 120/240V secondary, 50/60Hz;TRFMR CONTROL
Item Number 77665
KVA Rating 5
Long Description INDUSTRIAL CONTROL TRANSFORMER, 9 INCH WIDTH X 9.15 INCH DEPTH X 8.75 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558 APPLICABLE STANDARD; 1.13 INCH LENGTH X 0.44 INCH WIDTH SLOT MOUNTING
MSDS Form Number *
Material Copper winding
Model 9070
Mounting PANEL;1.13 Inch Length x 0.44 Inch Width Slot
Noun *
Phase 1-PHASE
Power Rating 5000VA;5000VA UL;5000VA CSA;5000VA NOM;3000VA;5000 Volt Amp
Primary Voltage 240X480V OR 230X460V OR 220X440V;240/480 Volt AC, 230/460 Volt AC, 220/440 Volt AC
Product Description Industrial control transformer, Type T, 1 phase, 5000VA, 240x480V primary, 120/240V secondary, 50/60Hz
Product Keywords WEBREADY
Product Name Power supply transformers
ProductLine SQD
Rated Power In Va Metric 5000.0;5000 VA UL;5000 VA CSA;5000 VA NOM;3000 VA V.A
Secondary Voltage 120/240 Volt AC, 115/230 Volt AC, 110/220 Volt AC
Size 9 Inch Width x 9.15 Inch Depth x 8.75 Inch Height
Temperature Rating 115 DEGREES C
Temperature Rise 115 Deg C
Terminal Type Screw Clamp
UNSPSC 39121002
UPC 78590177665
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 9.0 in
Winding COPPER

Resources

CatalogNumber 9070T5000D31
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
