SQD 9070T500D40

Transformer, Type T, industrial control, 500 VA, multiple voltages, 1 phase, 50/60 Hz, 115 C rise

Page Loading...
SQUARE-D/SCHNEIDER
Transformer, Type T, industrial control, 500 VA, multiple voltages, 1 phase, 50/60 Hz, 115 C rise

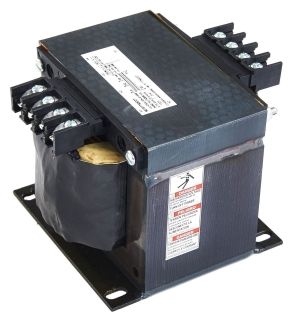

Mouse over image to zoom, click to enlarge

Description:
Transformer, Type T, industrial control, 500 VA, multiple voltages, 1 phase, 50/60 Hz, 115 C rise

UPC:  78590139167

Part Number: 9070T500D40

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $1,458.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070T500D40
Additional Information NUMBER OF PHASE 1; WINDING MATERIAL COPPER
Applicable Standard EN 61558/01.89
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Catalog Number 9070T500D40
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
CountryOfOrigin US
DDCATEGORY 2081
Directory CIS
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 50/60 HZ
Image Location * Image
Industry ELX
Insulation Class 180
InvoiceDescription Transformer, Type T, industrial control, 500 VA, multiple voltages, 1 phase, 50/60 Hz, 115 C rise;TRFMR CONTROL 500VA
Item Number 39167
Long Description INDUSTRIAL CONTROL TRANSFORMER, 5.25 INCH W X 5.66 INCH D X 4.43 INCH H SIZE; 50/60 HZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558/01.89 APPLICABLE STANDARD; 0.38 INCH L X 0.2 INCH W SLOT MOUNTING
MSDS Form Number *
Model 9070T
Mounting 0.38 INCH L X 0.2 INCH W SLOT
Noun *
Phase 1 phase
Power Rating 500 VA (UL/CSA/NOM), 300 VA (CE)
Primary Voltage 208/240/380/416/480 V
Product Description Transformer, Type T, industrial control, 500 VA, multiple voltages, 1 phase, 50/60 Hz, 115 C rise
Product Keywords WEBREADY
Product Name Power supply transformers
Product Or Component Type Industrial Control Transformer
ProductLine SQD
Rated Power In Va Metric 500.0;500 V.A
Secondary Voltage 120 V
Size 5.25 INCH W X 5.66 INCH D X 4.43 INCH H
Temperature Rise 115 DEG C
Terminal Type SCREW
UNSPSC 39121002
UPC 78590139167
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9070T500D40
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
