SQD 9070T50D15

Transformer, Type T, industrial control, 50VA, 1 phase, 240x480V primary, 25/120V secondary, 55C rise

Page Loading...
SQUARE-D/SCHNEIDER
Transformer, Type T, industrial control, 50VA, 1 phase, 240x480V primary, 25/120V secondary, 55C rise

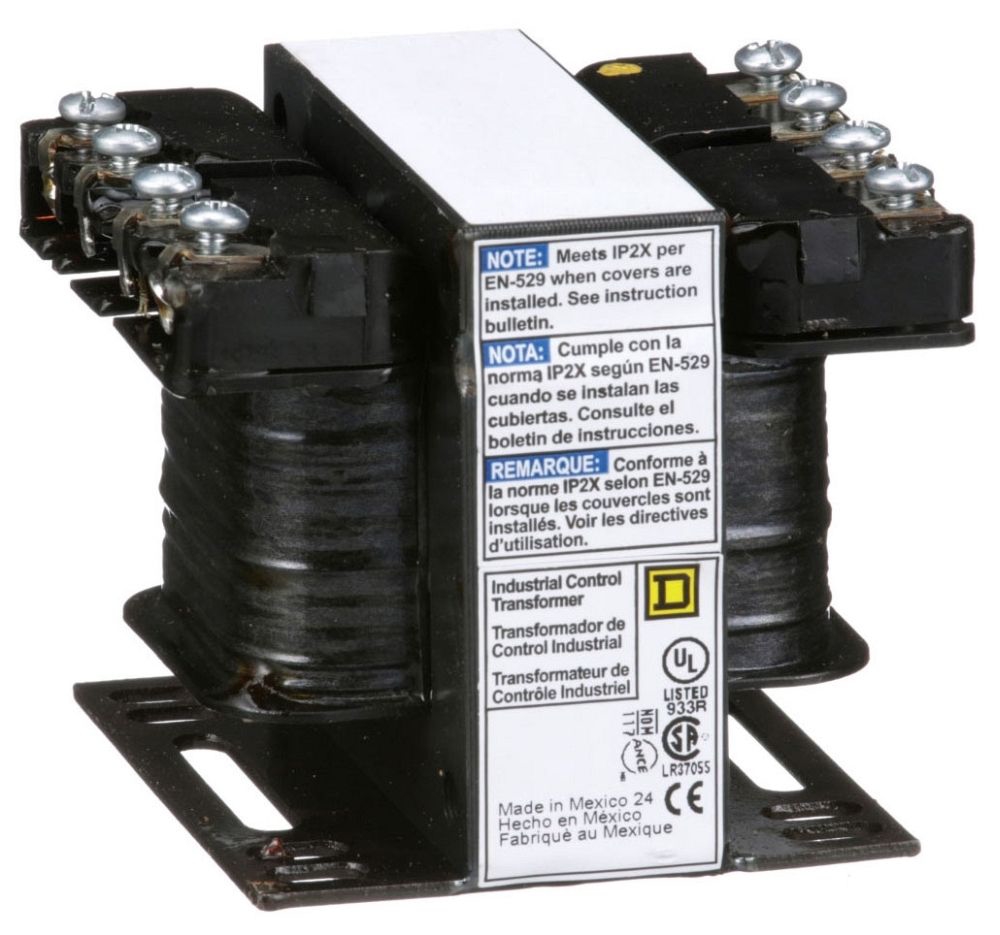

Mouse over image to zoom, click to enlarge

Description:
Transformer, Type T, industrial control, 50VA, 1 phase, 240x480V primary, 25/120V secondary, 55C rise

UPC:  78590190550

Part Number: 9070T50D15

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $162.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070T50D15
Additional Information RoHS/REACH Compliant; Type T; Number of Phase 1; Winding Material Copper
Applicable Standard EN 61558
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Catalog Number 9070T50D15
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
CountryOfOrigin MX
DDCATEGORY 2081
Directory CIS
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 50/60 Hertz
Image Location * Image
Industry ELX
Insulation Class 105
InvoiceDescription Transformer, Type T, industrial control, 50VA, 1 phase, 240x480V primary, 25/120V secondary, 55C rise;XFMR CONTROL 50VA
Item Number 90550
Long Description INDUSTRIAL CONTROL TRANSFORMER, 3 INCH WIDTH X 3.09 INCH DEPTH X 2.58 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558 APPLICABLE STANDARD; 0.38 INCH LENGTH X 0.2 INCH WIDTH SLOT MOUNTING; 50 VOLT AMP POWER RATING
MSDS Form Number *
Model 9070
Mounting 0.38 Inch Length x 0.2 Inch Width Slot
Noun *
Power Rating 50 Volt Amp
Primary Voltage 240/480 Volt AC
Product Description Transformer, Type T, industrial control, 50VA, 1 phase, 240x480V primary, 25/120V secondary, 55C rise
Product Keywords WEBREADY
Product Name Power supply transformers
ProductLine SQD
Secondary Voltage 120/24 Volt AC
Size 3 Inch Width x 3.09 Inch Depth x 2.58 Inch Height
Temperature Rise 55 Deg C
Terminal Type Screw Clamp
UNSPSC 39121002
UPC 78590190550
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 9070T50D15
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
