SQD 9070T50D50

Industrial control transformer, Type T, 1 phase, 50VA, 240/416/480/600V primary, 99/120/130V secondary, 50/60Hz

Page Loading...
SQUARE-D/SCHNEIDER
Industrial control transformer, Type T, 1 phase, 50VA, 240/416/480/600V primary, 99/120/130V secondary, 50/60Hz

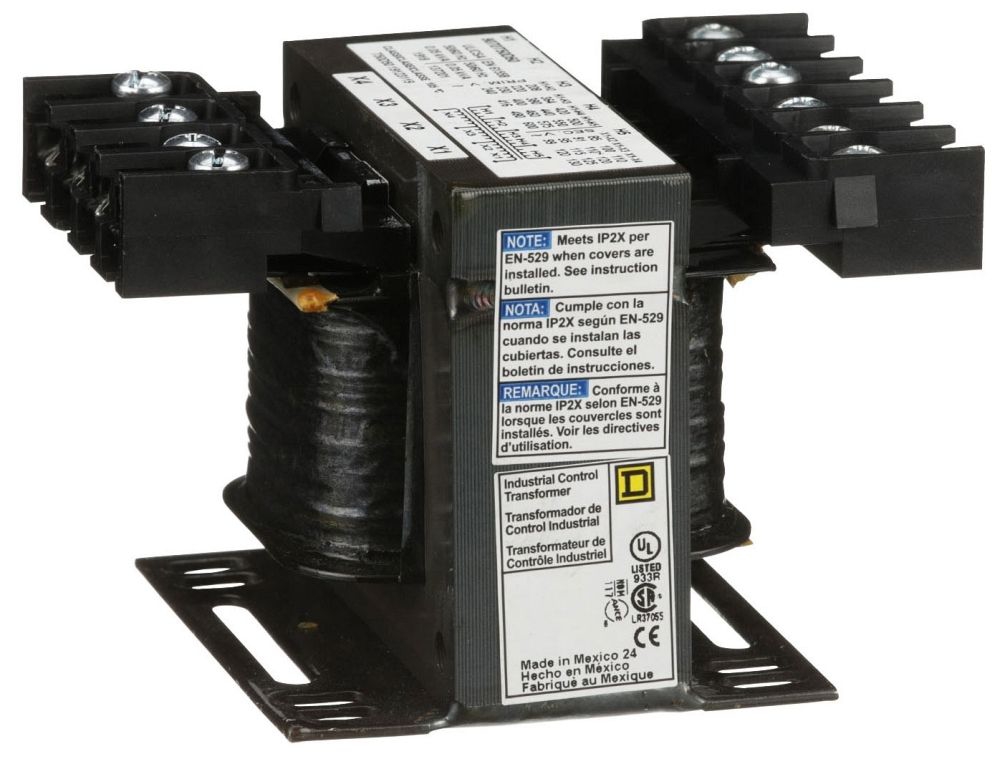

Mouse over image to zoom, click to enlarge

Description:
Industrial control transformer, Type T, 1 phase, 50VA, 240/416/480/600V primary, 99/120/130V secondary, 50/60Hz

UPC:  78590132724

Part Number: 9070T50D50

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $378.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070T50D50
Additional Information RoHS/REACH Compliant; Type T; Number of Phase 1; Winding Material Copper
Applicable Standard EN 61558
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Brand Name T
Catalog Number 9070T50D50
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
Connection SCREW CLAMP
CountryOfOrigin MX
DDCATEGORY 2081
Depth 4.43 in
Directory CIS
Electrical Connection Screw clamp terminals
Enclosure NOT RATED (OPEN DEVICE)
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 50/60 Hertz
Height 2.89 in
Image Location * Image
Industry ELX
Insulation 105 C
Insulation Class 105
InvoiceDescription Industrial control transformer, Type T, 1 phase, 50VA, 240/416/480/600V primary, 99/120/130V secondary, 50/60Hz;TRFMR CONTROL 50VA
Item Number 32724
KVA Rating 50 VA,50 VA
Long Description INDUSTRIAL CONTROL TRANSFORMER, 3.38 INCH WIDTH X 4.43 INCH DEPTH X 2.89 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558 APPLICABLE STANDARD; 0.38 INCH LENGTH X 0.2 INCH WIDTH SLOT MOUNTING
MSDS Form Number *
Material Copper winding
Model 9070
Mounting PANEL;0.38 Inch Length x 0.2 Inch Width Slot
Noun *
Phase 1-PHASE
Power Rating 50 Volt Amp
Primary Voltage 208/360/416/520 V 85/104/115 V-220/380/440/550 V 90/110/120 V-230/400/460/575 V 95/115/125 V-240/416/480/600 V 99/120/130 V,240/416/480/600 V-208/360/416/520 V-230/400/460/575 V-220/380/440/550 V;240/416/480/600 Volt AC, 230/400/460/575 Volt AC, 220/380/440/550 Volt AC, 208/360/416/520 Volt AC
Product Description Industrial control transformer, Type T, 1 phase, 50VA, 240/416/480/600V primary, 99/120/130V secondary, 50/60Hz
Product Keywords WEBREADY
Product Name Power supply transformers
ProductLine SQD
Rated Power In Va Metric 50.0;50 V.A
Secondary Voltage 99/120/130 Volt AC, 95/115/125 Volt AC, 90/110/120 Volt AC, 85/104/115 Volt AC
Size 3.38 Inch Width x 4.43 Inch Depth x 2.89 Inch Height
Temperature Rating 55 DEGREES C
Temperature Rise 55 Deg C
Terminal Type Screw Clamp
UNSPSC 39121002
UPC 78590132724
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 3.38 in
Winding COPPER

Resources

CatalogNumber 9070T50D50
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
