SQD 9070T50D54

Transformer, Type T, industrial control, 50 VA, 120/240 VAC primary / 12/24 VAC secondary, 1 phase, 50/60 Hz, 55 C rise

Page Loading...
SQUARE-D/SCHNEIDER
Transformer, Type T, industrial control, 50 VA, 120/240 VAC primary / 12/24 VAC secondary, 1 phase, 50/60 Hz, 55 C rise

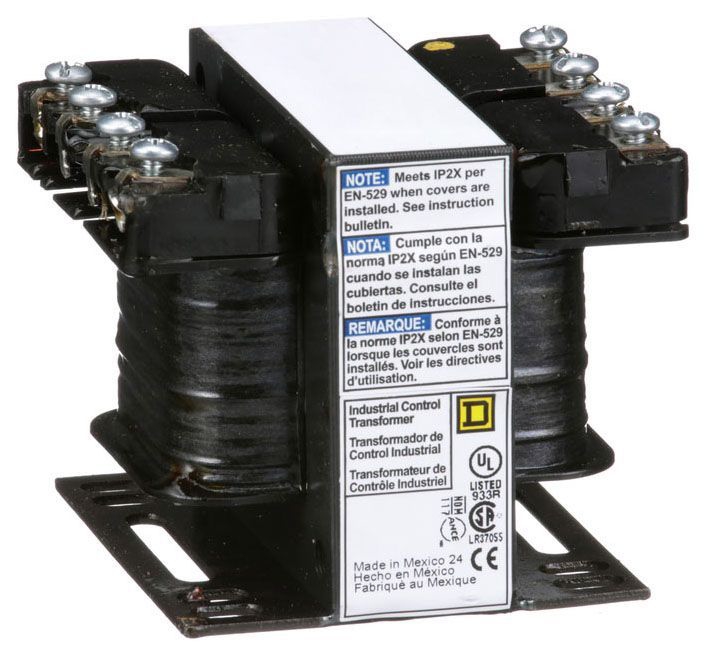

Mouse over image to zoom, click to enlarge

Description:
Transformer, Type T, industrial control, 50 VA, 120/240 VAC primary / 12/24 VAC secondary, 1 phase, 50/60 Hz, 55 C rise

UPC:  78590168897

Part Number: 9070T50D54

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $562.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070T50D54
Additional Information RoHS/REACH Compliant; Type T; Number of Phase 1
Applicable Standard EN 61558
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Brand Name T
Catalog Number 9070T50D54
Certifications UL Listed
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
Connection SCREW CLAMP
CountryOfOrigin US
DDCATEGORY 2081
Directory CIS
Electrical Connection Screw clamp terminals
Enclosure NOT RATED (OPEN DEVICE)
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 50/60 Hertz
Image Location * Image
Industry ELX
Insulation 105 C
Insulation Class 105
InvoiceDescription Transformer, Type T, industrial control, 50 VA, 120/240 VAC primary / 12/24 VAC secondary, 1 phase, 50/60 Hz, 55 C rise;XFORMER CONTROL 50VA
Item Number 68897
KVA Rating 50 VA,50 VA
Long Description INDUSTRIAL CONTROL TRANSFORMER, 50/60 HERTZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558 APPLICABLE STANDARD; 0.38 INCH LENGTH X 0.2 INCH WIDTH SLOT MOUNTING; 50 VOLT AMP POWER RATING; SCREW CLAMP TERMINAL TYPE
MSDS Form Number *
Model 9070
Mounting PANEL;0.38 Inch Length x 0.2 Inch Width Slot
Noun *
Phase 1-PHASE
Power Rating 50 Volt Amp
Primary Voltage 120 X 240 V,120 X 240 V 12/24 V;120/240 Volt AC
Product Description Transformer, Type T, industrial control, 50 VA, 120/240 VAC primary / 12/24 VAC secondary, 1 phase, 50/60 Hz, 55 C rise
Product Keywords WEBREADY
Product Name Power supply transformers
ProductLine SQD
Rated Power In Va Metric 50.0;50 V.A
Secondary Voltage 12/24 Volt AC
Temperature Rating 55 DEGREES C
Temperature Rise 55 Deg C
Terminal Type Screw Clamp
UNSPSC 39121002
UPC 78590168897
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Winding COPPER

Resources

CatalogNumber 9070T50D54
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
