SQD 9070TF100D13

Transformer, Type TF, industrial control, 100 VA, 120 VAC primary / 12/24 VDC secondary, 1 phase, 50/60 Hz, 55 C rise

Page Loading...
SQUARE-D/SCHNEIDER
Transformer, Type TF, industrial control, 100 VA, 120 VAC primary / 12/24 VDC secondary, 1 phase, 50/60 Hz, 55 C rise

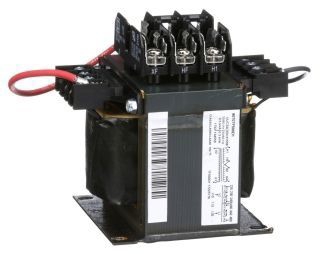

Mouse over image to zoom, click to enlarge

Description:
Transformer, Type TF, industrial control, 100 VA, 120 VAC primary / 12/24 VDC secondary, 1 phase, 50/60 Hz, 55 C rise

UPC:  78590115867

Part Number: 9070TF100D13

UNSPSC: 39121002

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070TF100D13
Additional Information RoHS/REACH Compliant; Type TF; Number of Phase 1
Applicable Standard EN 61558
Application DEVELOP TO HELP CUSTOMERS COMPLY WITH UL STANDARD 508 AND NEC 450
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Brand Name Square D
Catalog Number 9070TF100D13
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
Connection SCREW CLAMP
Country Of Origin USA
CountryOfOrigin US
DDCATEGORY 2081
Directory CIS
Enclosure OPEN
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 50/60 Hertz
Image Location * Image
Industry ELX
InvoiceDescription Transformer, Type TF, industrial control, 100 VA, 120 VAC primary / 12/24 VDC secondary, 1 phase, 50/60 Hz, 55 C rise;TRANSFORMER
Item Number 15867
KVA Rating 0.1
Long Description INDUSTRIAL CONTROL TRANSFORMER, 50/60 HERTZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558 APPLICABLE STANDARD; 100 VOLT AMP POWER RATING; 120 VOLT AC PRIMARY VOLTAGE; 12/24 VOLT AC SECONDARY VOLTAGE; 55 DEG C TEMPERATURE RISE
MSDS Form Number *
Model 9070
Mounting PANEL
Noun *
Phase 1-PHASE
Power Rating 100 Volt Amp
Primary Voltage 120V;120 Volt AC
Product Description Transformer, Type TF, industrial control, 100 VA, 120 VAC primary / 12/24 VDC secondary, 1 phase, 50/60 Hz, 55 C rise
Product Keywords WEBREADY
Product Name Power supply transformers
ProductLine SQD
Secondary Voltage 12/24V;12/24 Volt AC
Standard UL LISTED, CSA, CE MARKED
Temperature Rise 55 Deg C
Type INDUSTRIAL CONTROL TRANSFORMER
UNSPSC 39121002
UPC 78590115867
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Winding COPPER

Resources

CatalogNumber 9070TF100D13
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
