SQD 9070TF350D1

Industrial control transformer, Type TF, 1 phase, 350VA, 240x480V primary, 120V secondary, 50/60Hz

Page Loading...
SQUARE-D/SCHNEIDER
Industrial control transformer, Type TF, 1 phase, 350VA, 240x480V primary, 120V secondary, 50/60Hz

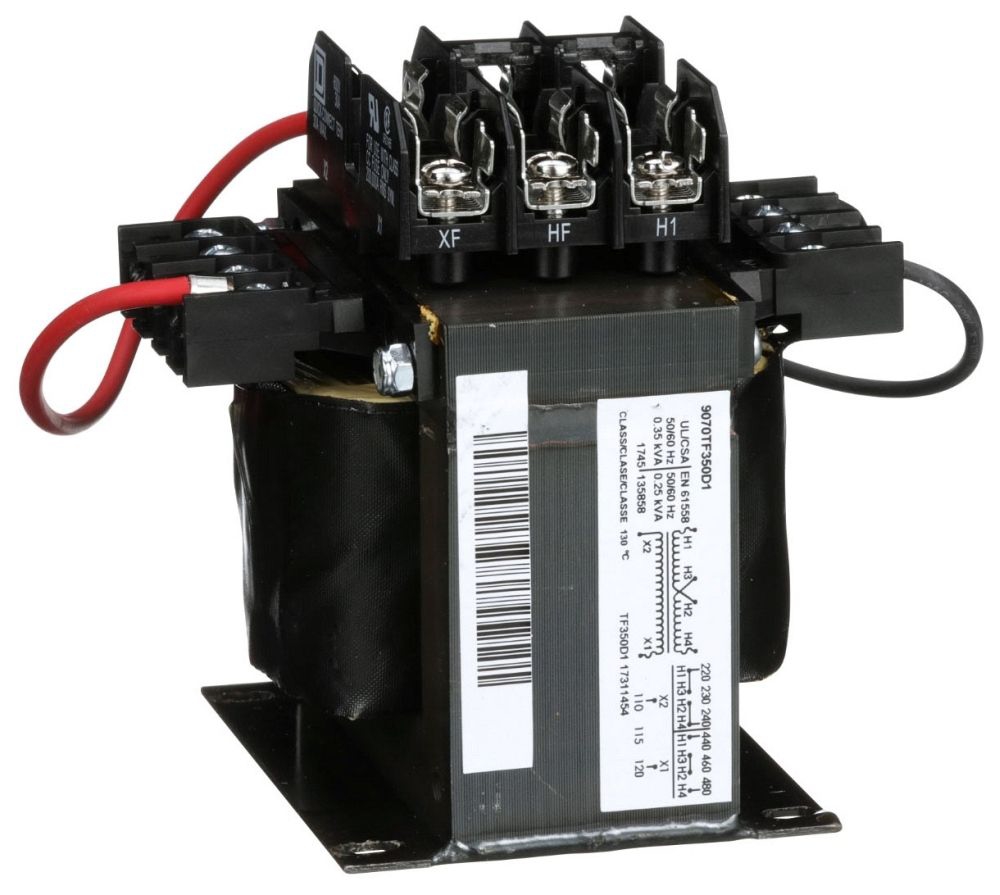

Mouse over image to zoom, click to enlarge

Description:
Industrial control transformer, Type TF, 1 phase, 350VA, 240x480V primary, 120V secondary, 50/60Hz

UPC:  78590190488

Part Number: 9070TF350D1

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $479.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070TF350D1
Additional Information RoHS/REACH Compliant; Type TF; Number of Phase 1; Winding Material Copper
Applicable Standard EN 61558
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Brand Name TF
Catalog Number 9070TF350D1
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
Connection SCREW CLAMP
CountryOfOrigin MX
DDCATEGORY 2081
Depth 5.11 in
Directory CIS
Electrical Connection Screw clamp terminals
Enclosure NOT RATED (OPEN DEVICE)
Families 2081
Family Description Core & Coil Industrial Control Transformers
Frequency Rating 50/60 Hertz
Fuse Type 0.41 x 1.50 in CC top
Height 5.13 in
Image Location * Image
Industry ELX
Insulation 130 C
Insulation Class 130
InvoiceDescription Industrial control transformer, Type TF, 1 phase, 350VA, 240x480V primary, 120V secondary, 50/60Hz;TRANSFORMER CONTROL
Item Number 90488
KVA Rating 350 VA,350 VA UL-350 VA CSA-350 VA NOM-250 VA CE
Long Description INDUSTRIAL CONTROL TRANSFORMER, 4.5 INCH WIDTH X 5.11 INCH DEPTH X 5.13 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558 APPLICABLE STANDARD; 0.38 INCH LENGTH X 0.2 INCH WIDTH SLOT MOUNTING
MSDS Form Number *
Material Copper winding
Model 9070
Mounting PANEL;0.38 Inch Length x 0.2 Inch Width Slot
Noun *
Phase 1-PHASE
Power Rating 350 Volt Amp
Primary To Secondary Voltage 220 x 440 V 110 V;230 x 460 V 115 V;240 x 480 V 120 V
Primary Voltage 240 x 480 V;230 x 460 V;220 x 440 V;220 x 440 V 110 V;230 x 460 V 115 V;240 x 480 V 120 V;240/480 Volt AC, 230/460 Volt AC, 220/440 Volt AC
Product Description Industrial control transformer, Type TF, 1 phase, 350VA, 240x480V primary, 120V secondary, 50/60Hz
Product Keywords WEBREADY
Product Name Power supply transformers
ProductLine SQD
Rated Power In Va Metric 350.0;350 VA UL;350 VA CSA;350 VA NOM;250 VA V.A
Secondary Voltage 110/115/120 Volt AC
Size 4.5 Inch Width x 5.11 Inch Depth x 5.13 Inch Height
Temperature Rating 80 DEGREES C
Temperature Rise 80 Deg C
Terminal Type Screw Clamp
UNSPSC 39121002
UPC 78590190488
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 4.5 in
Winding COPPER

Resources

CatalogNumber 9070TF350D1
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
