SQD 9070TF350D3

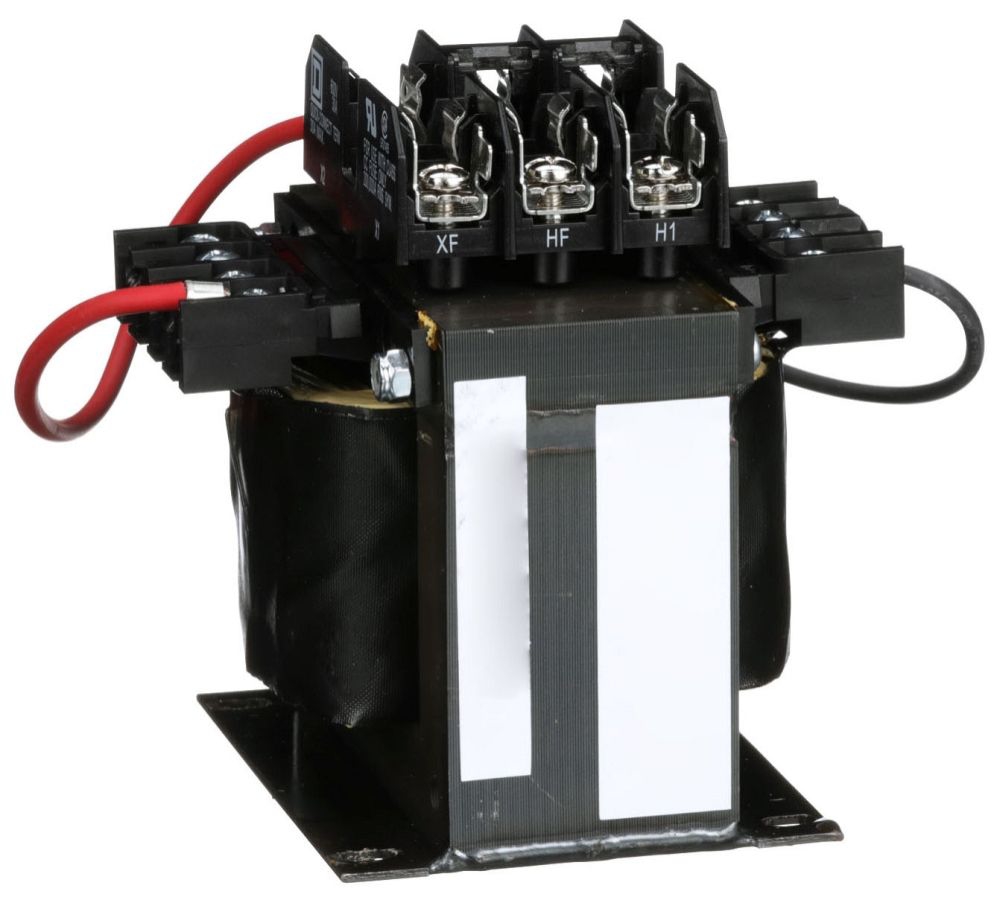

Industrial control transformer, Type TF, 1 phase, 350VA, 208V primary, 120V secondary, 50/60Hz

Page Loading...
SQUARE-D/SCHNEIDER
Industrial control transformer, Type TF, 1 phase, 350VA, 208V primary, 120V secondary, 50/60Hz

Mouse over image to zoom, click to enlarge

Description:
Industrial control transformer, Type TF, 1 phase, 350VA, 208V primary, 120V secondary, 50/60Hz

UPC:  78590131446

Part Number: 9070TF350D3

UNSPSC: 39121002

Status:  UNKNOWN

Your Price:  $1,011.00 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 9070TF350D3
Additional Information RoHS/REACH Compliant; Type TF; Number of Phase 1; Winding Material Copper
Applicable Standard EN 61558
Approval UL, CUL, CSA, CE, NOM
Base Price 0.0000
Brand Name TF
Catalog Number 9070TF350D3
Commerce Sector Construction Materials
Commodity Code 39210
Commodity Description Core & Coil Industrial Control Transformers
Connection SCREW CLAMP
CountryOfOrigin US
DDCATEGORY 2081
Depth Metric 130.0 mm
Directory CIS
Electrical Connection Screw clamp terminals
Enclosure OPEN
Families 2081
Family Description Core & Coil Industrial Control Transformers
Fingersafe Cover Compatibility FSC2
Frequency Rating 50/60 Hertz
Fuse Type 0.41 x 1.50 in CC top
Height Metric 130.0 mm
Image Location * Image
Industry ELX
Insulation 130 DEGREES C
Insulation Class 130
InvoiceDescription Industrial control transformer, Type TF, 1 phase, 350VA, 208V primary, 120V secondary, 50/60Hz;TRANSFORMER CONTROL
Item Number 31446
KVA Rating 0.35
Long Description INDUSTRIAL CONTROL TRANSFORMER, 4.5 INCH WIDTH X 4.74 INCH DEPTH X 5.13 INCH HEIGHT SIZE; 50/60 HERTZ FREQUENCY RATING; UL, CUL, CSA, CE, NOM APPROVAL; EN 61558 APPLICABLE STANDARD; 350 VOLT AMP POWER RATING; SCREW CLAMP TERMINAL TYPE
MSDS Form Number *
Material Copper winding
Model 9070
Mounting PANEL
Net Weight Metric 4.72 kg
Noun *
Phase 1-PHASE
Power Rating 350 Volt Amp
Primary To Secondary Voltage 208 V 120 V
Primary Voltage 208 Volt AC
Product Description Industrial control transformer, Type TF, 1 phase, 350VA, 208V primary, 120V secondary, 50/60Hz
Product Keywords WEBREADY
Product Name Power supply transformers
Product Or Component Type Industrial Control Transformer
Product Weight 10.41 lb
ProductLine SQD
Rated Power In Va Metric 350.0;350 VA UL;350 VA CSA;350 VA NOM;250 VA V.A
Secondary Voltage 120 Volt AC
Size 4.5 Inch Width x 4.74 Inch Depth x 5.13 Inch Height
Temperature Rating 80 DEGREES C
Temperature Rise 80 C;80 Deg C
Terminal Type Screw Clamp
UNSPSC 39121002
UPC 78590131446
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width Metric 114.0 mm
Winding COPPER

Resources

CatalogNumber 9070TF350D3
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
